Fog/Driving Lamp: Service and Repair

FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Partially remove the front fender liner.

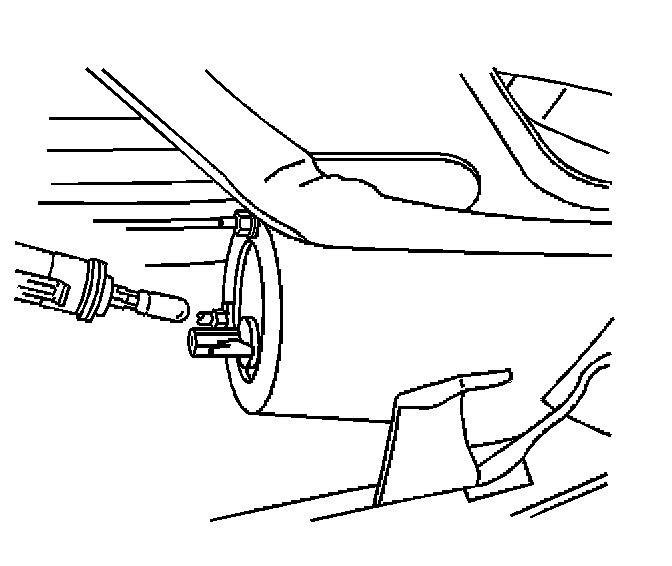

2. Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.

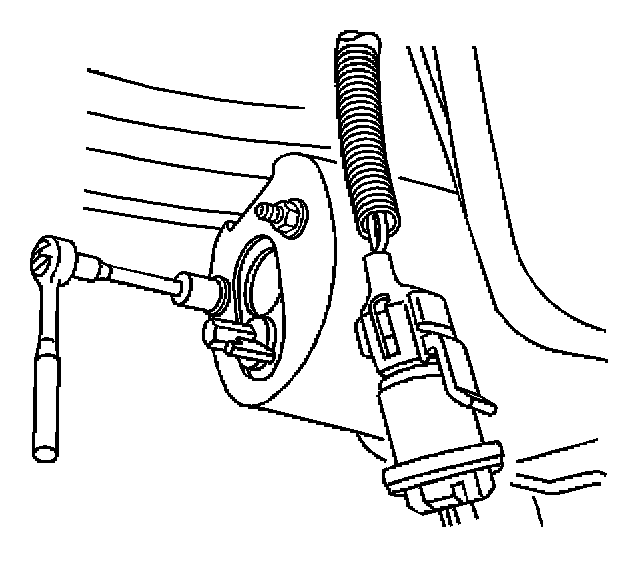

3. Remove the nuts from the fog lamp.

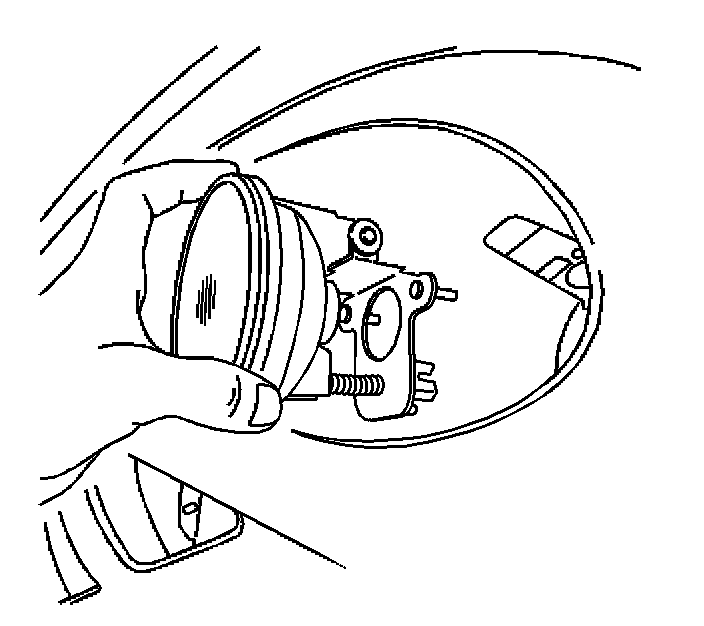

4. Remove the fog lamp from the front bumper fascia.

INSTALLATION PROCEDURE

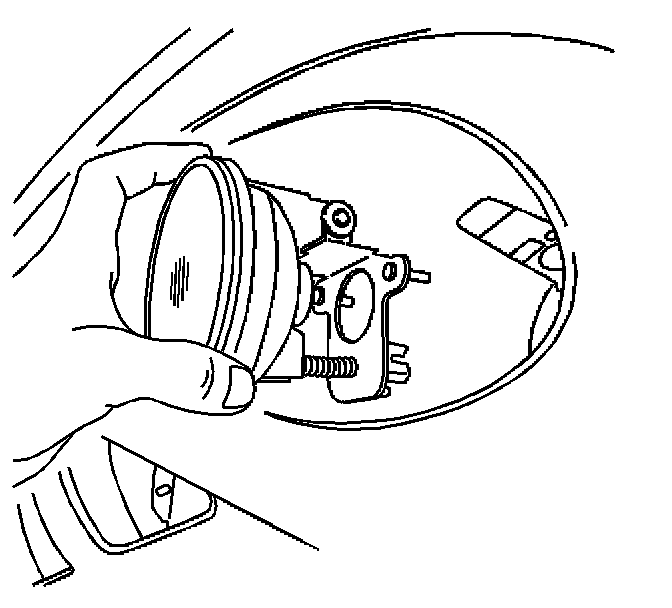

1. Position the fog lamp to the front bumper fascia.

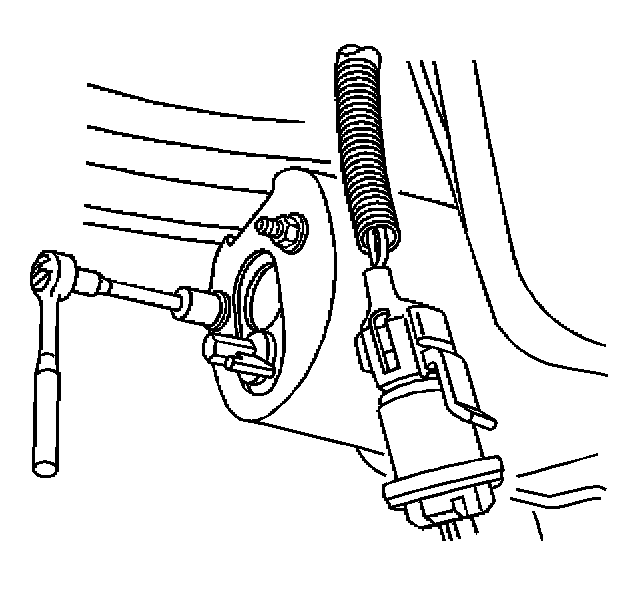

2. Install the fog lamp nuts to the fog lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the nuts to 2 N.m (18 lb in).

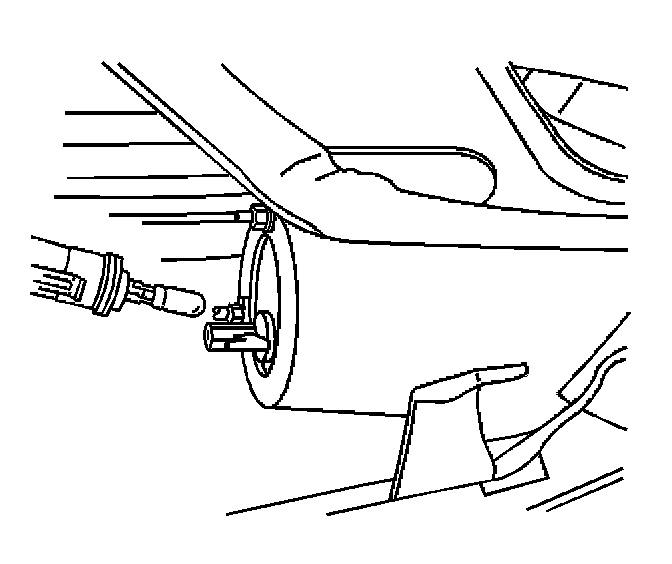

3. Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.
4. Install the front fender liner.
