Battery Tray Replacement

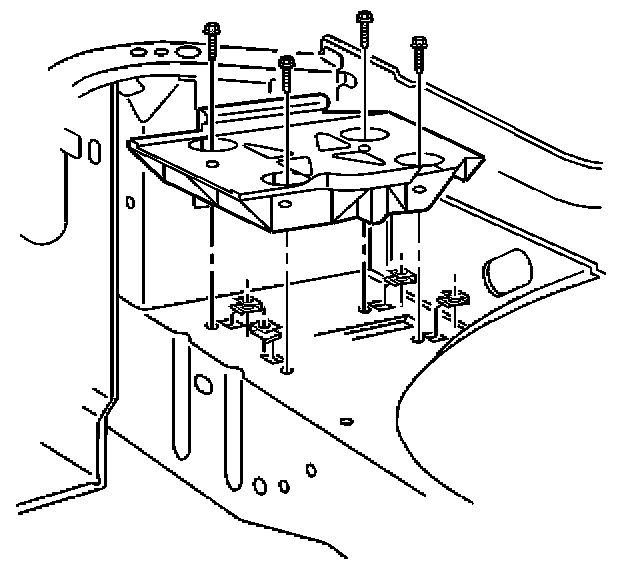

REMOVAL PROCEDURE 1.
Remove the battery.
2.
Remove the
battery tray bolts.
3.
Remove the
battery tray.

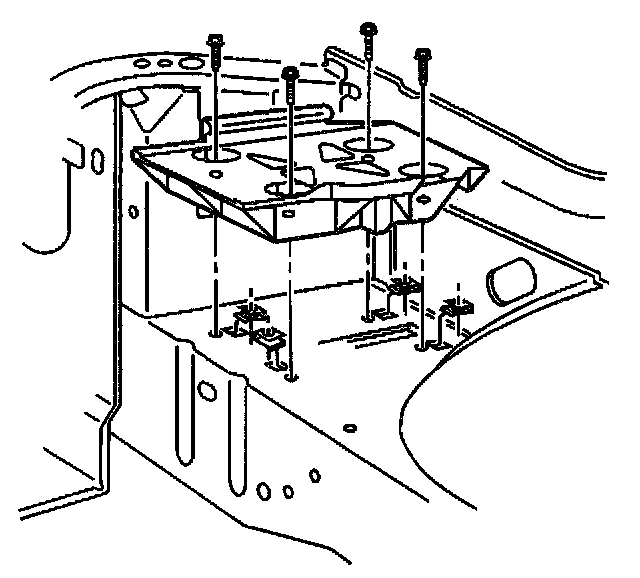

INSTALLATION PROCEDURE 1.
Install the
battery tray.
2.
Install the
battery tray bolts.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten Tighten the
battery tray bolts to
10 N.m (89 lb in).
3.
Install the battery.
