Hydraulic System: Specifications

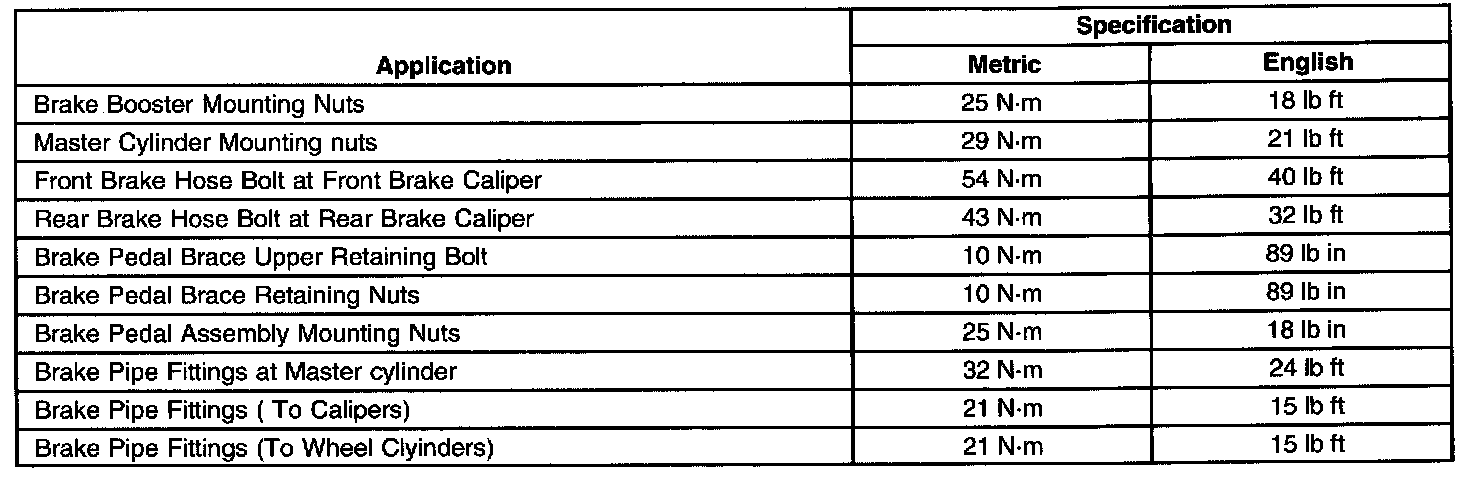

Hydraulic System / Fastener Tightening Specifications:

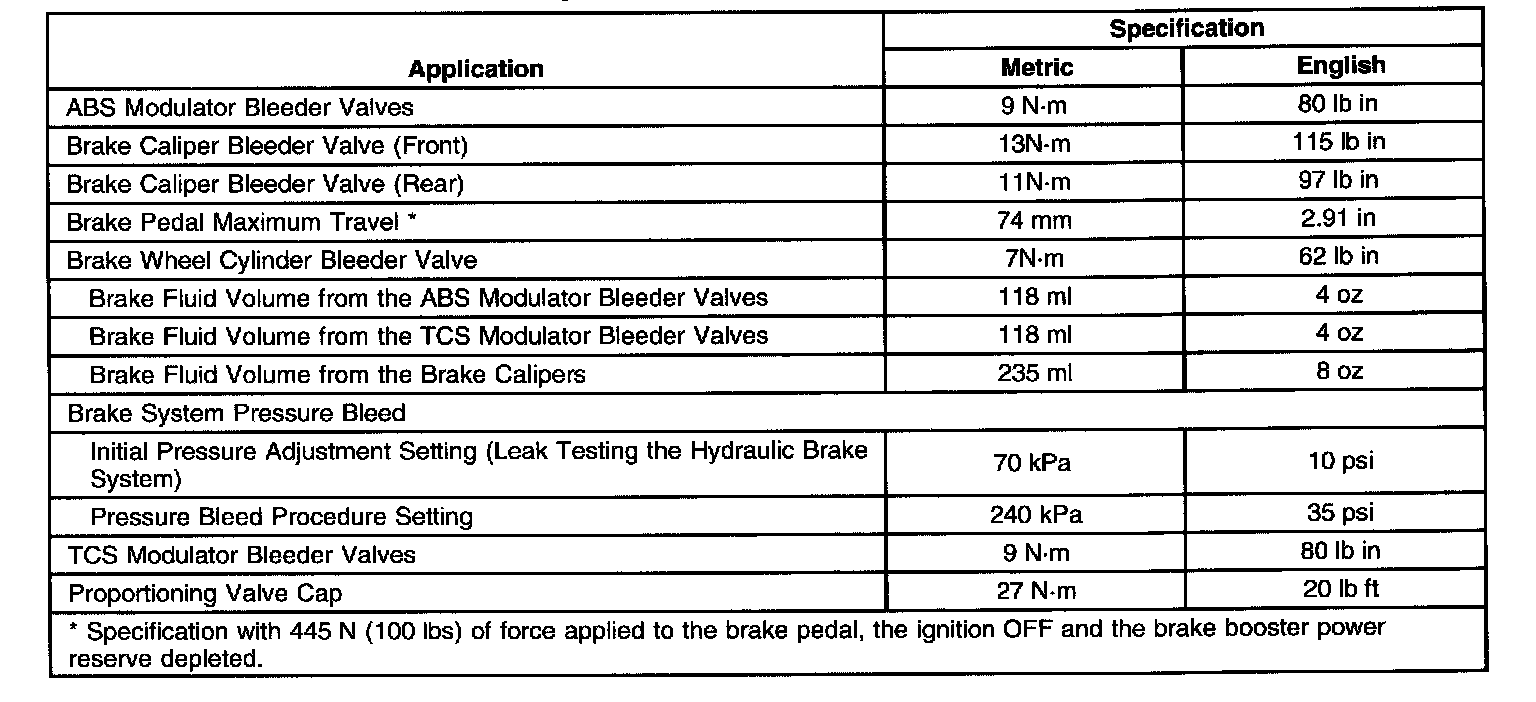

Hydraulic System / Brake Component Specifications:
