Seat Cushion Frame Replacement

SEAT CUSHION FRAME REPLACEMENT

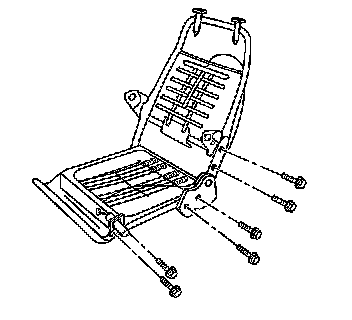

REMOVAL PROCEDURE
1. Remove the bucket seat from the vehicle.
2. Remove the seat cushion cover and pad.
3. Remove Lumbar support cable.




4. Remove the seat back hinge bolts from the right side of the seat frame.




5. Remove the seat back hinge bolts from the left side of the seat frame.
6. Remove the seat cushion frame from the seat back frame.

INSTALLATION PROCEDURE
1. Install the seat cushion frame to the seat back frame.




2. Install the seat back hinge bolts to the left side of the seat frame.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the seat back hinge bolts to the left side of the seat frame to 30 Nm (22 lb ft).




3. Install the bolts to the right side of the seat frame.

Tighten the seat back hinge bolts to the right side of the seat frame to 30 Nm (22 lb ft).

4. Install the lumbar support cable.
5. Install the seat cushion cover and pad.
6. Install the bucket seat in the vehicle.
