Exterior Lights Diagram 3

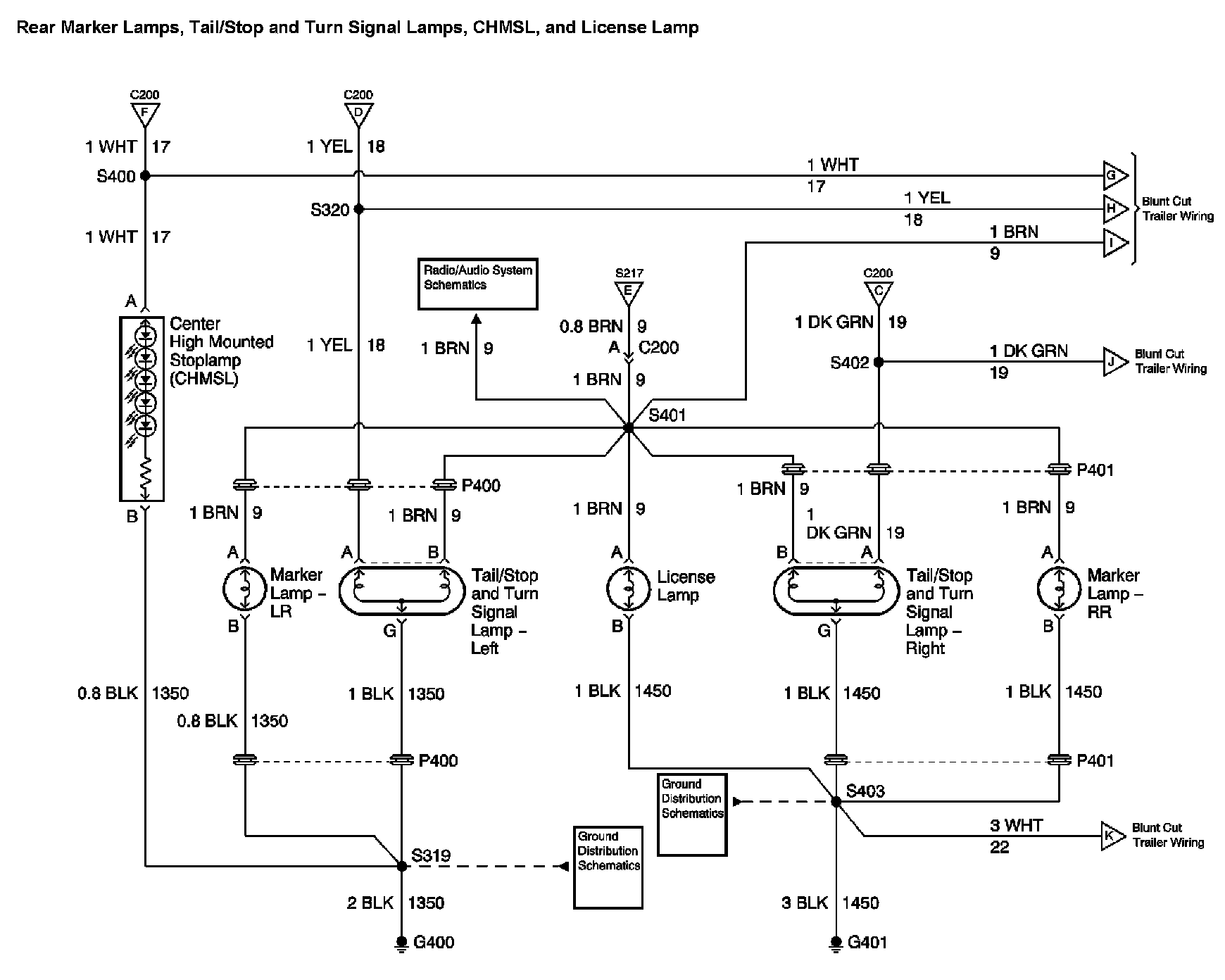

Exterior Lights Diagram 3 (Domestic):






Next Diagram Exterior Lights Diagram 4

previous Diagram Exterior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
