Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 2005 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Garage Door Opener Transmitter

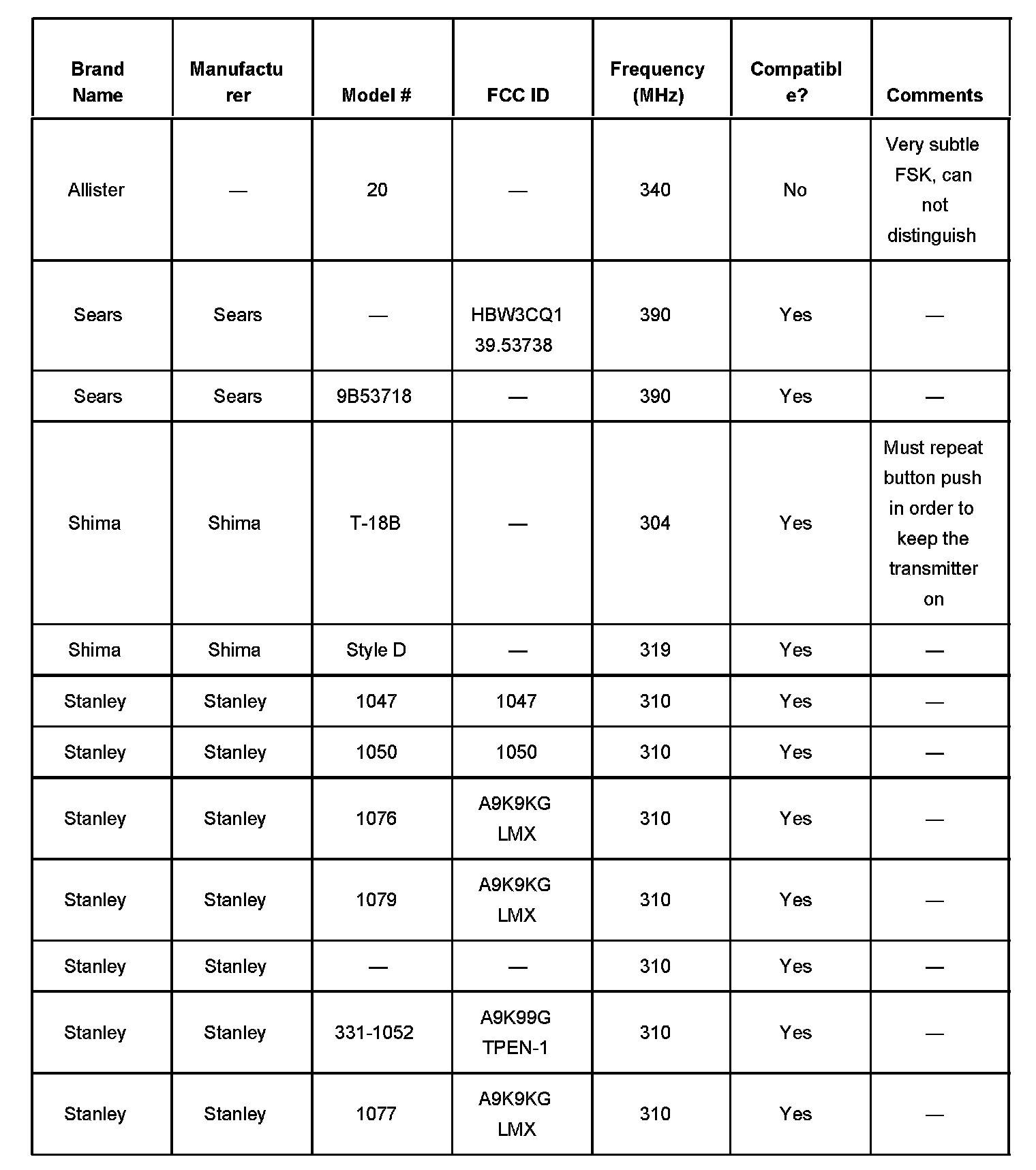

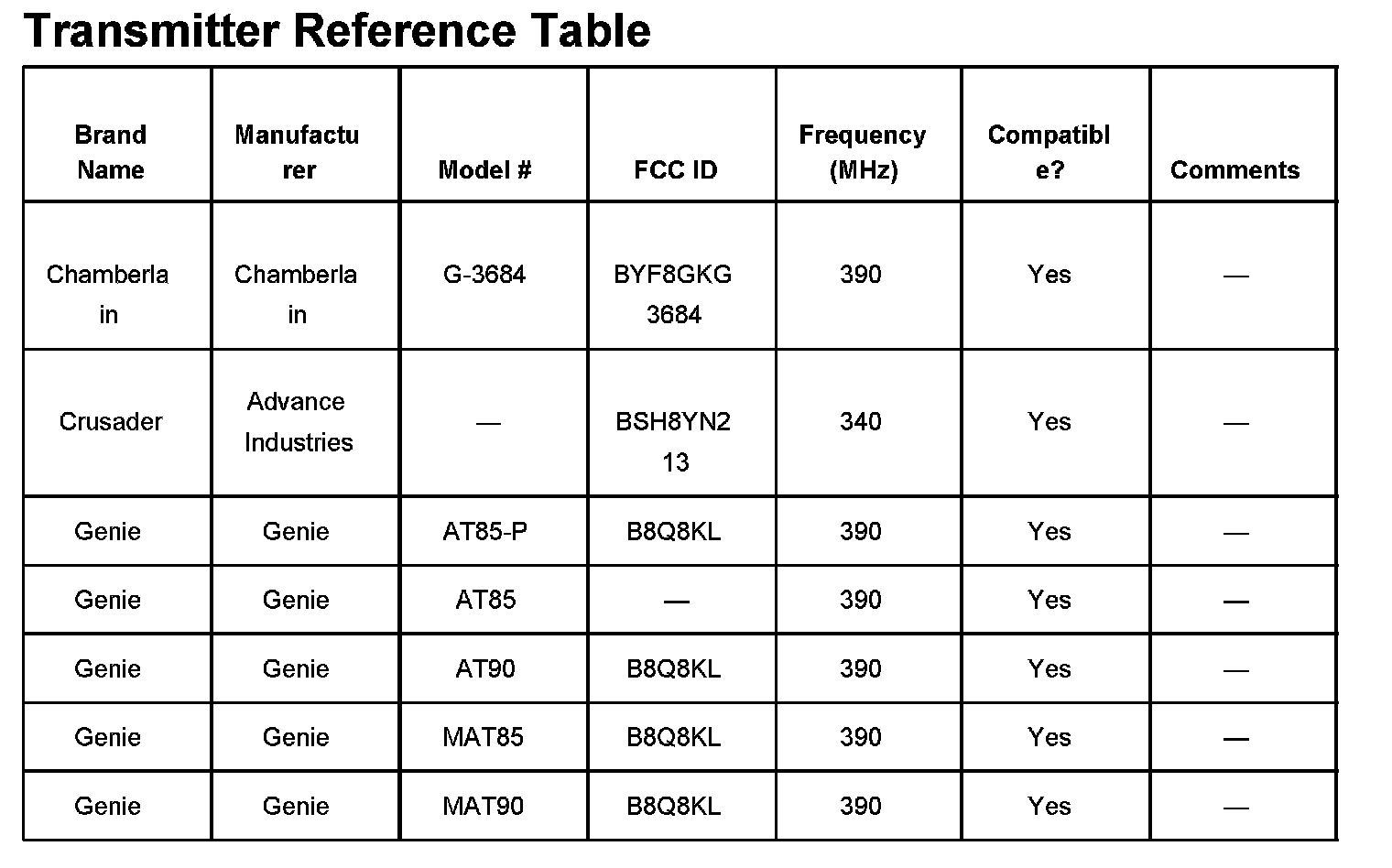

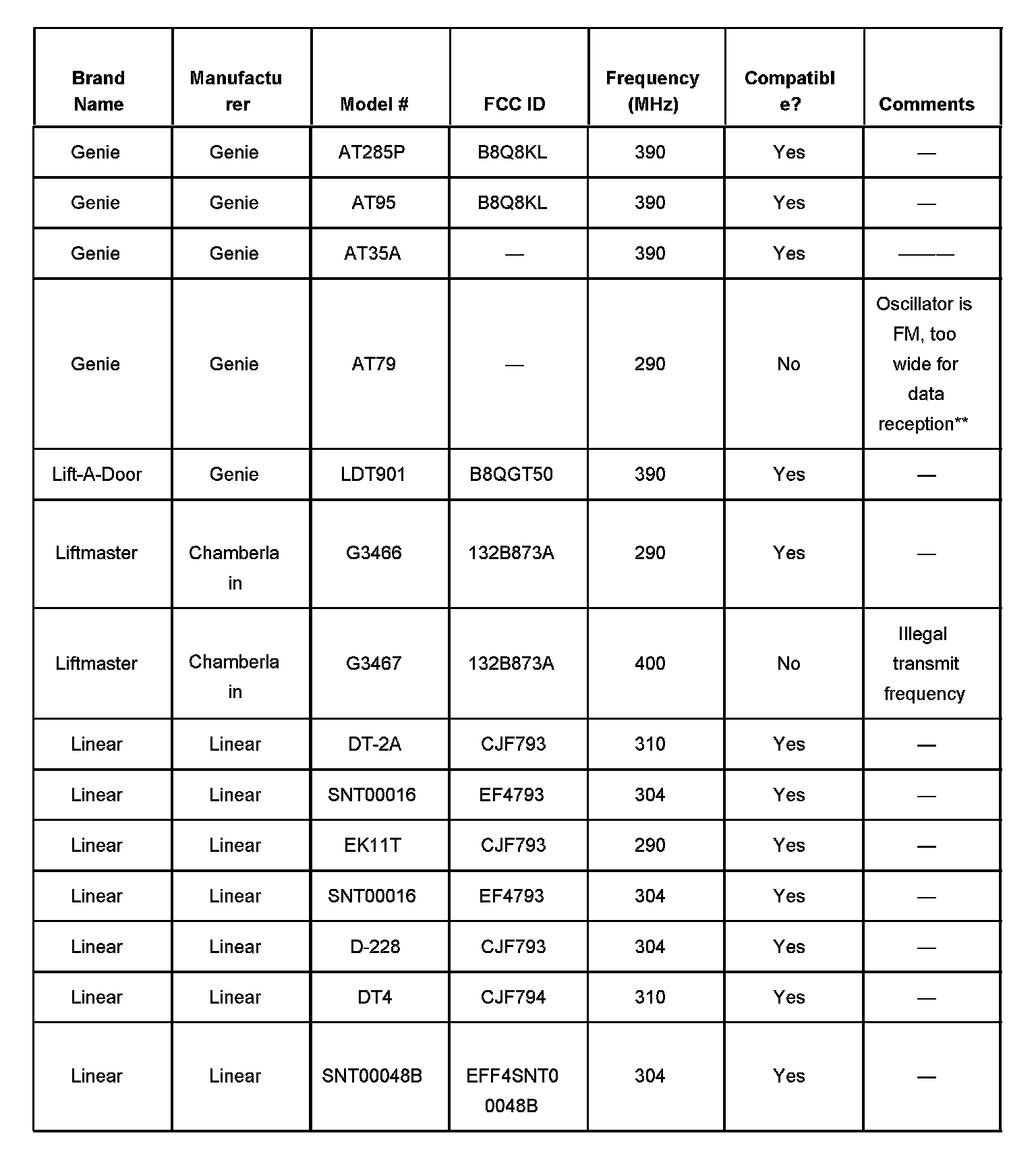

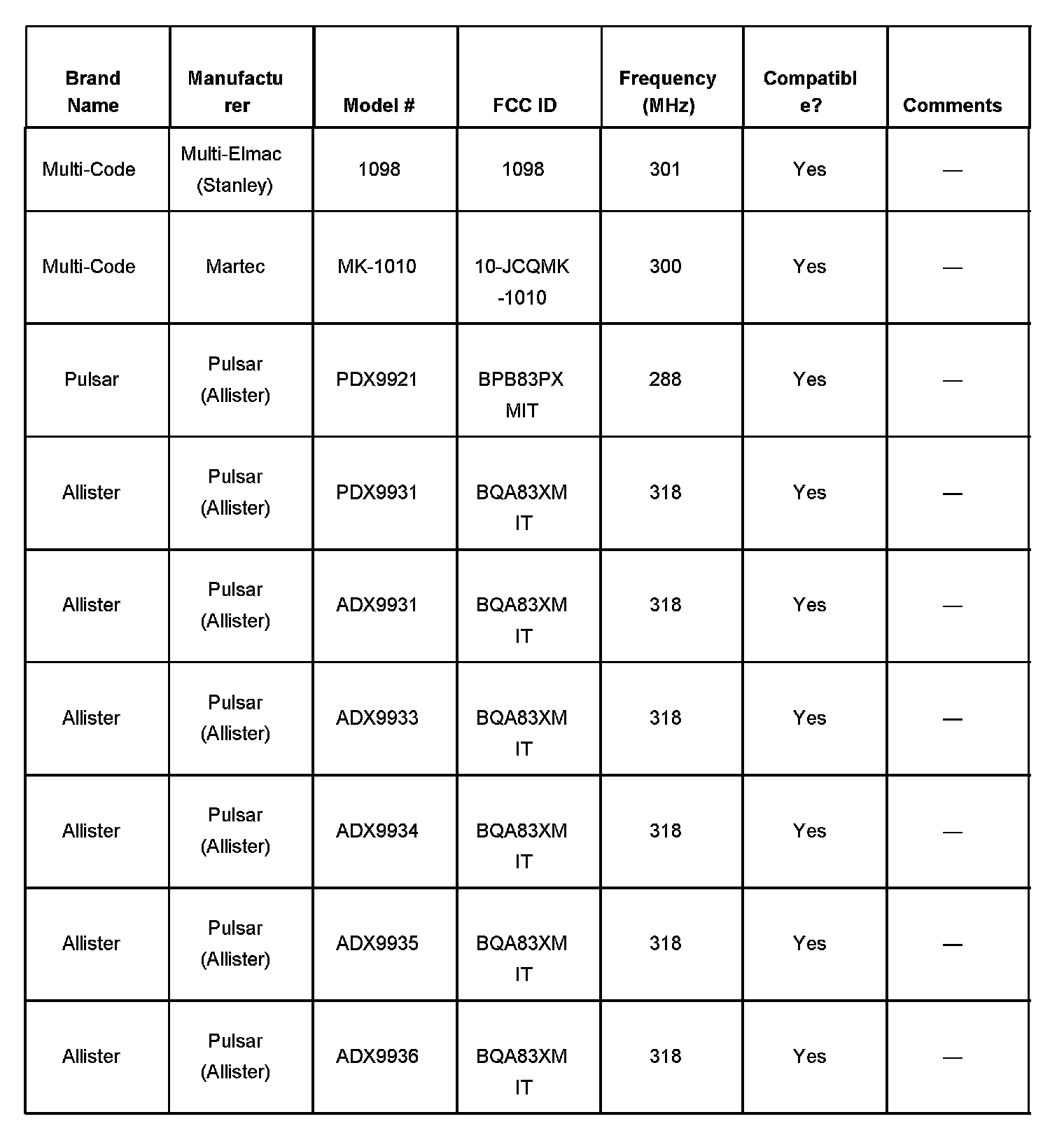

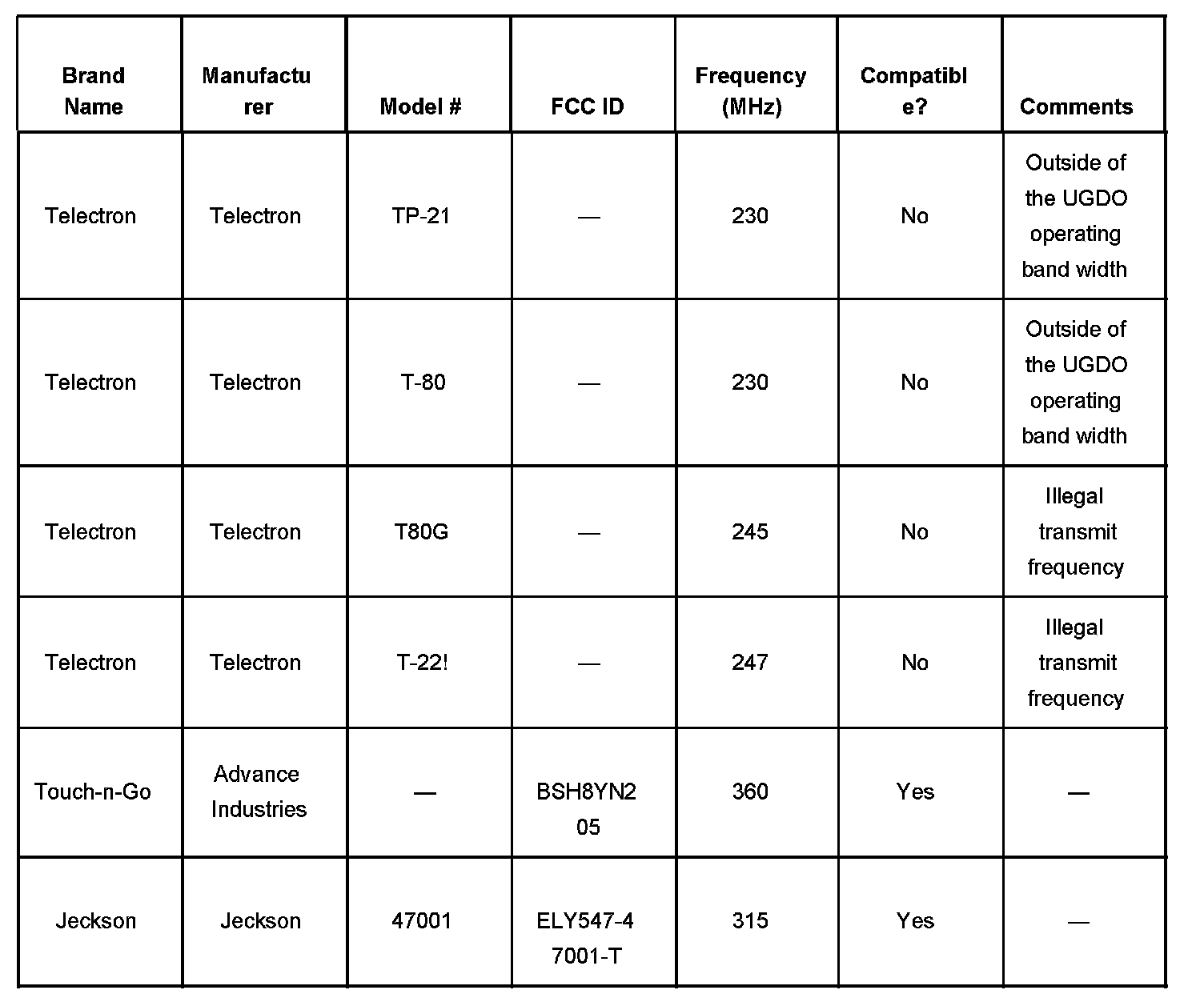

Garage Door Opener Transmitter




Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:
