Service AWD Indicator Inoperative


SERVICE AWD Indicator Inoperative

Circuit Description
The SERVICE AWD indicator is located in the instrument panel cluster (IPC). It receives ignitions voltage from a 10-amp gage fuse through the ignition 1 voltage circuit. The ignition 1 voltage circuit also supplies all of the gages with ignition voltage. The transfer case shift control module controls the SERVICE AWD indicator by sending the IPC a Class 2 message. This lamp may be controlled with the scan tool using the IPC output controls.

Test Description

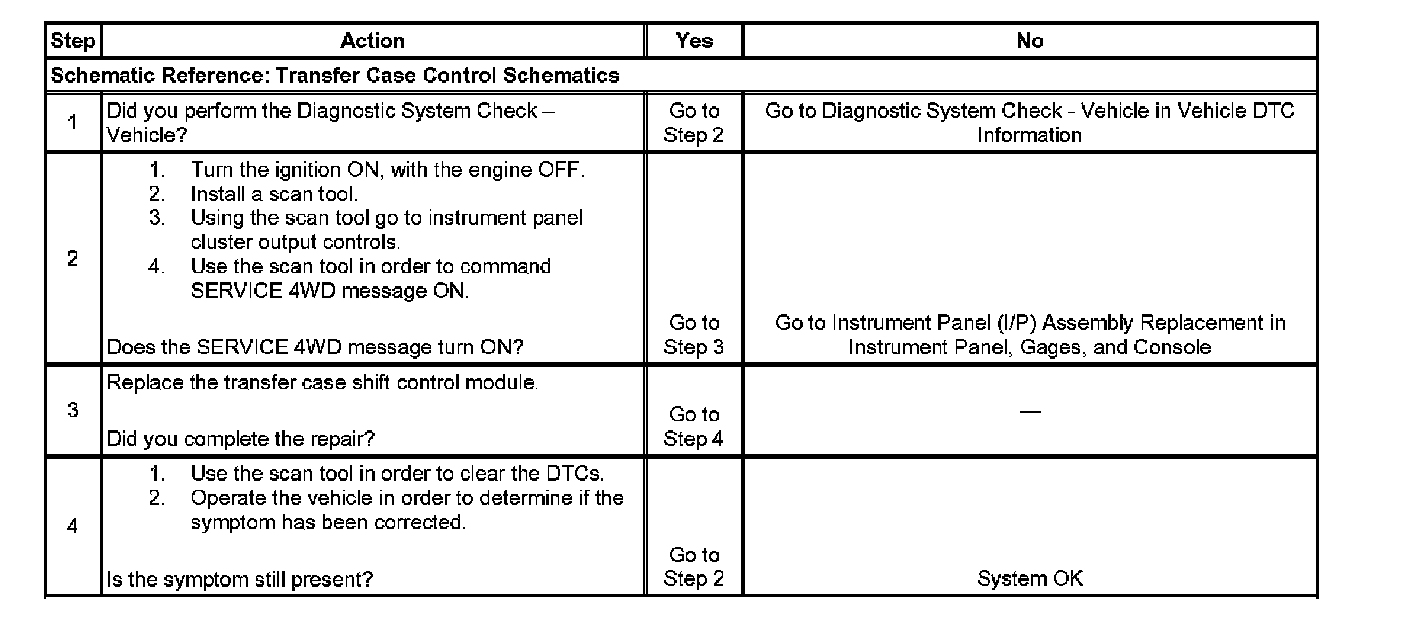

The number below refers to the step number on the diagnostic table.
2. This step determines whether the failure is the result of a faulty transfer case shift control module or the IPC.
