Home >> Chevrolet >> 2005 >> Avalanche 1500 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls >> 4L60-E/4L65-E Automatic Transmission

4L60-E/4L65-E Automatic Transmission

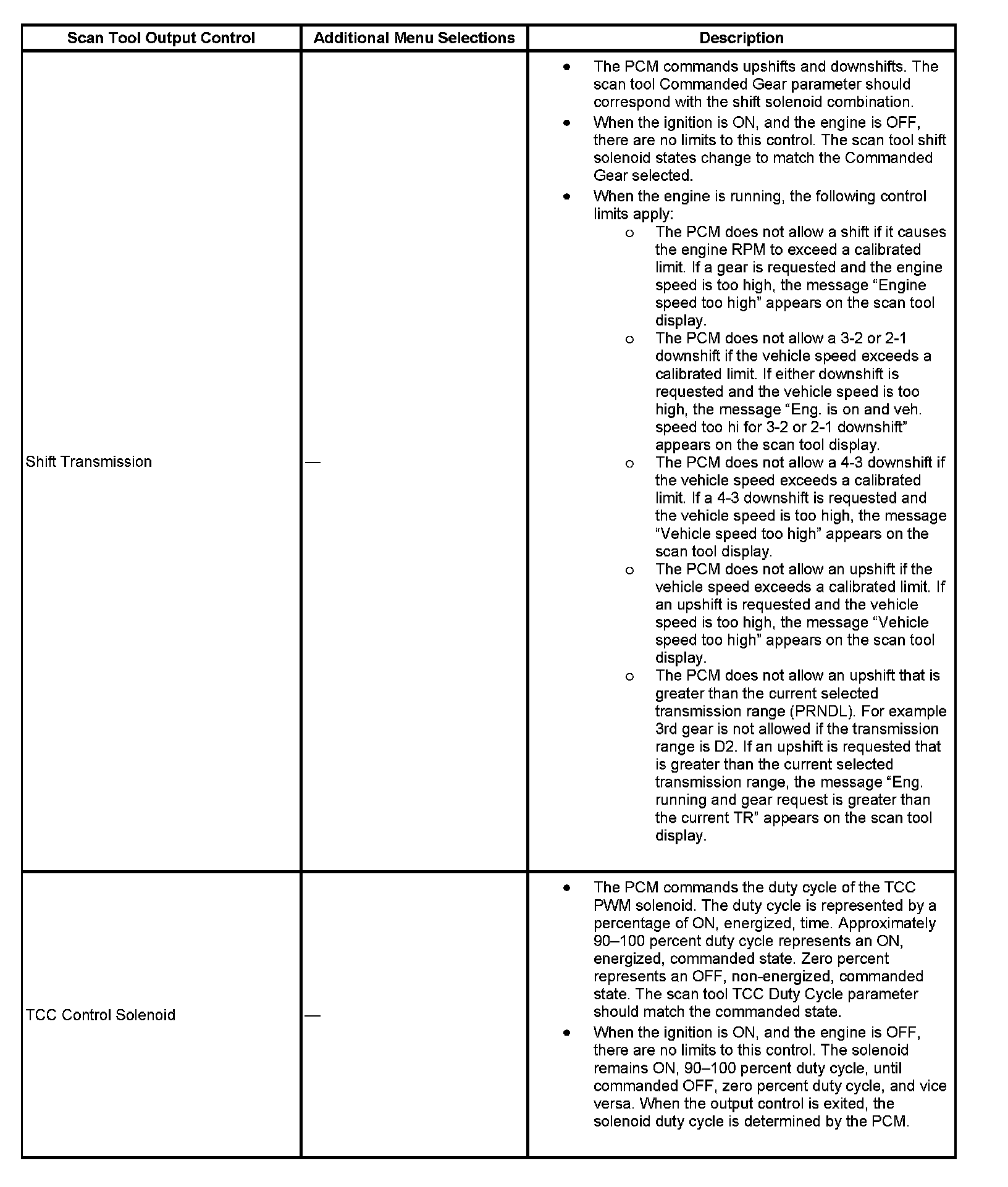

Scan Tool Output Controls
