Instrument Panel Fuse Block

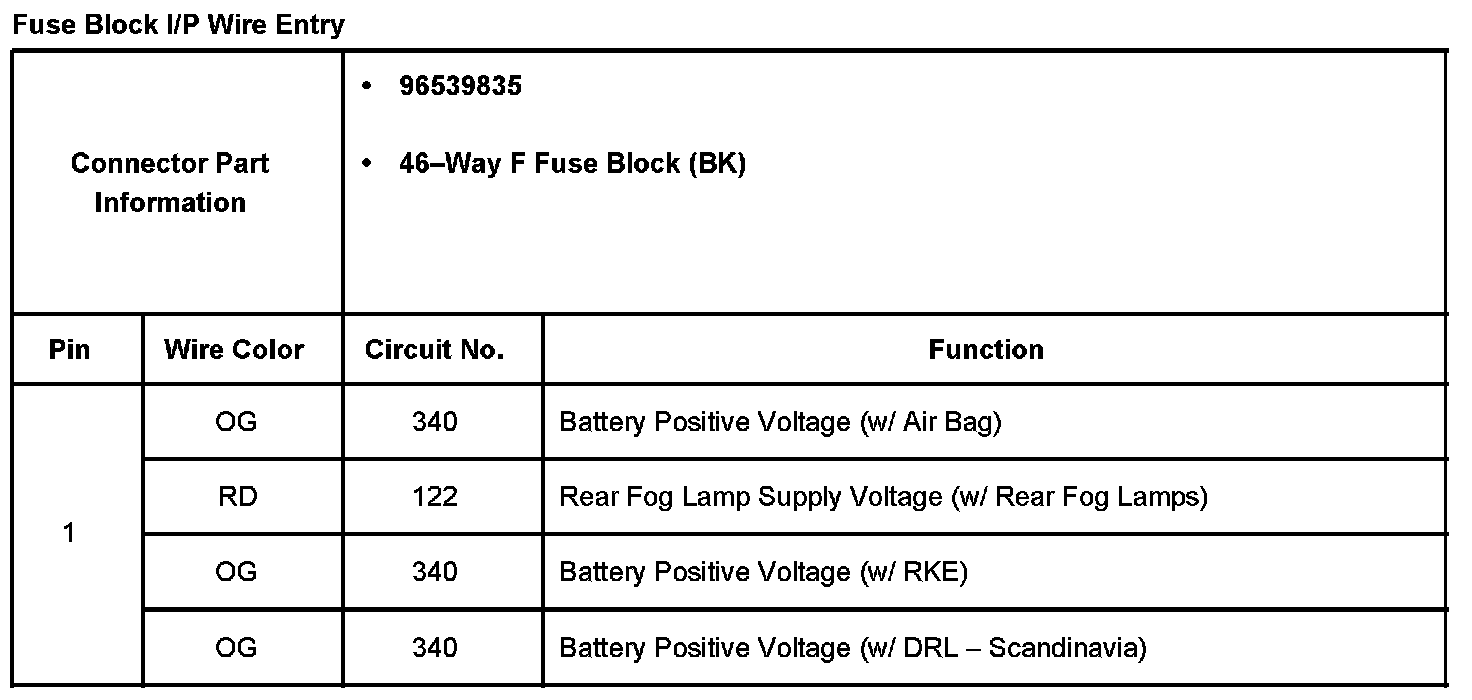

Fuse Block I/P Wire Entry, Part 1:

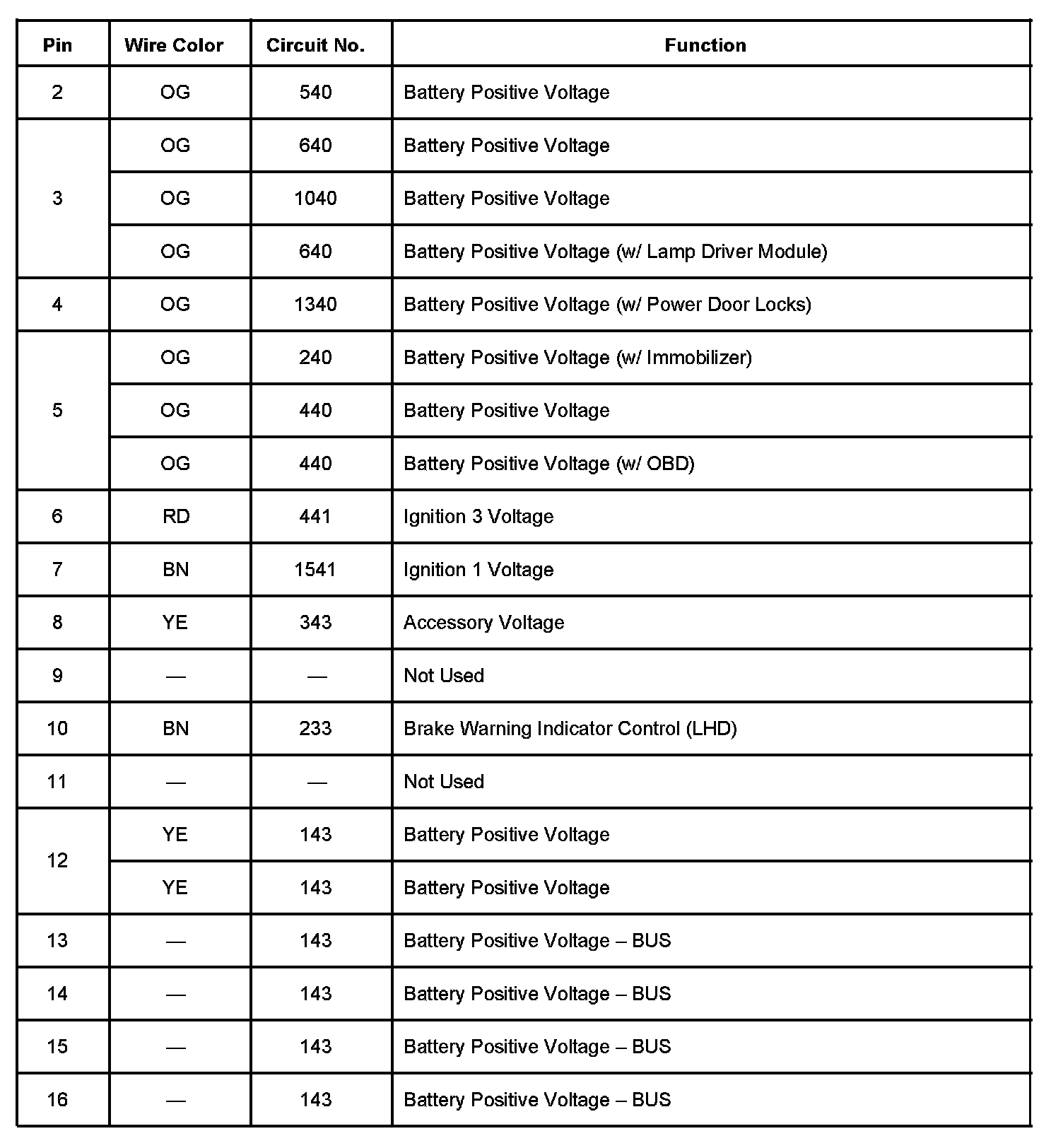

Fuse Block I/P Wire Entry, Part 2:

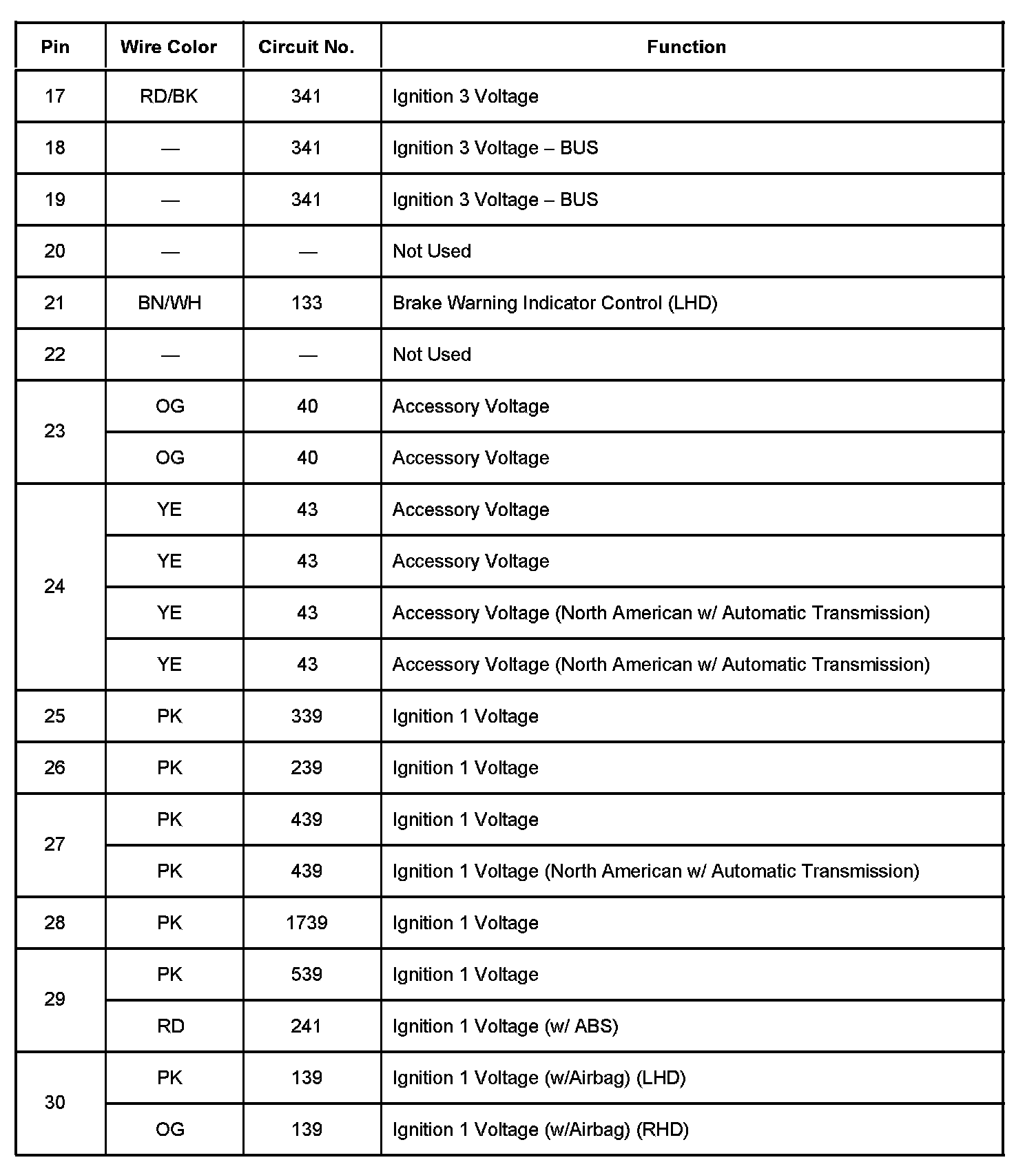

Fuse Block I/P Wire Entry, Part 3:

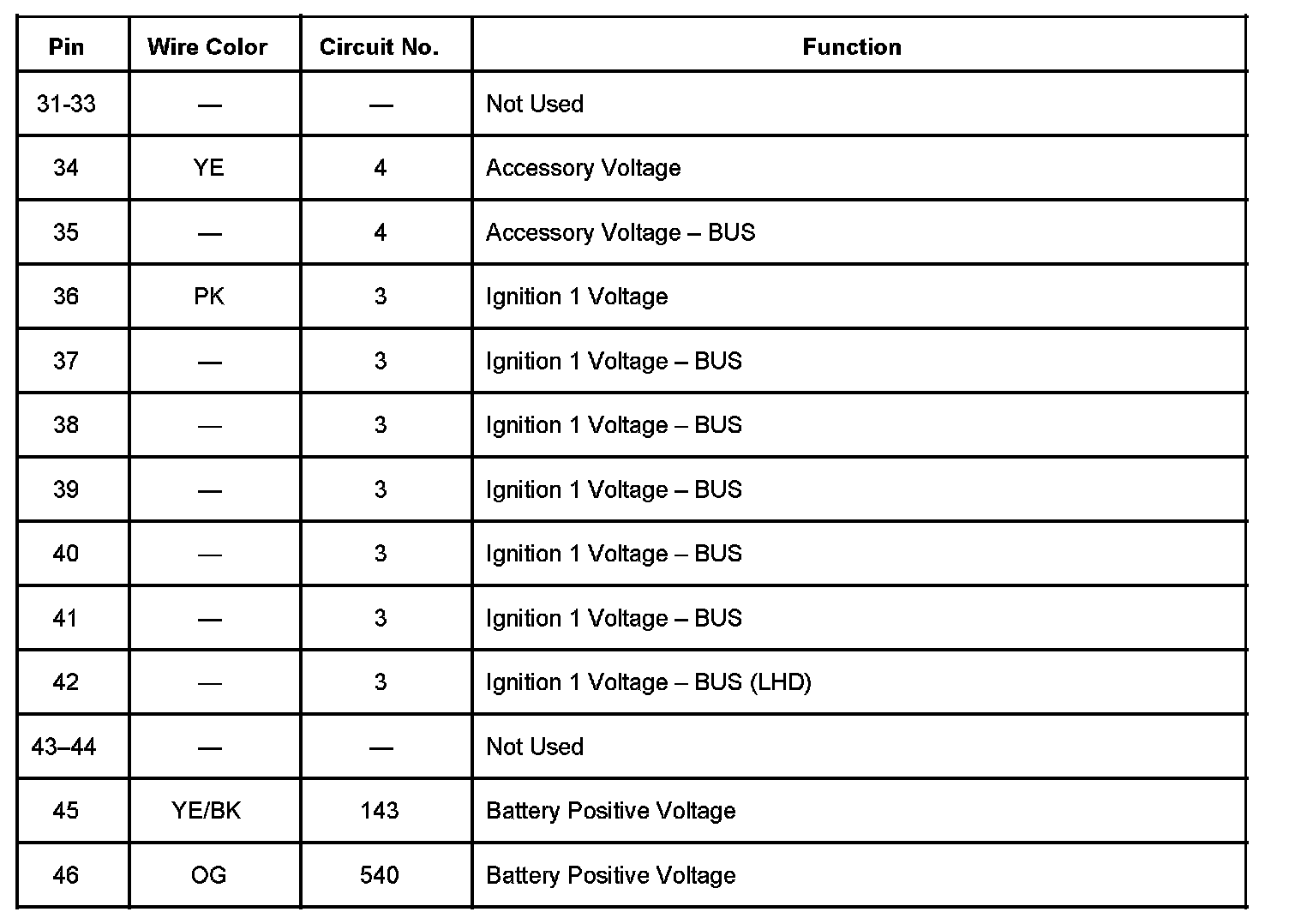

Fuse Block I/P Wire Entry, Part 4:
