COMPRESSOR CONTROL VALVE ASSEMBLY INSTALL

TOOLS REQUIRED
J 5403 Snap Ring Pliers

1. Install the control valve assembly.

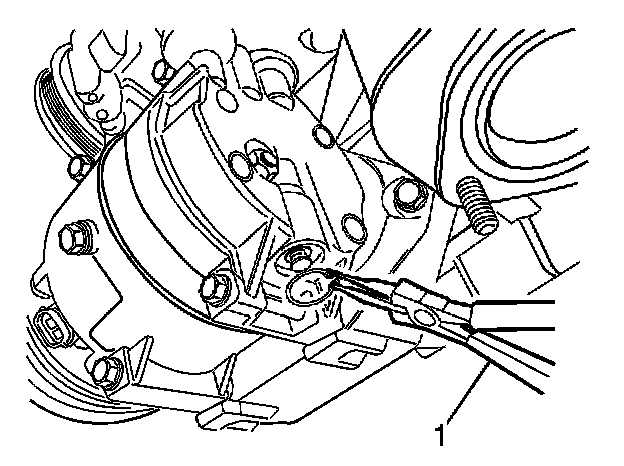

2. Install the control valve retaining ring using J 5403 (1).
3. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.
