Lamp Control Module: Service and Repair



LAMP CONTROL MODULE REPLACEMENT

REPLACEMENT PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the instrument panel low cover.

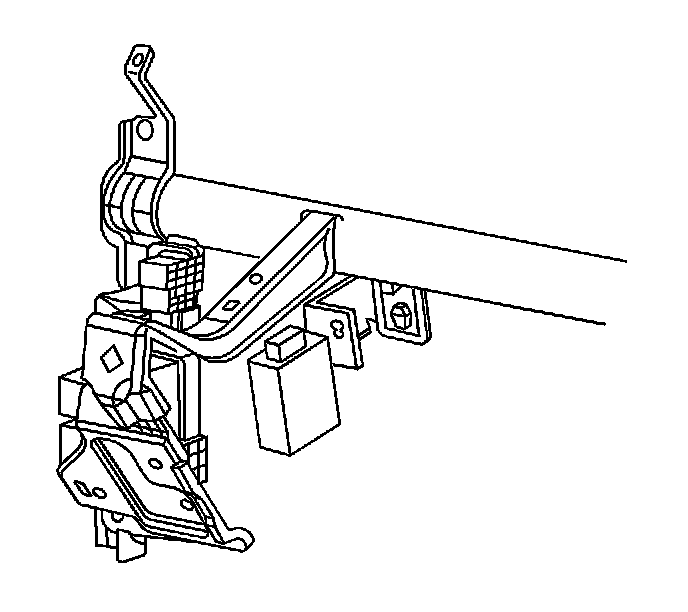

3. Remove the screws and the lamp control module.
4. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Install the lamp control module with the screws.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Connect the electrical connector.
3. Install the instrument panel low cover.
4. Connect the negative battery cable.
