Rough Road Sensor: Service and Repair

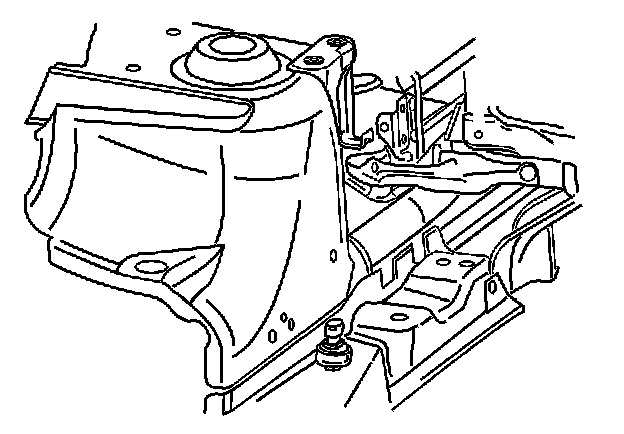

ROUGH ROAD SENSOR REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Disconnect the rough road sensor electrical connector and remove the rough road sensor.

INSTALLATION PROCEDURE

1. Install the rough road sensor and connect the electrical connector.
2. Connect the negative battery cable.
