Electronic Brake Control Module: Locations

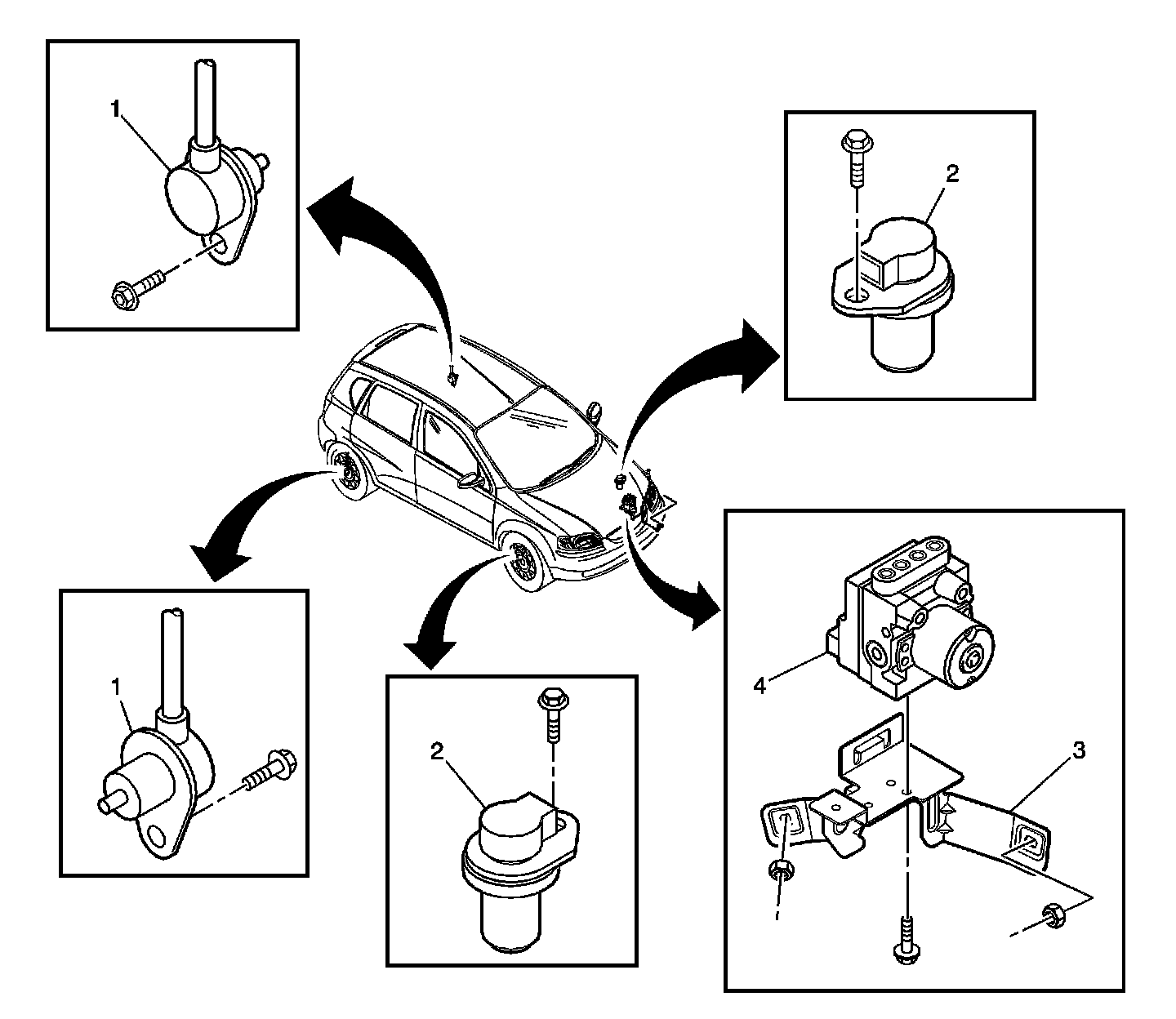

ABS Component Views





1 - Rear Wheel Speed Sensor - Right and Left
2 - Front Wheel Speed Sensor - Right and Left
3 - Mounting Bracket
4 - Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve
