Disconnect/Connect Procedure

BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE

REMOVAL PROCEDURE
1. Turn off all the lamps and accessories.
2. Turn the ignition OFF.

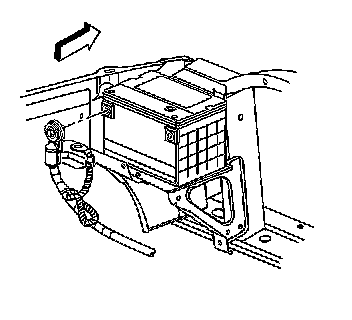

3. Remove the battery ground negative cable and bolt from the battery 4.3L.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

INSTALLATION PROCEDURE






CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

Install the battery ground negative cable and bolt to the battery.

Tighten the battery terminal bolt to 15 N.m (11 lb ft).
