Head Restraint Guide Replacement



HEAD RESTRAINT GUIDE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the seat back cover and pad.

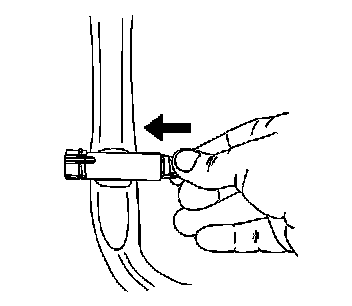

2. Squeeze the bottom of the head restraint guide together. Push the guide upwards through the seat back frame.
3. Remove the guide from the seat back frame.

INSTALLATION PROCEDURE

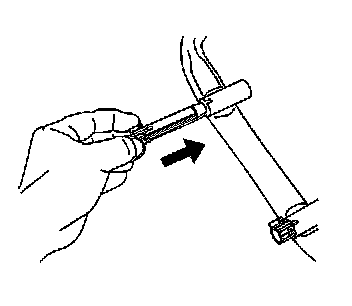

1. Install the guide through the opening in the seat back frame. Press inward on the guide until fully seated into the seat back frame.
2. Install the seat back cover and pad.
3. Check the head restraint for proper operation.
