Marker Lamp: Service and Repair



MARKER LAMP REPLACEMENT - SIDE

REMOVAL PROCEDURE

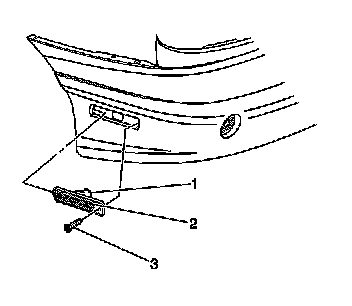

1. Remove the screw (3) from the side marker lamp (2).
2. Remove the side marker lamp (2) from the front and/or rear bumper fascia.
3. Remove the bulb/socket from the side marker lamp.
4. Remove the bulb from the socket,

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Install the bulb/socket to the side marker lamp (2).
3. Install the side marker lamp (2) to the front and/or rear bumper fascia.
4. Install the screw (3) to the side marker lamp (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the side marker lamp screw to 2 N.m (18 lb in).
