Shift Interlock: Locations

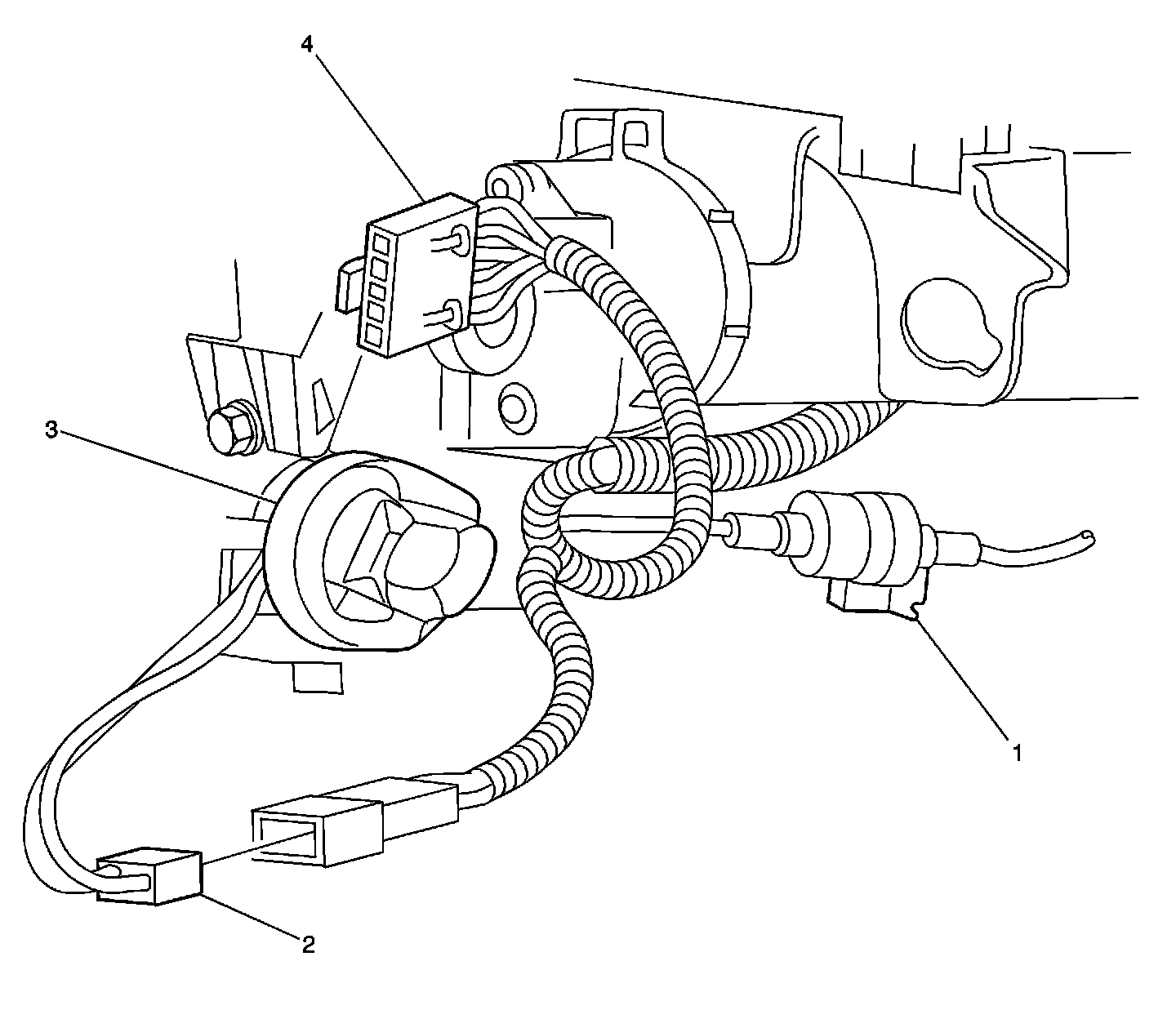

Automatic Transmission Shift Lock Control Component Views

Under Steering Column

1 - A/T Shift Lock Solenoid
2 - Passlock(tm) Lock Sensor Connector
3 - Ignition Key Cylinder
4 - Windshield Wiper Lead
