Clutch: Service and Repair



Clutch Drive Plate and Clutch Driven Plate

^ Tools Required
- J 29074-A Clutch Alignment Arbor

Removal Procedure
1. Remove the transmission.





2. Remove the clutch cover bolts one turn at a time, until spring pressure is relieved.





3. Remove the clutch cover and the clutch disc.

Installation Procedure





1. Align the Heavy Side of the flywheel assembly (stamped with an X), with the clutch cover Light Side (marked with paint).

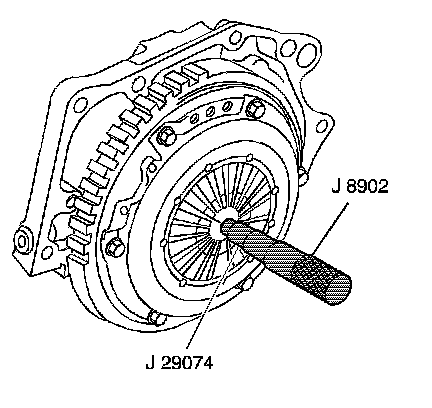

2. Install the J 29074-A in order to support the clutch cover to the flywheel assembly.





Notice: Refer to Fastener Notice in Service Precautions.

3. Install the clutch cover to flywheel bolts.
A. Follow the tightening sequence. Tighten the bolts to 24 Nm (18 ft. lbs.).
B. Tighten the bolts to specifications.
4. Remove the J 29074-A .
5. Lubricate the inside diameter of the bearing with GM P/N 12345777, or equivalent.
6. Install the transmission.
7. Bleed the hydraulic system.
8. Connect the negative battery cable.
