Wiper Motor Cover Replacement



WIPER MOTOR COVER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the air inlet grille panel.

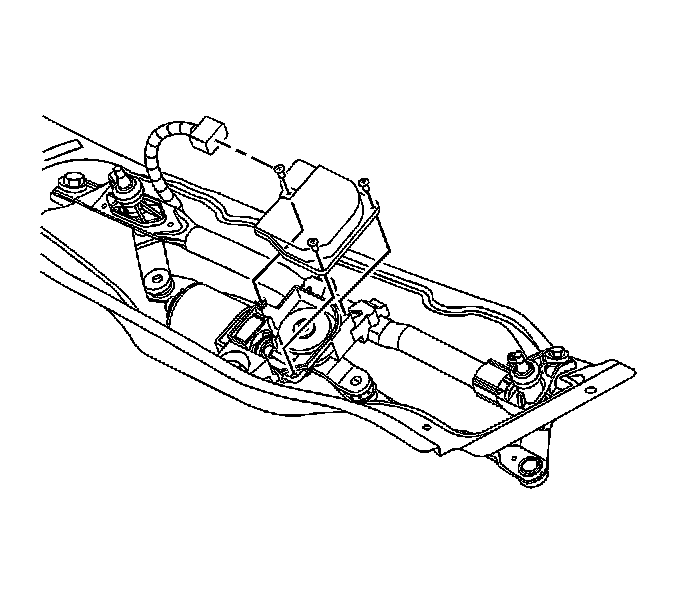

2. Remove the wiper motor cover screws.
3. Remove the wiper motor cover from the wiper motor.
4. Disconnect the wiper motor electrical connector.

INSTALLATION PROCEDURE

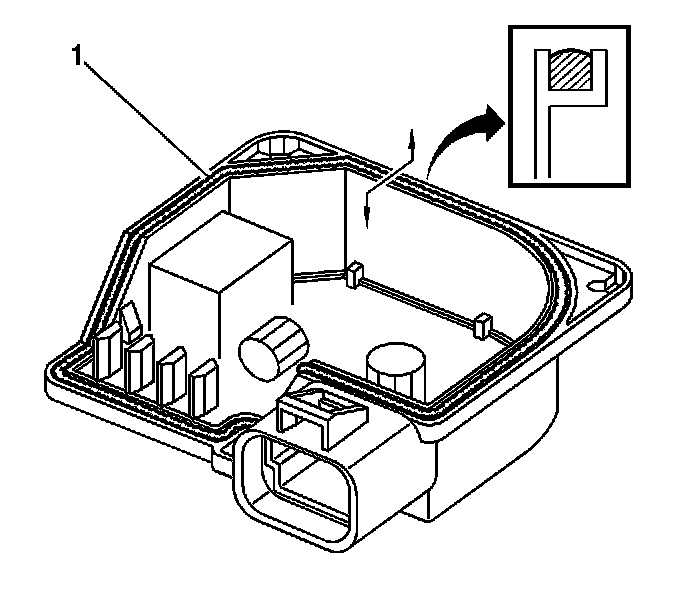

1. Apply RTV Sealer in the seal channel of the wiper motor cover.




2. Position the wiper motor cover onto the wiper motor.
3. Connect the wiper motor electrical connector.
4. Install the wiper motor cover screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).

5. Install the air inlet grille panel.
6. Inspect the wipers for proper operation.
