Scan Tool Data List



SCAN TOOL DATA LIST

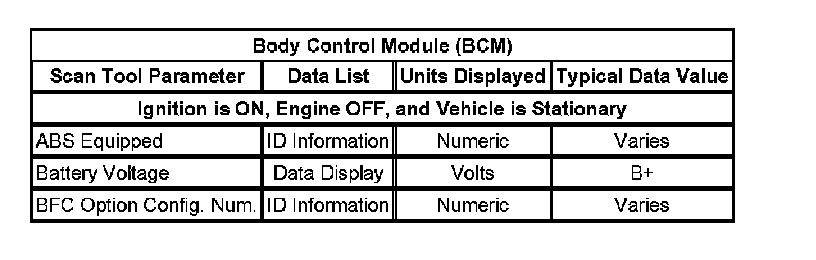

Body Control Module (BCM)

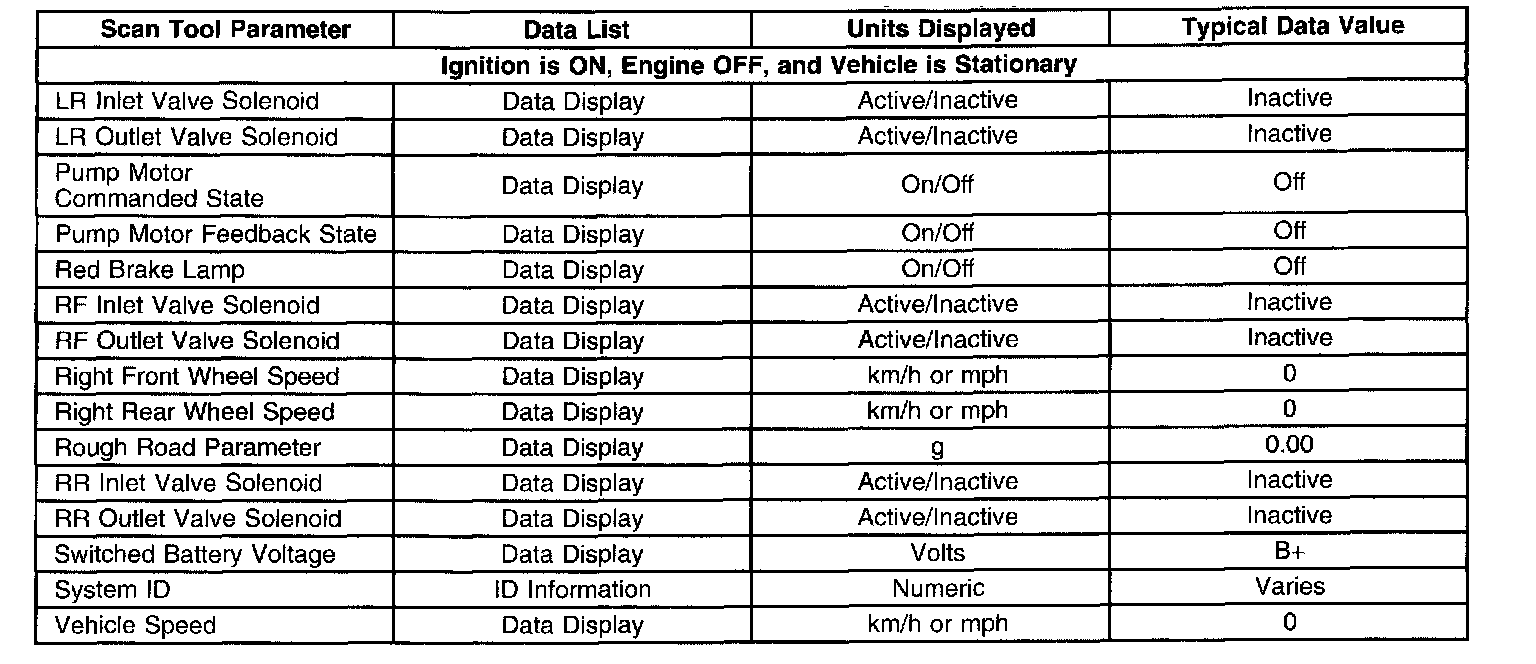

Electronic Brake Control Module (EBCM)
