Air Bag

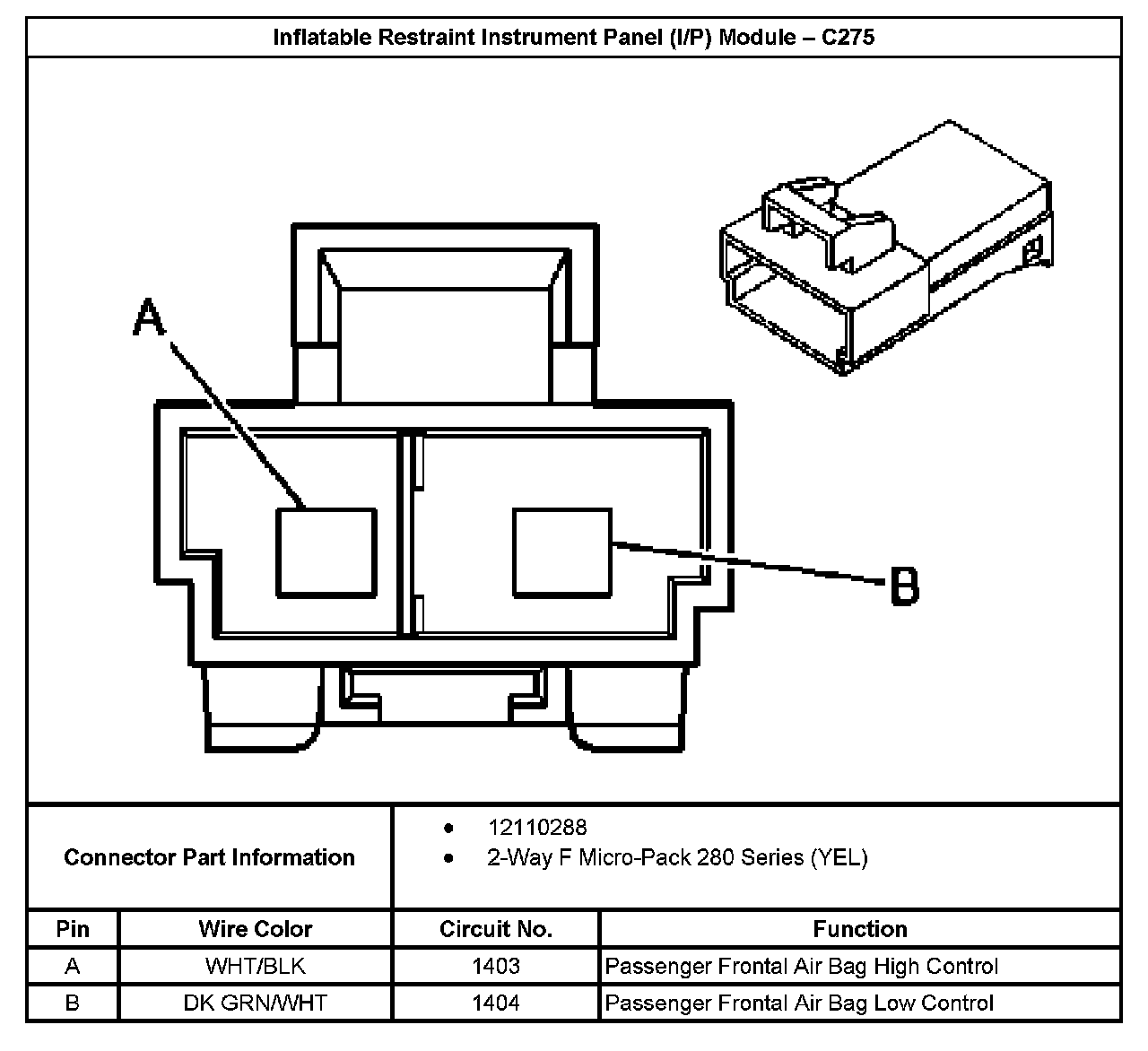

Inflatable Restraint Instrument Panel (I/P) Module - C275:

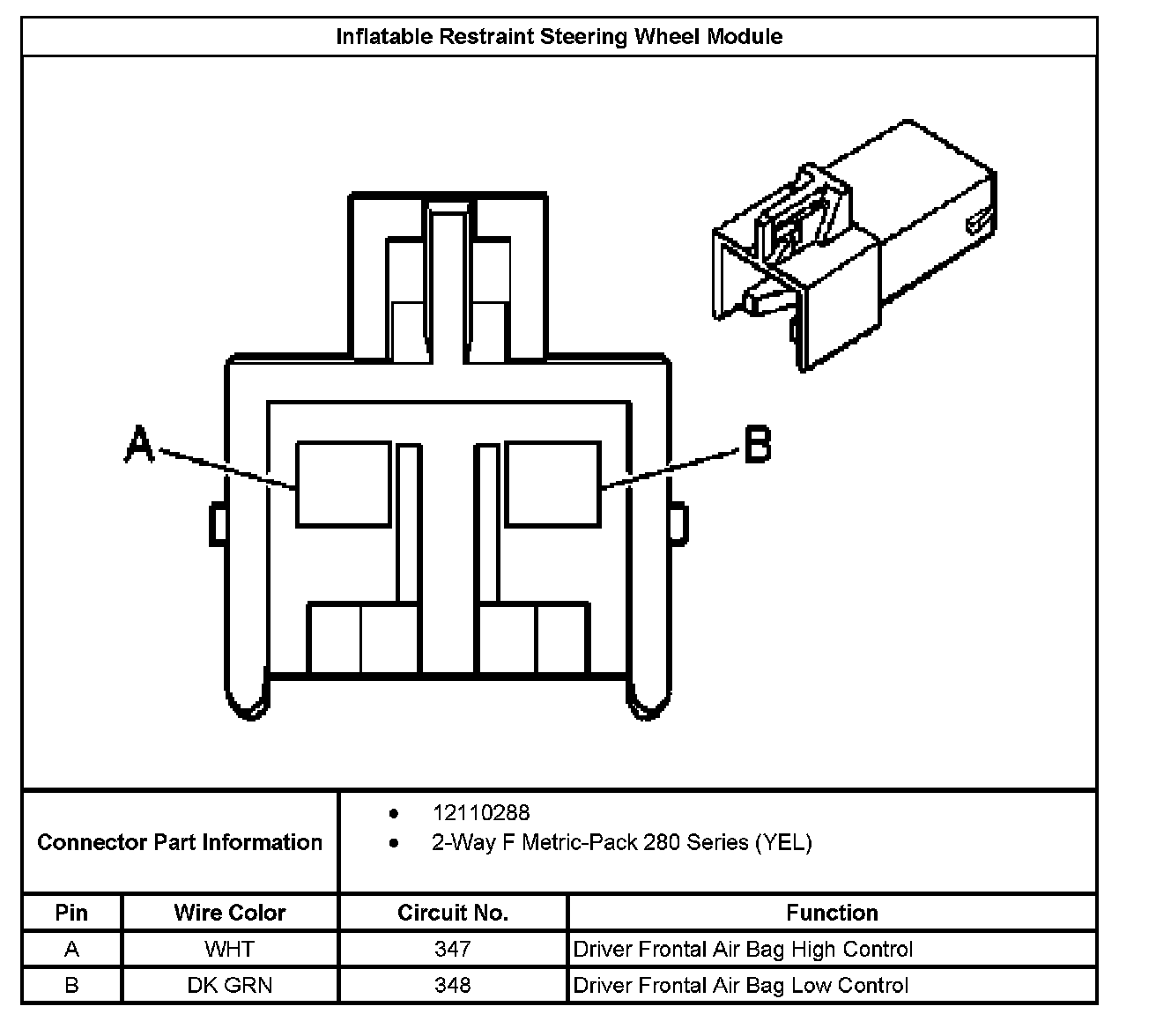

Inflatable Restraint Steering Wheel Module:
