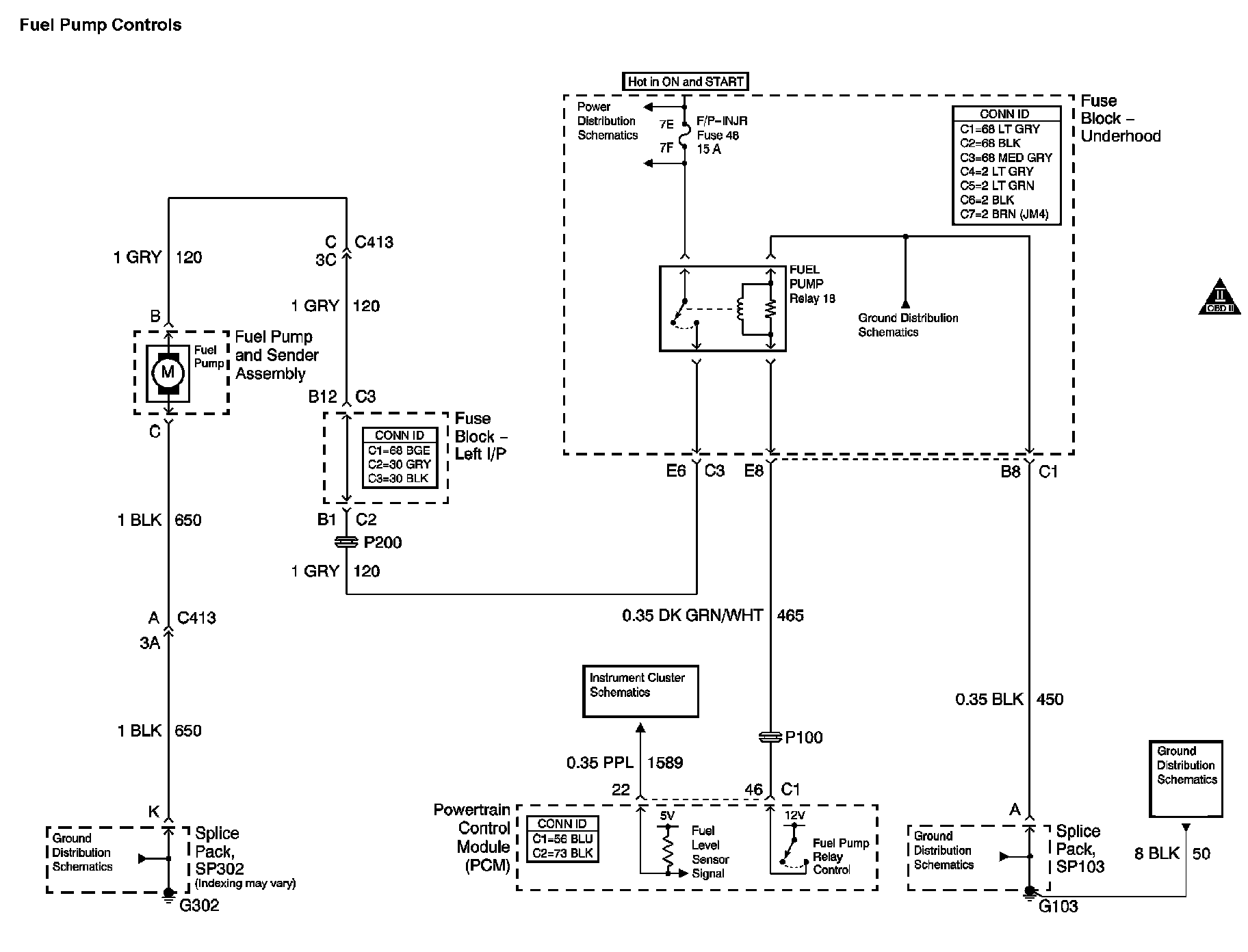

Engine Controls Diagram 6

Engine Controls Diagram 6:

Next Diagram Engine Controls Diagram 7

Previous Diagram Engine Controls Diagram 5

Locations : The locations for the Connectors, Grounds, Splices, and Grommets shown within the diagrams can be found via the numbers at Vehicle Locations. Locations
