Home
>>
Chevrolet
>>
2005
>>
Colorado 2WD L4-2.8L VIN 8
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Chassis Views
Chassis Views

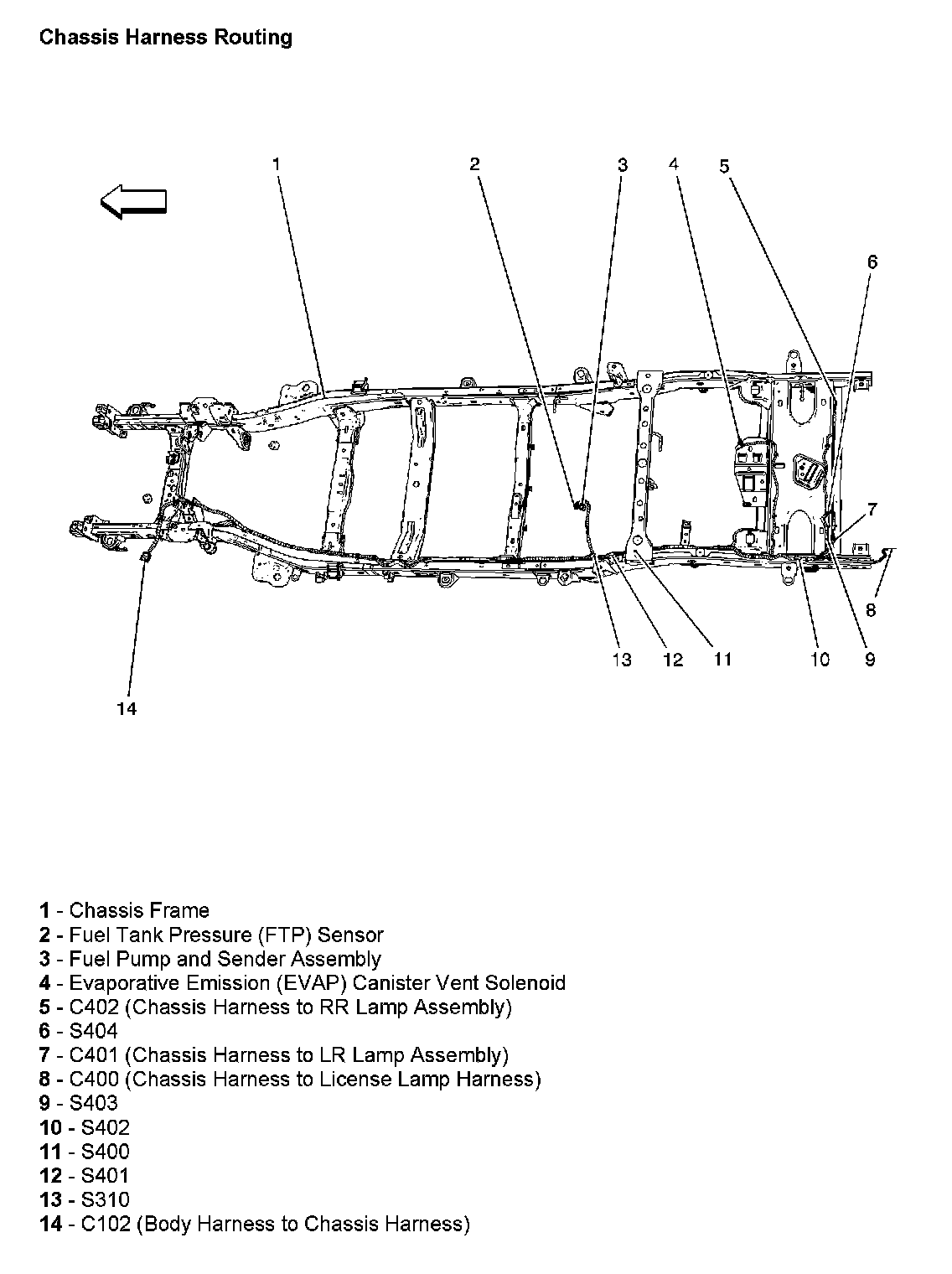

Chassis Harness Routing:
