Instrument Panel (IP) - Trim Replacement - Lower Center

Trim Replacement - Instrument Panel (I/P) Lower Center

Removal Procedure

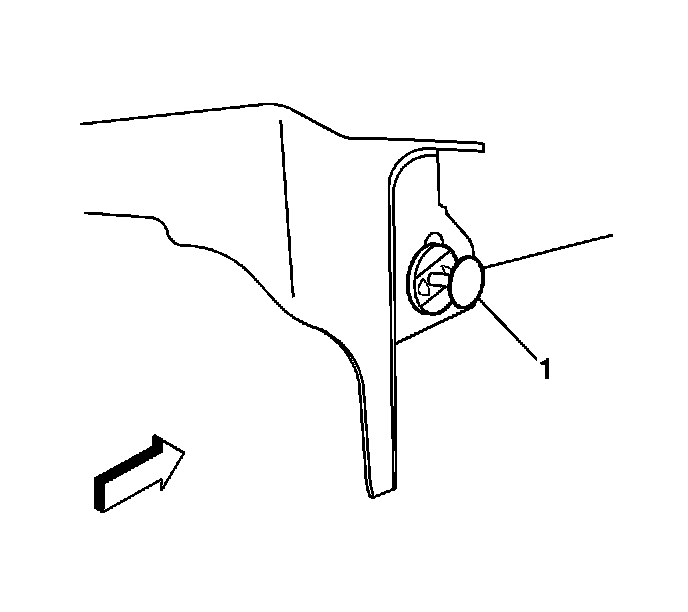

1. Use a trim tool to remove the head (1) of the push-pin, right and left side.




2. Use a trim tool to remove the base (1) of the push-pin, right and left side.




3. Remove the lower center instrument panel (I/P) trim from the vehicle.

Installation Procedure




1. Install the lower center I/P trim to the vehicle.




2. Install the base (1) of the push-pin, right and left side.




3. Install the head (1) of the push-pin, right and left side.
