Oil Filter Adapter Replacement

Oil Filter Adapter Replacement

Removal Procedure





1. Remove the oil filter.

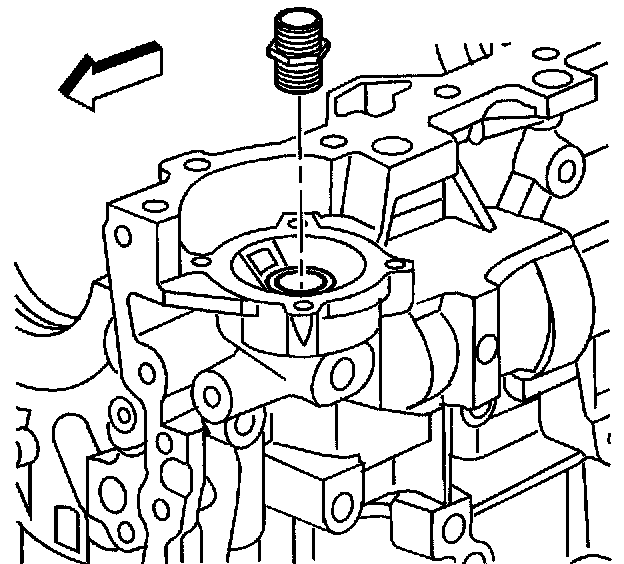

2. Remove the oil filter adapter from the engine block.

Installation Procedure

Notice: Refer to Component Fastener Tightening Notice in Service Precautions.





1. Install the oil filter adapter into the engine block.
^ Tighten the oil filter adapter to 50 Nm (37 ft. lbs.).
2. Install the oil filter.
