Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>

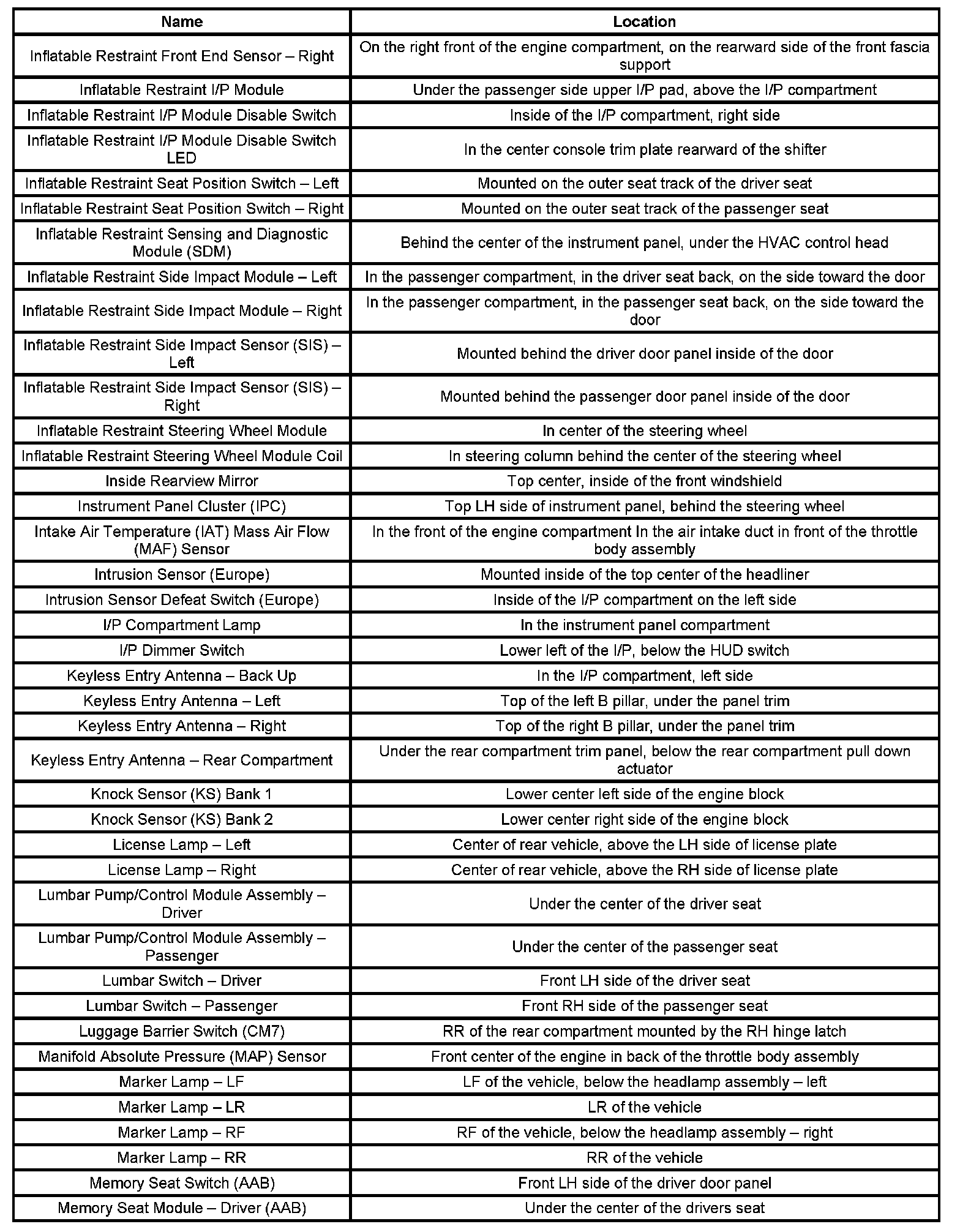

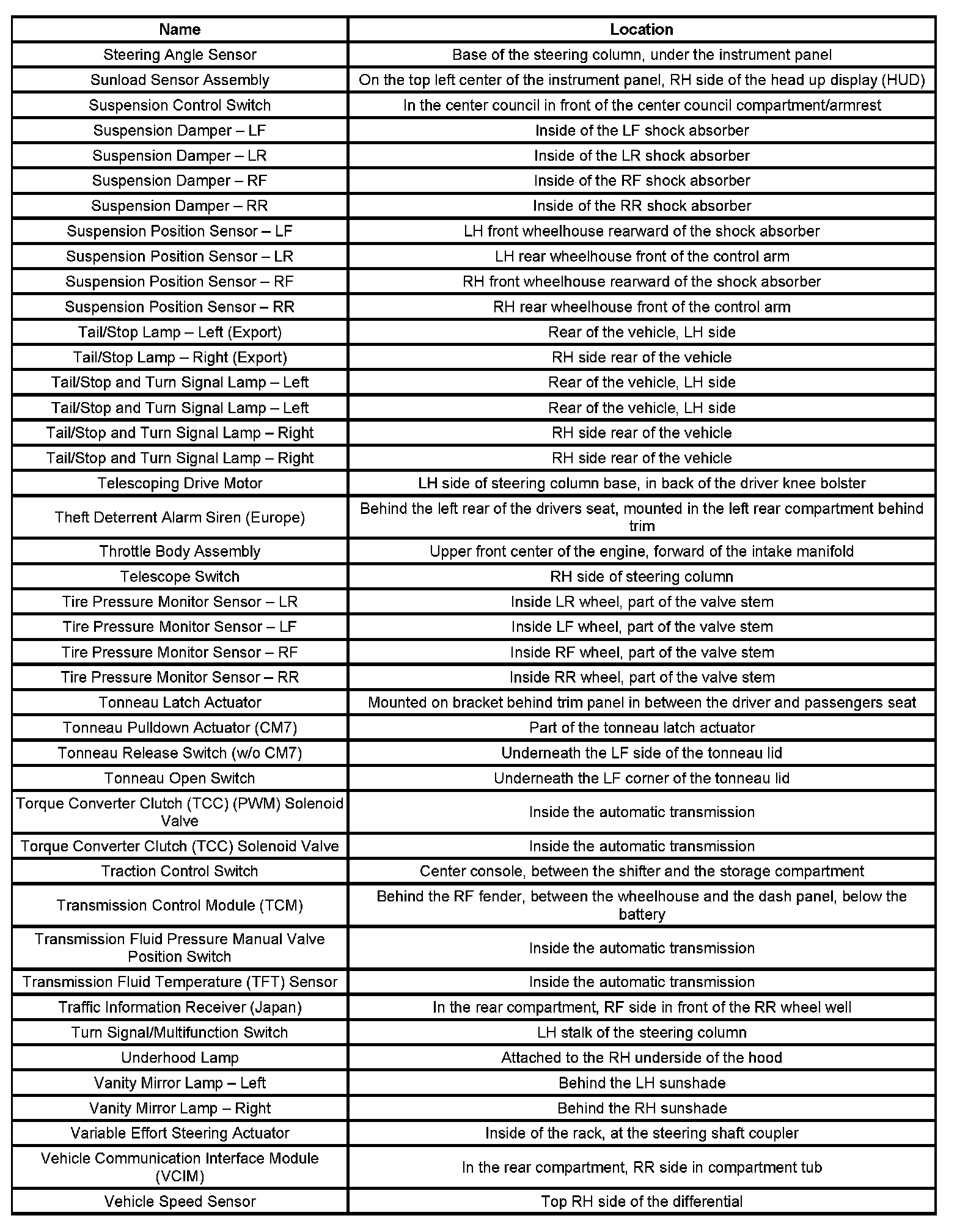

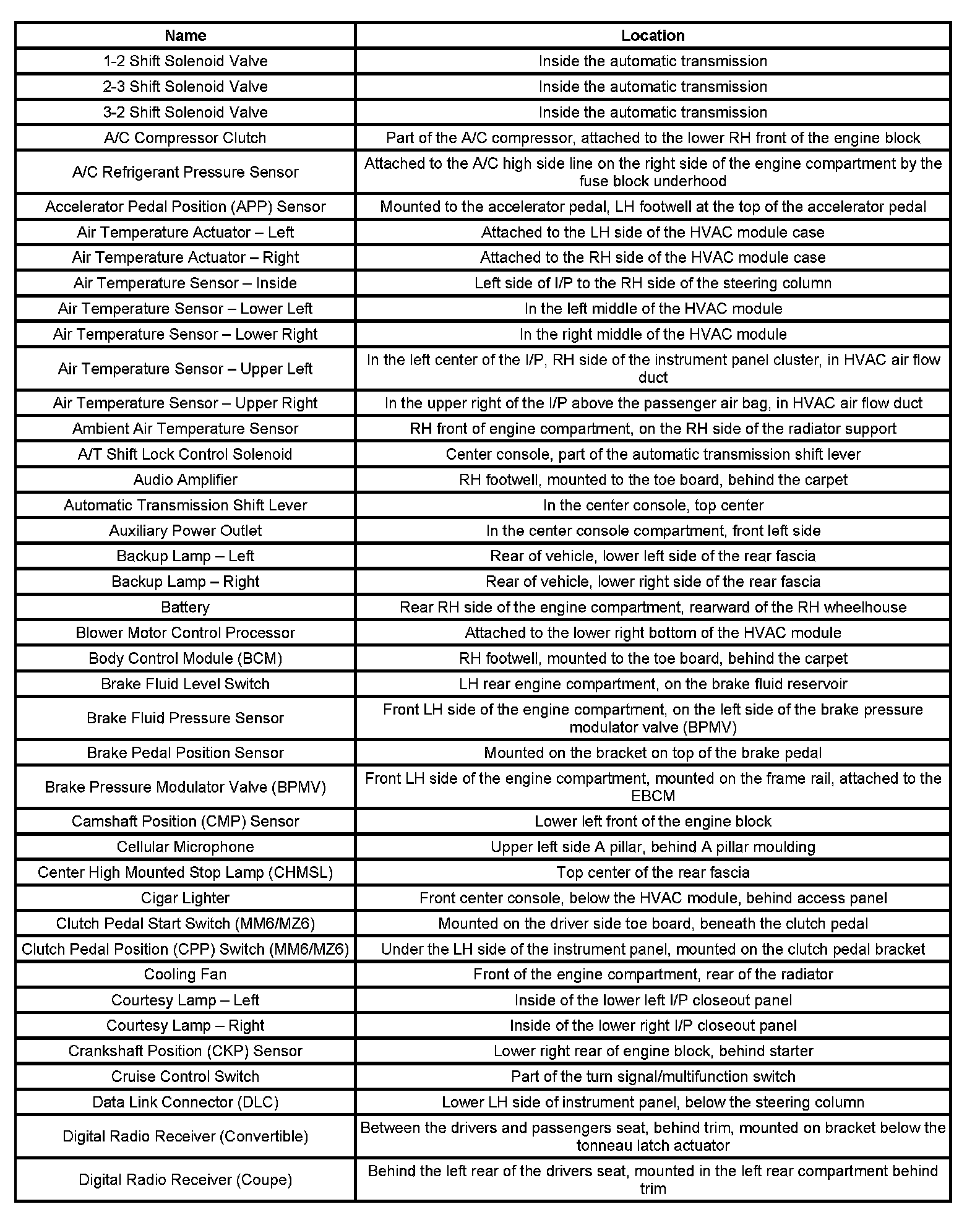

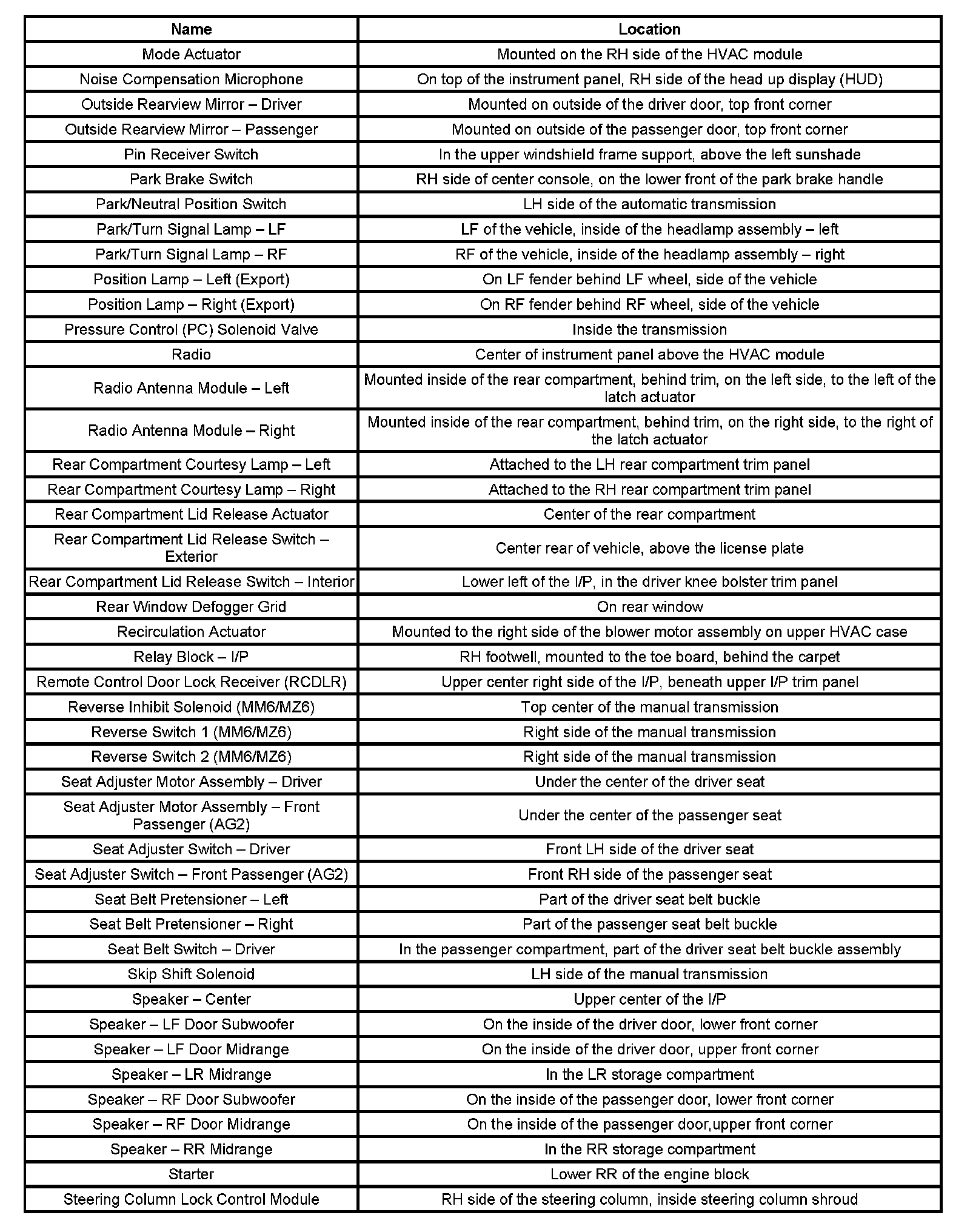

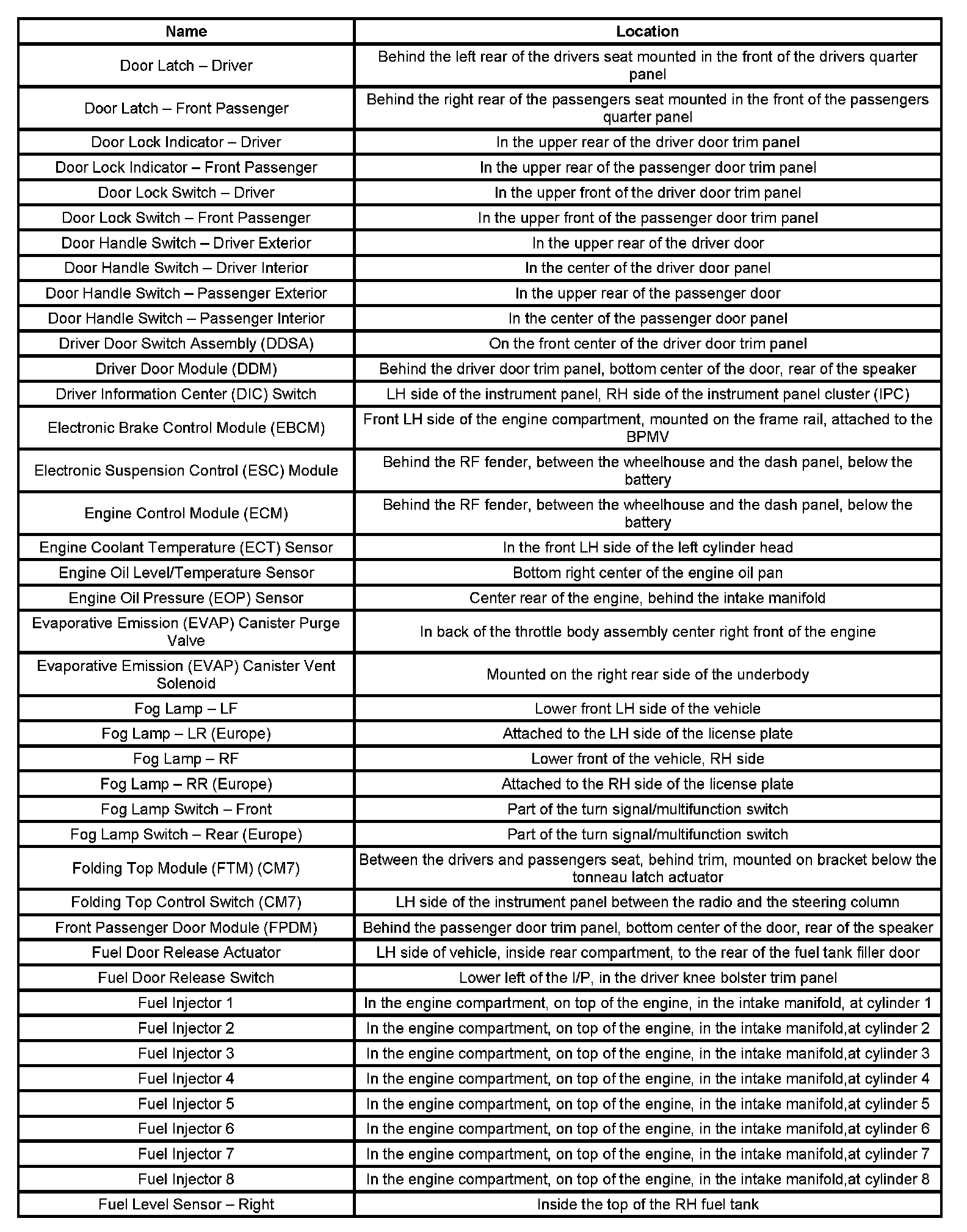

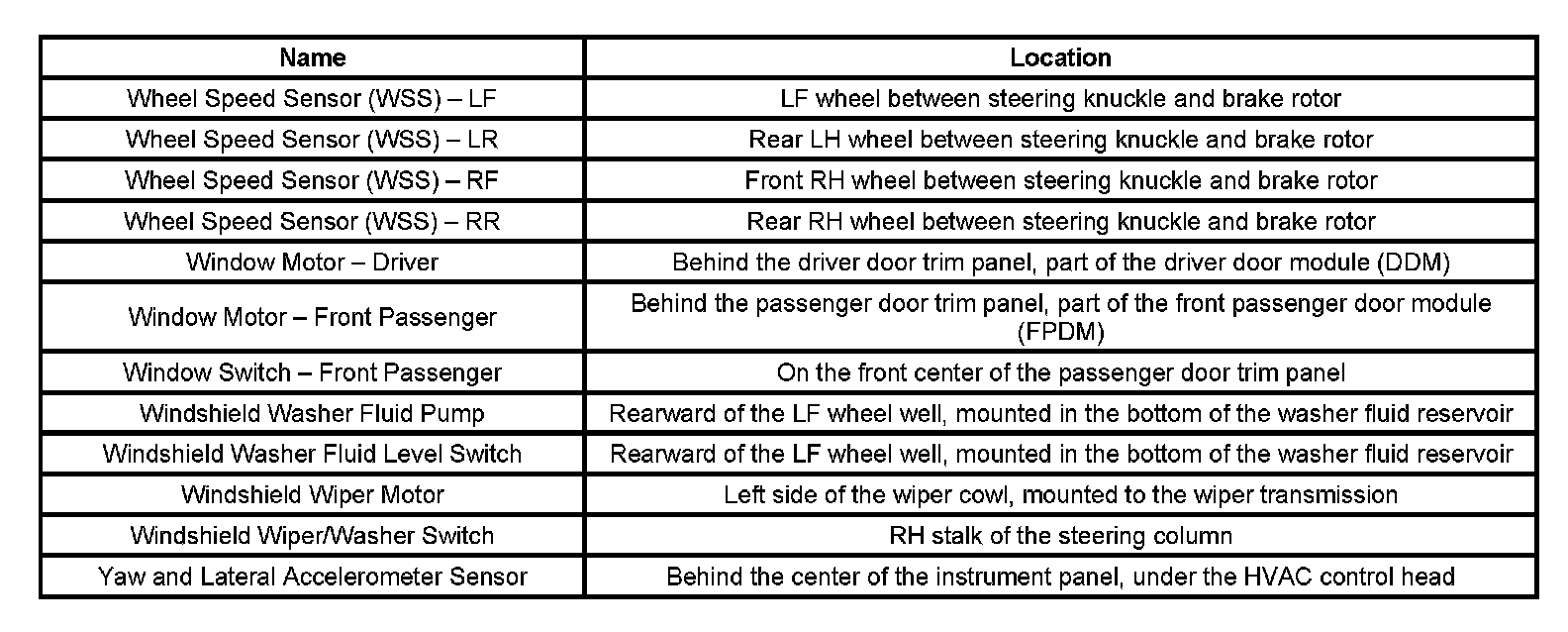

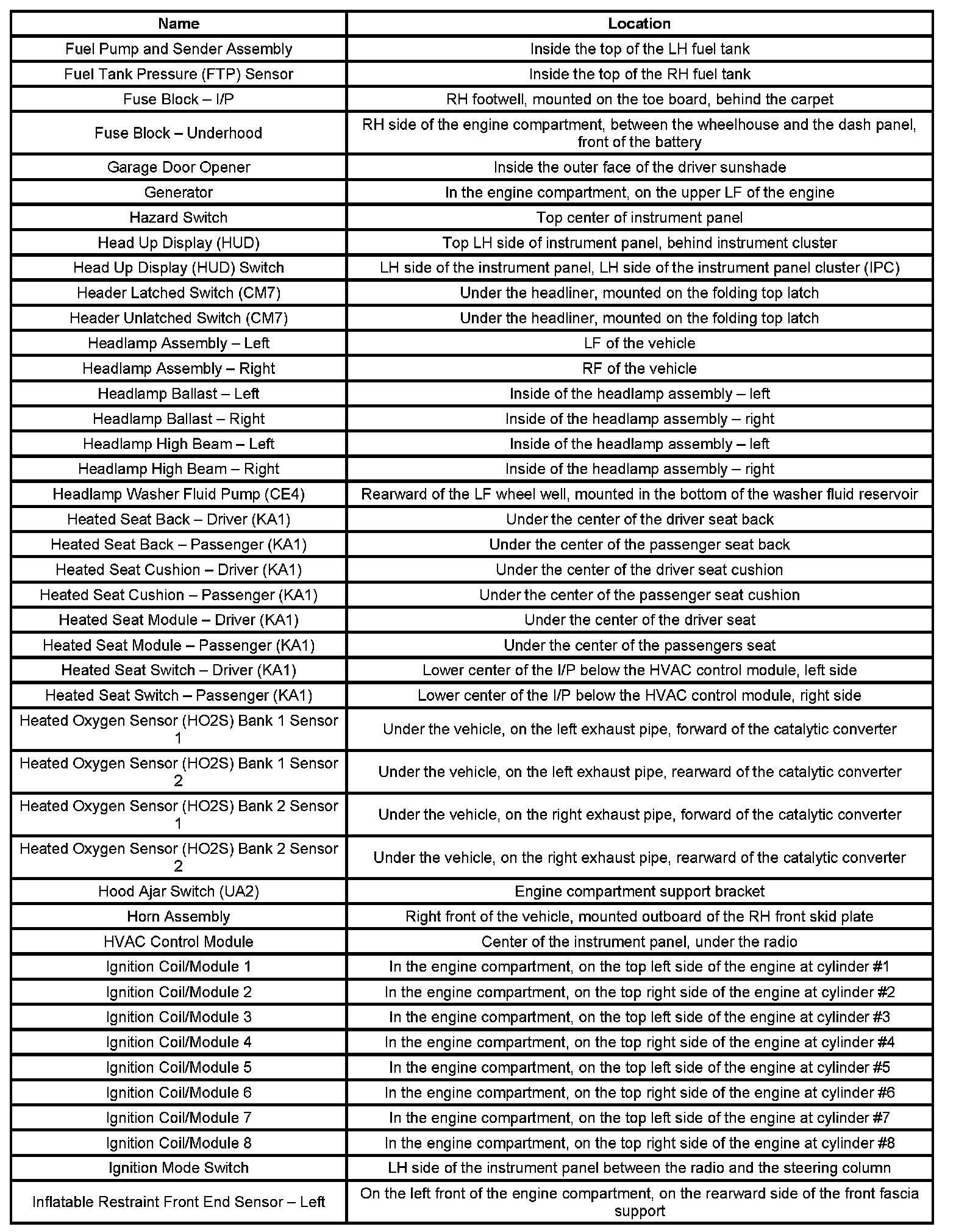

Components
Components
1-2 Sh - Di:
Do - Fu:
Fu - In:
In - Me:
Mo - St:
St - Ve:
Wh - Ya:
