Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna Control Module
Antenna Control Module

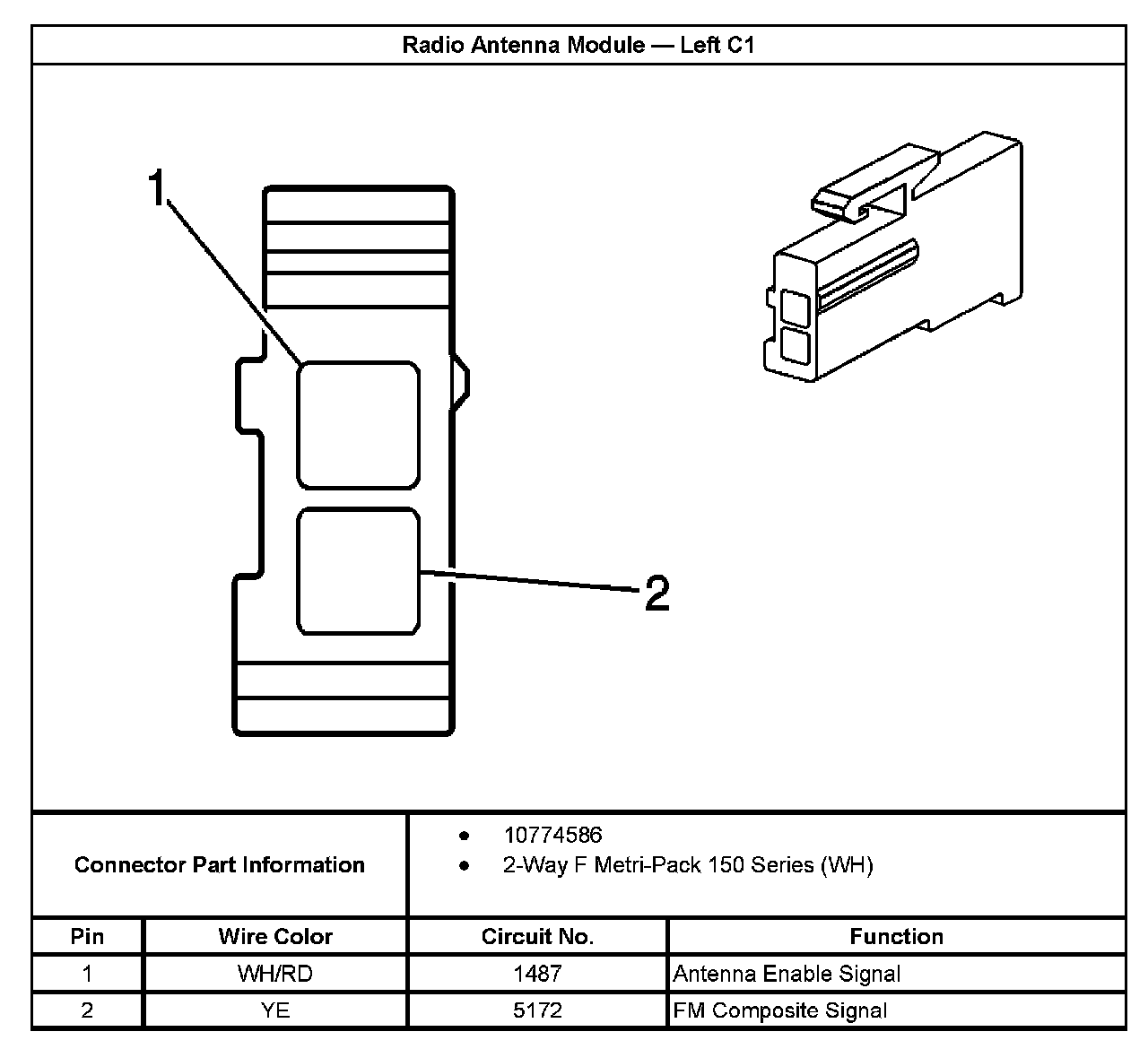

Radio Antenna Module-Left C1:

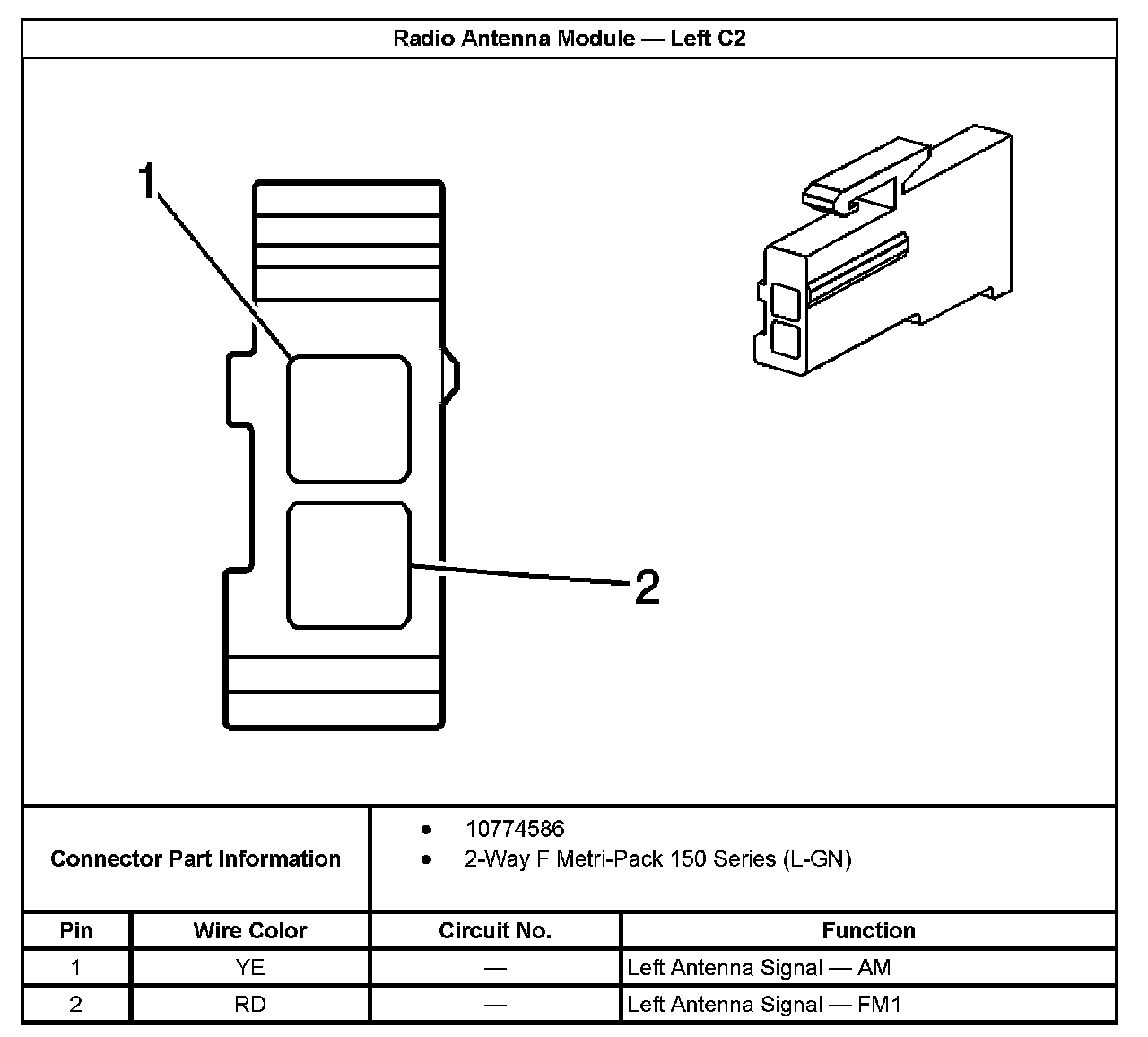

Radio Antenna Module-Left C2:

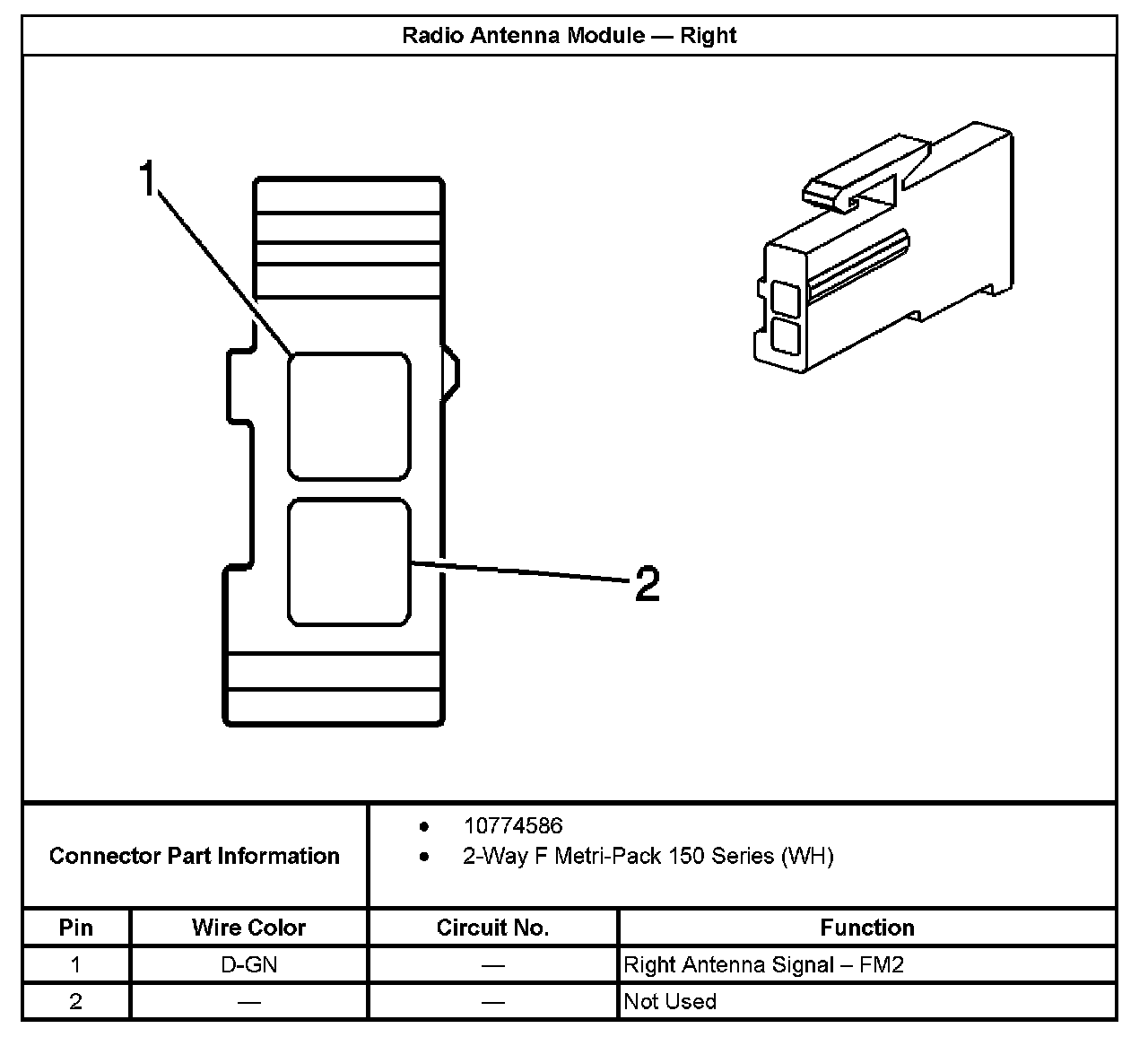

Radio Antenna Module-Right:
