Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Position Sensor / Switch >> Header Unlatch Switch ( With RPO Code CM7)

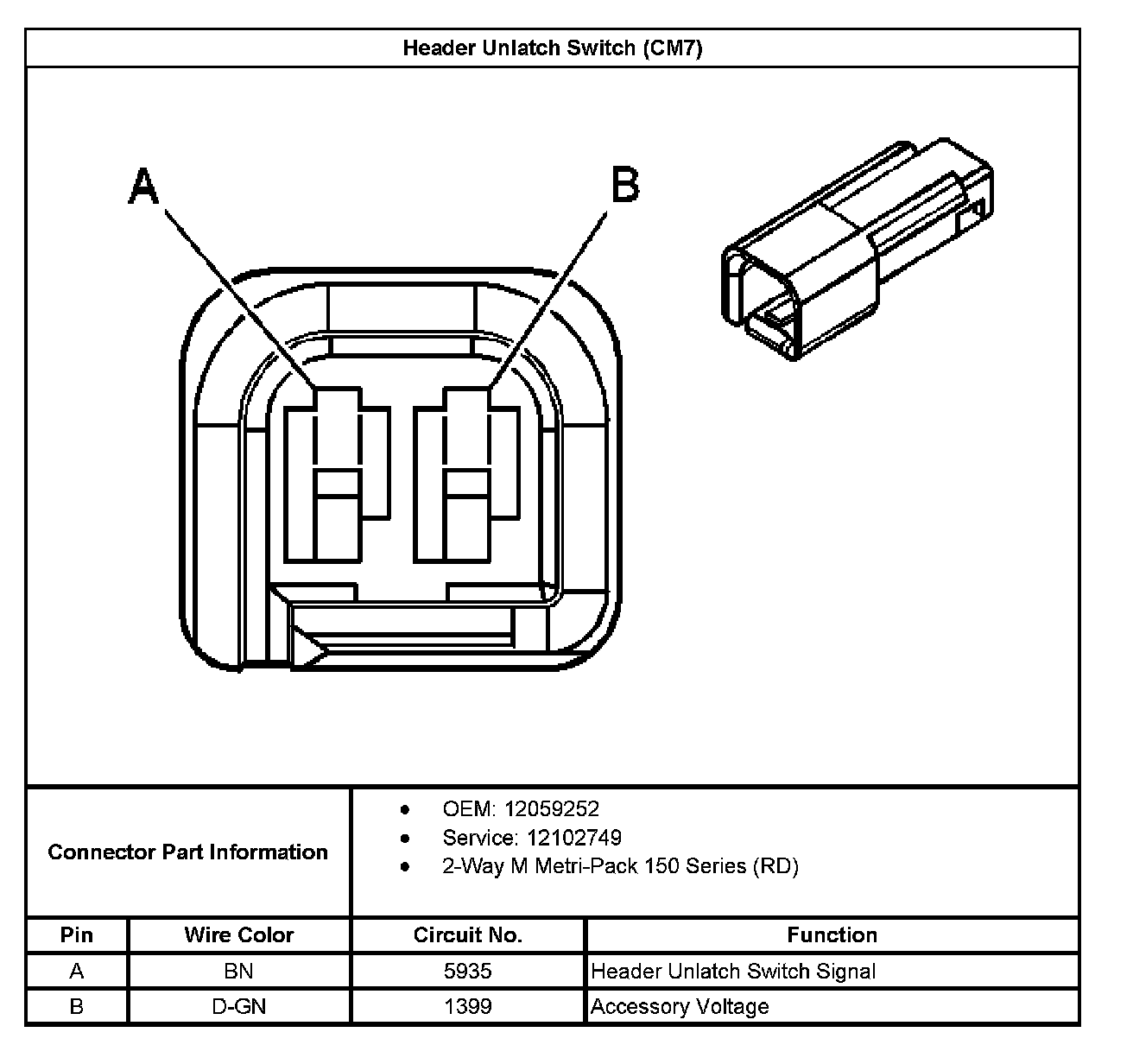

Header Unlatch Switch ( With RPO Code CM7)

Header Unlatch Switch (With RPO Code CM7):
