Door Module

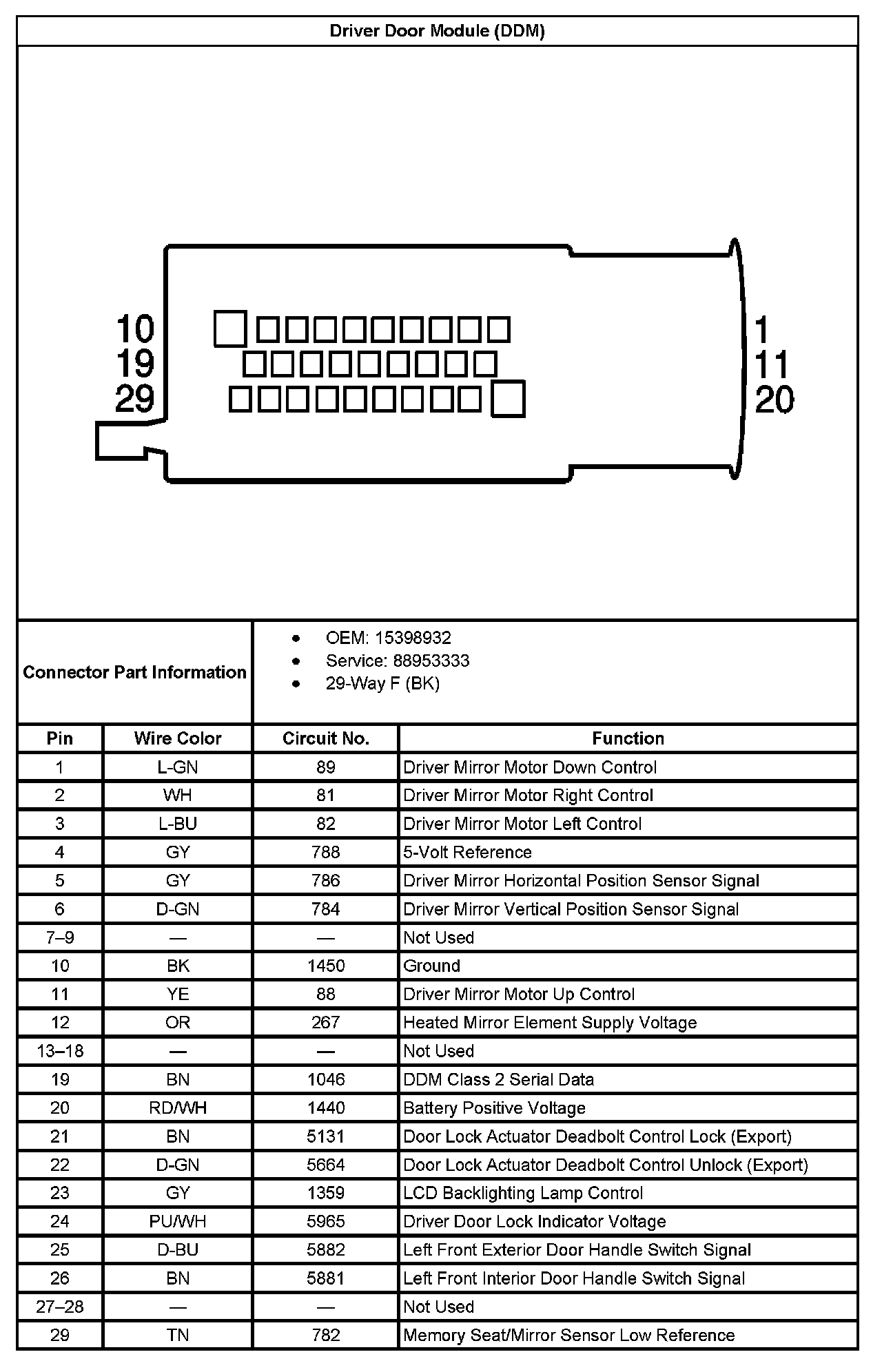

Driver Door Module (DDM):

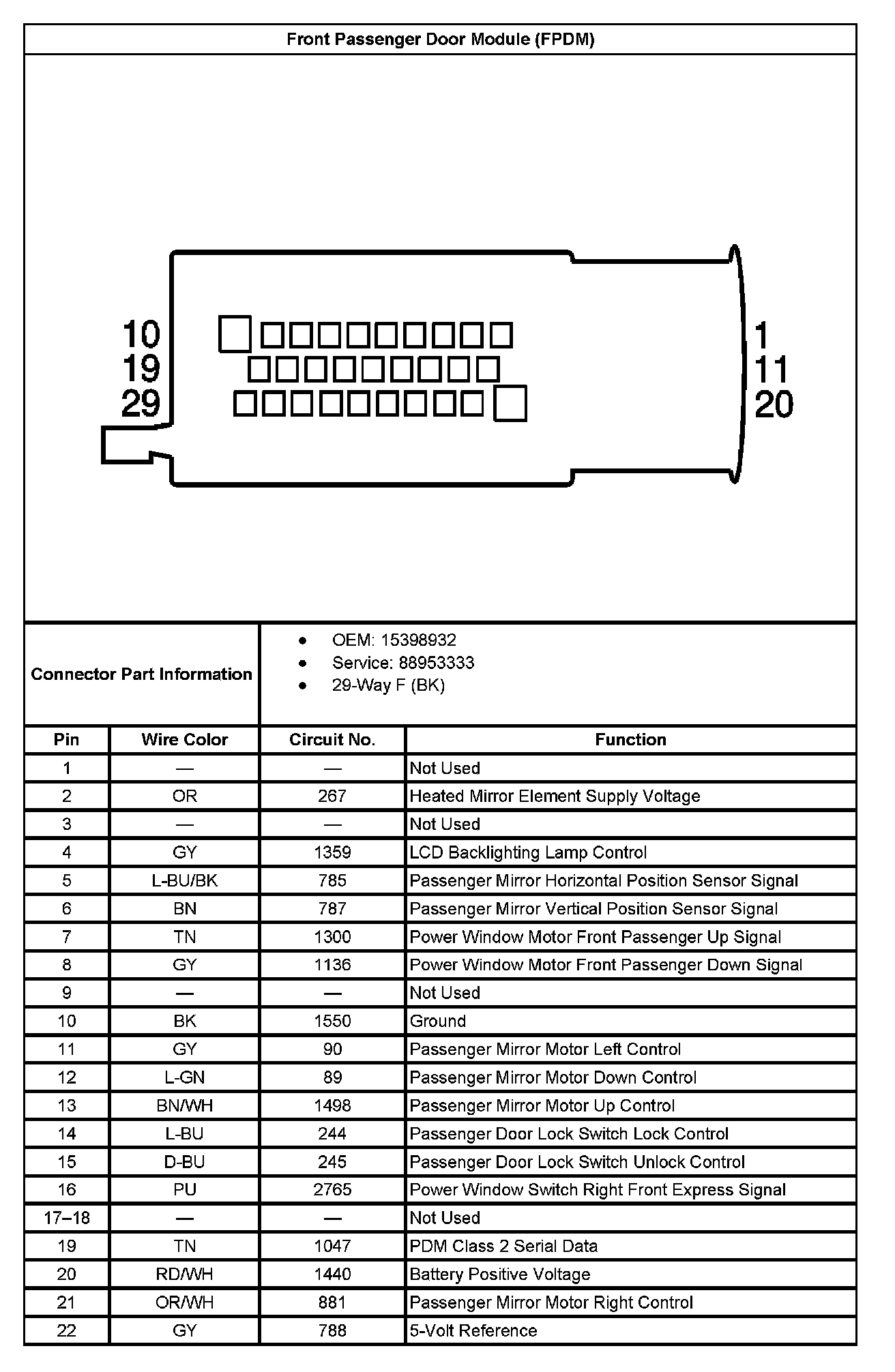

Front Passenger Door Module (FPDM):

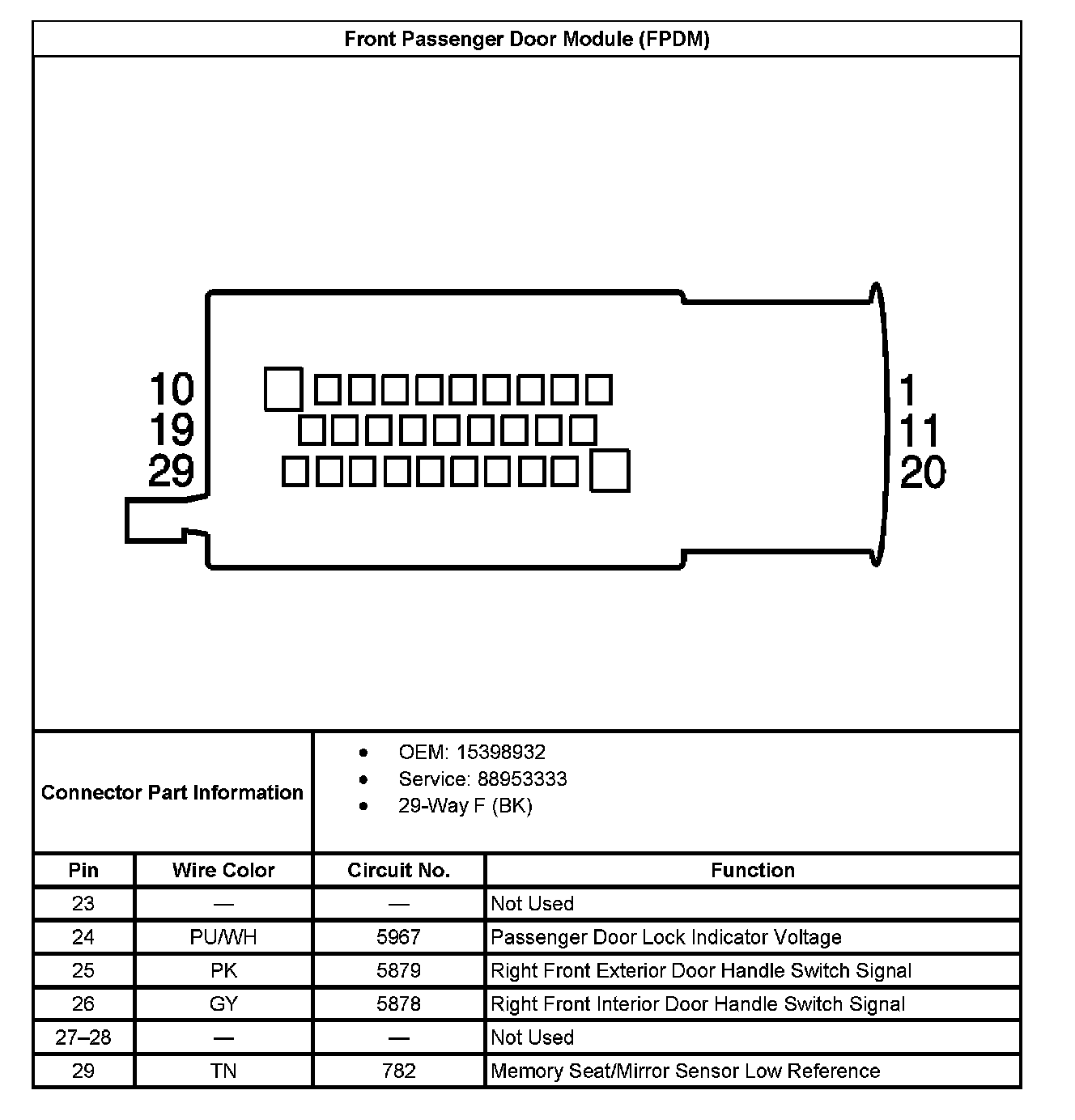

Front Passenger Door Module (FPDM) Part 2:
