Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

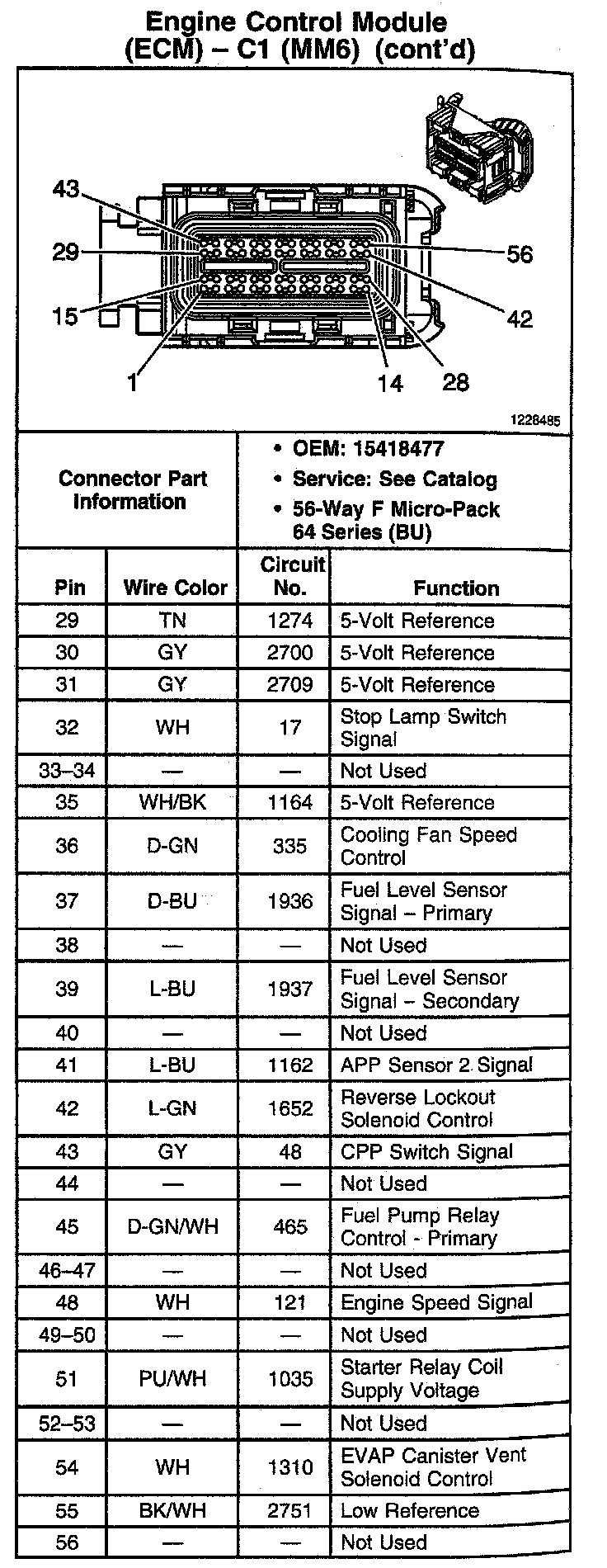

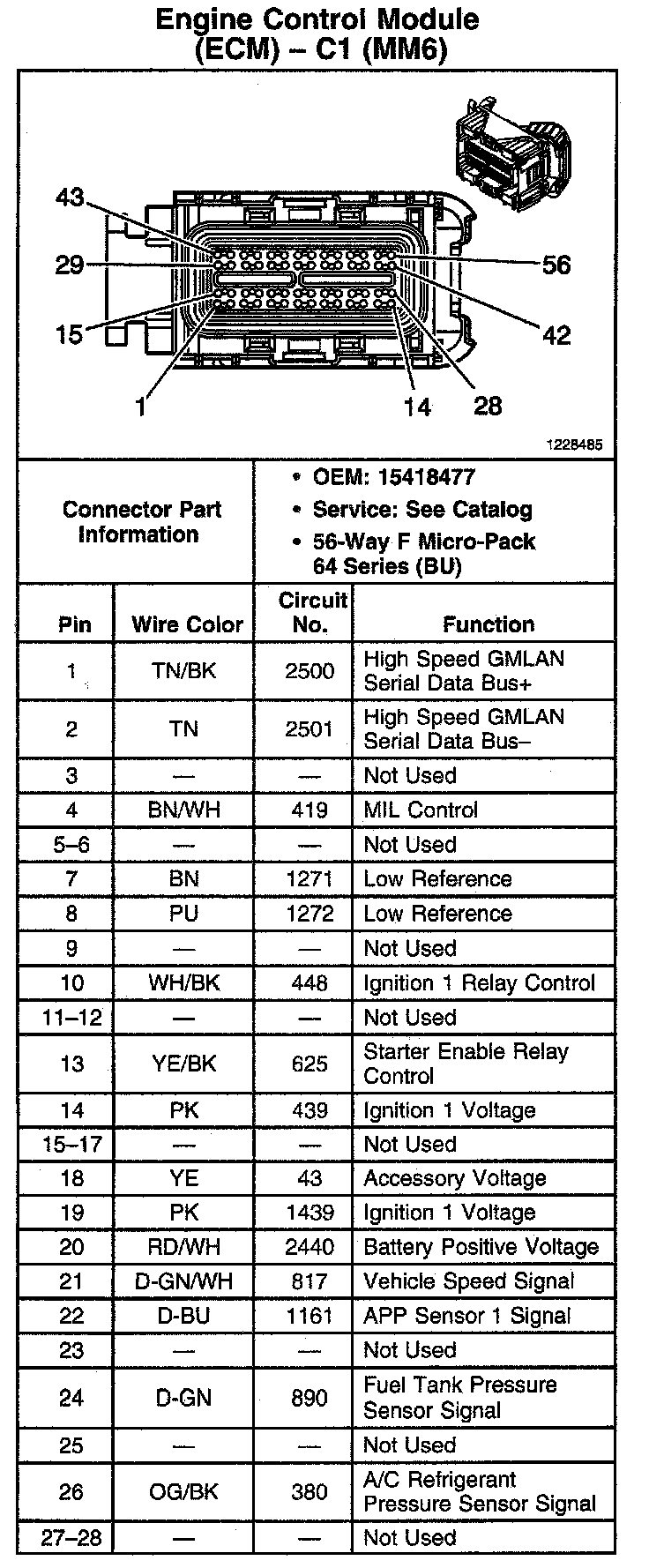

Engine Control Module (ECM) - C1
>>
With Manual Transmission (RPO MM6)
With Manual Transmission (RPO MM6)
