Impact Sensor

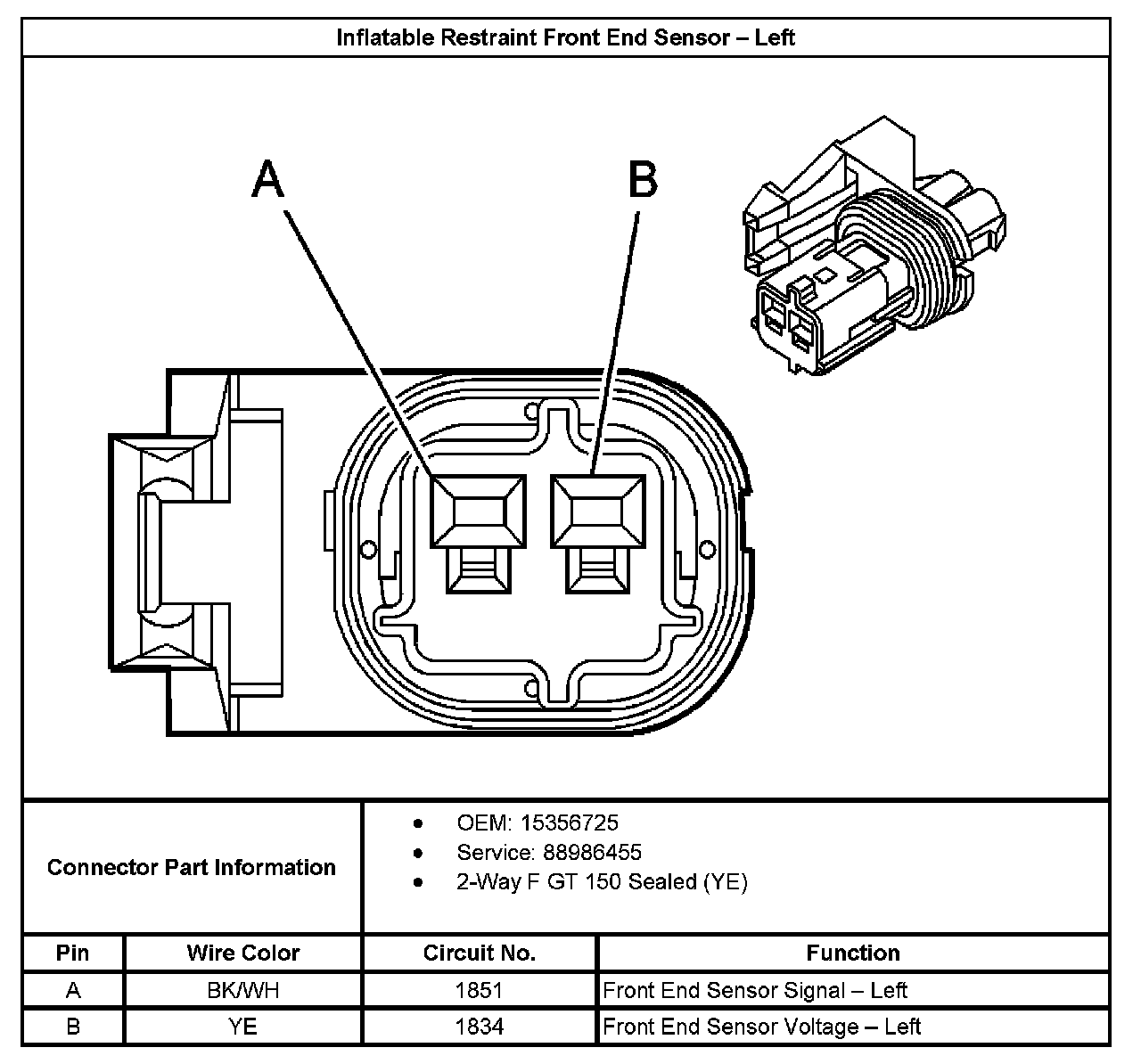

Inflatable Restraint Front End Sensor - Left:

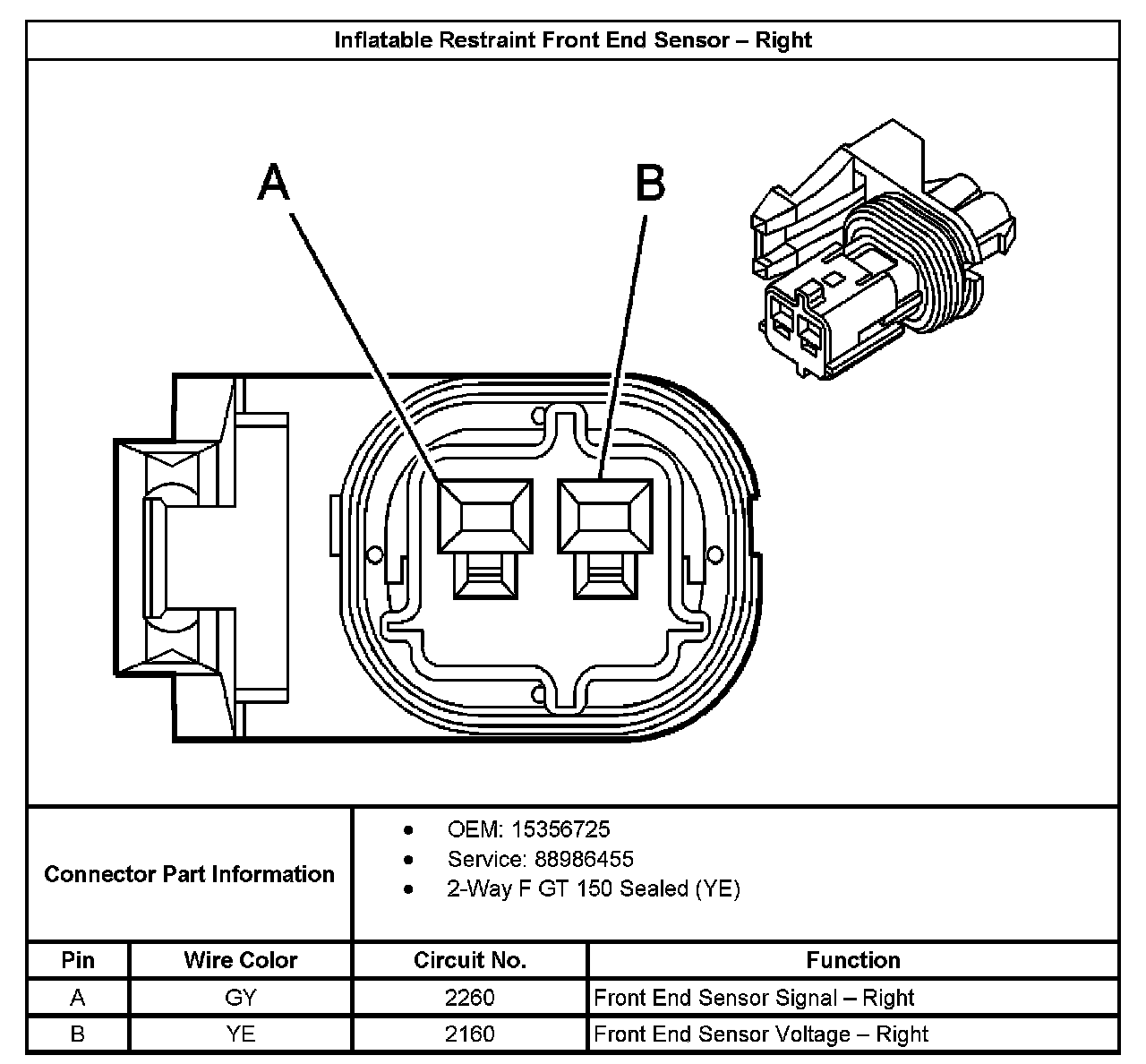

Inflatable Restraint Front End Sensor - Right:

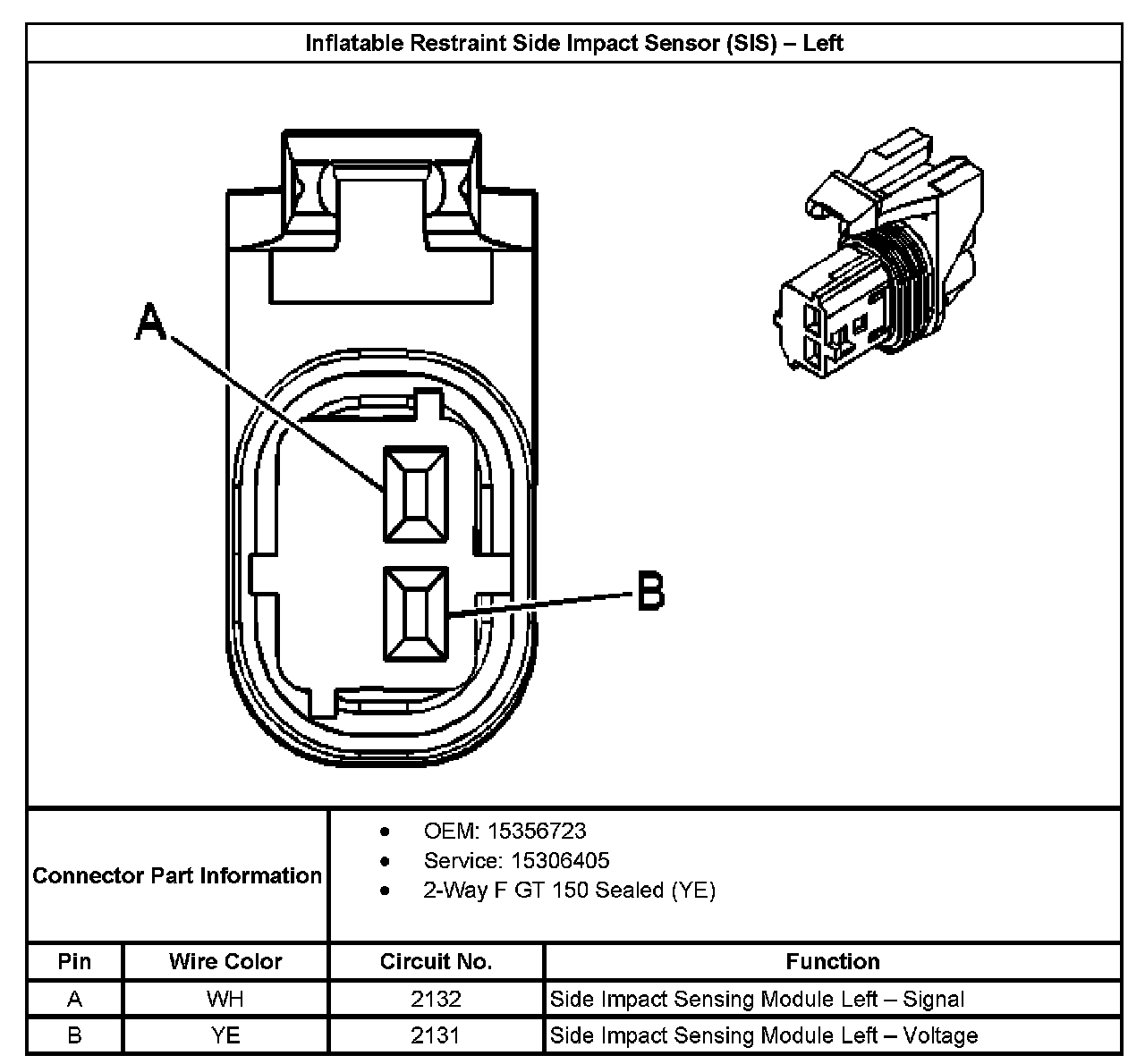

Inflatable Restraint Side Impact Sensor (SIS) - Left:

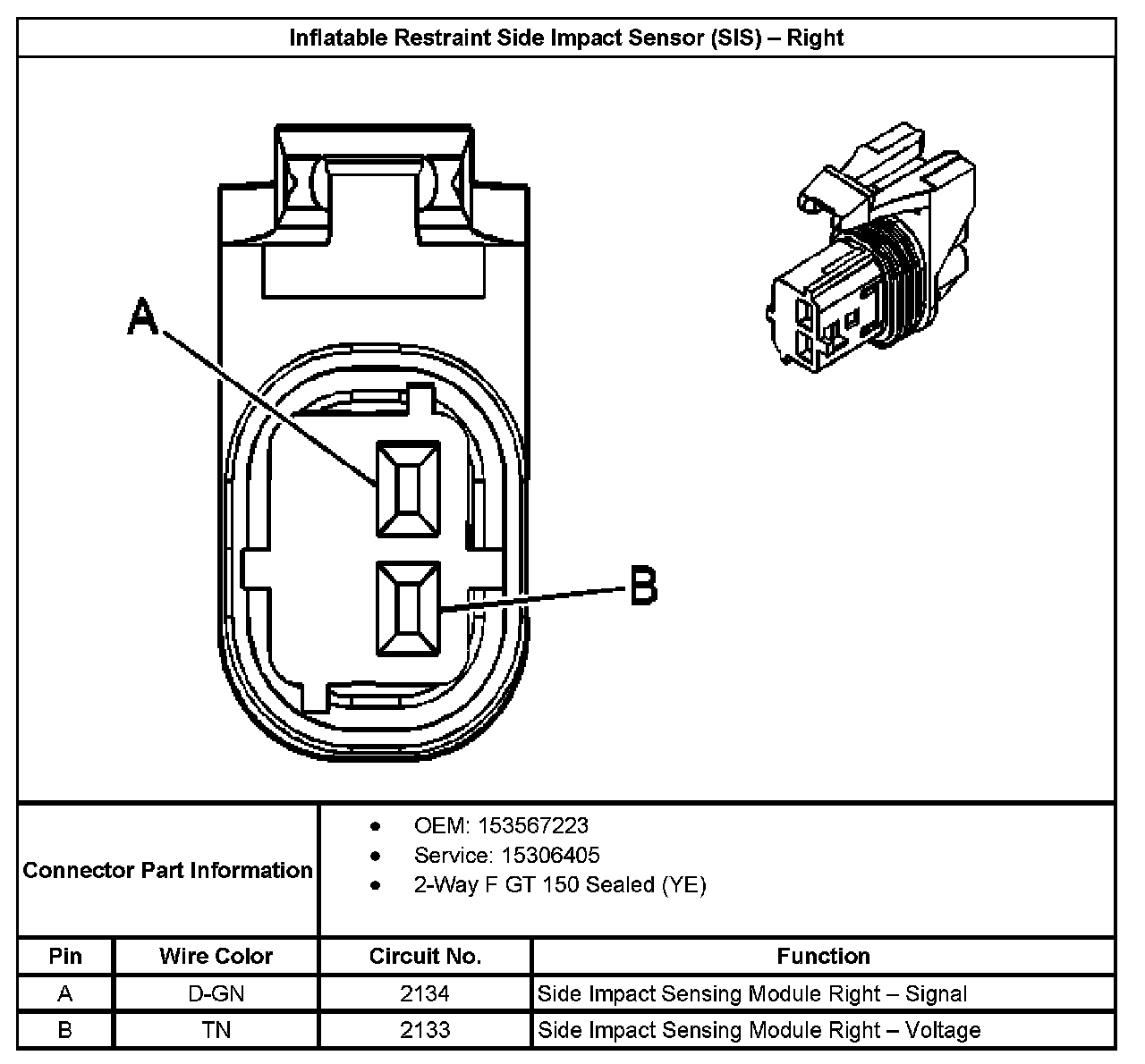

Inflatable Restraint Side Impact Sensor (SIS) - Right:
