Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

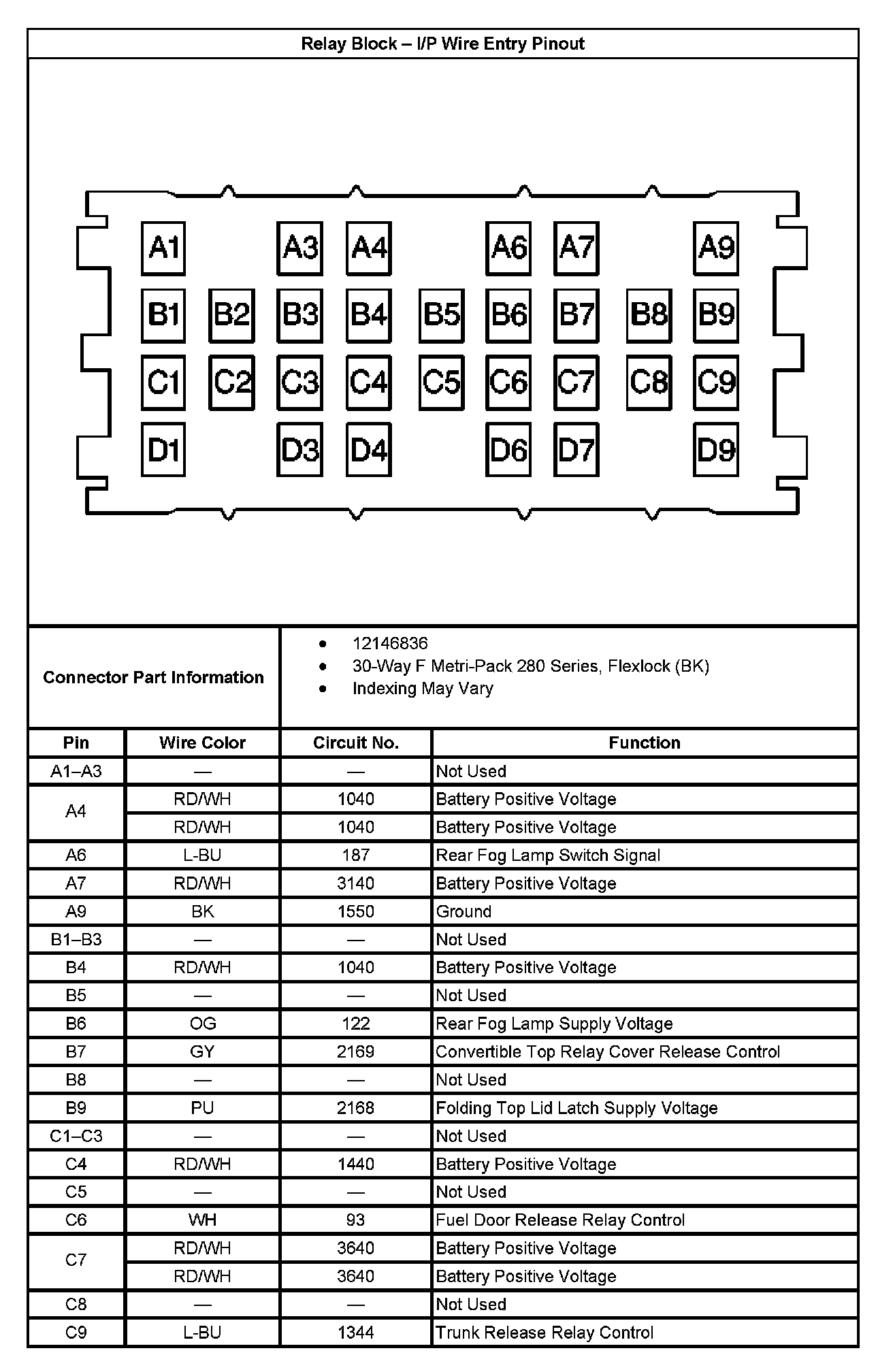

Relay Block - I/P Wire Entry Pinout Part 1:

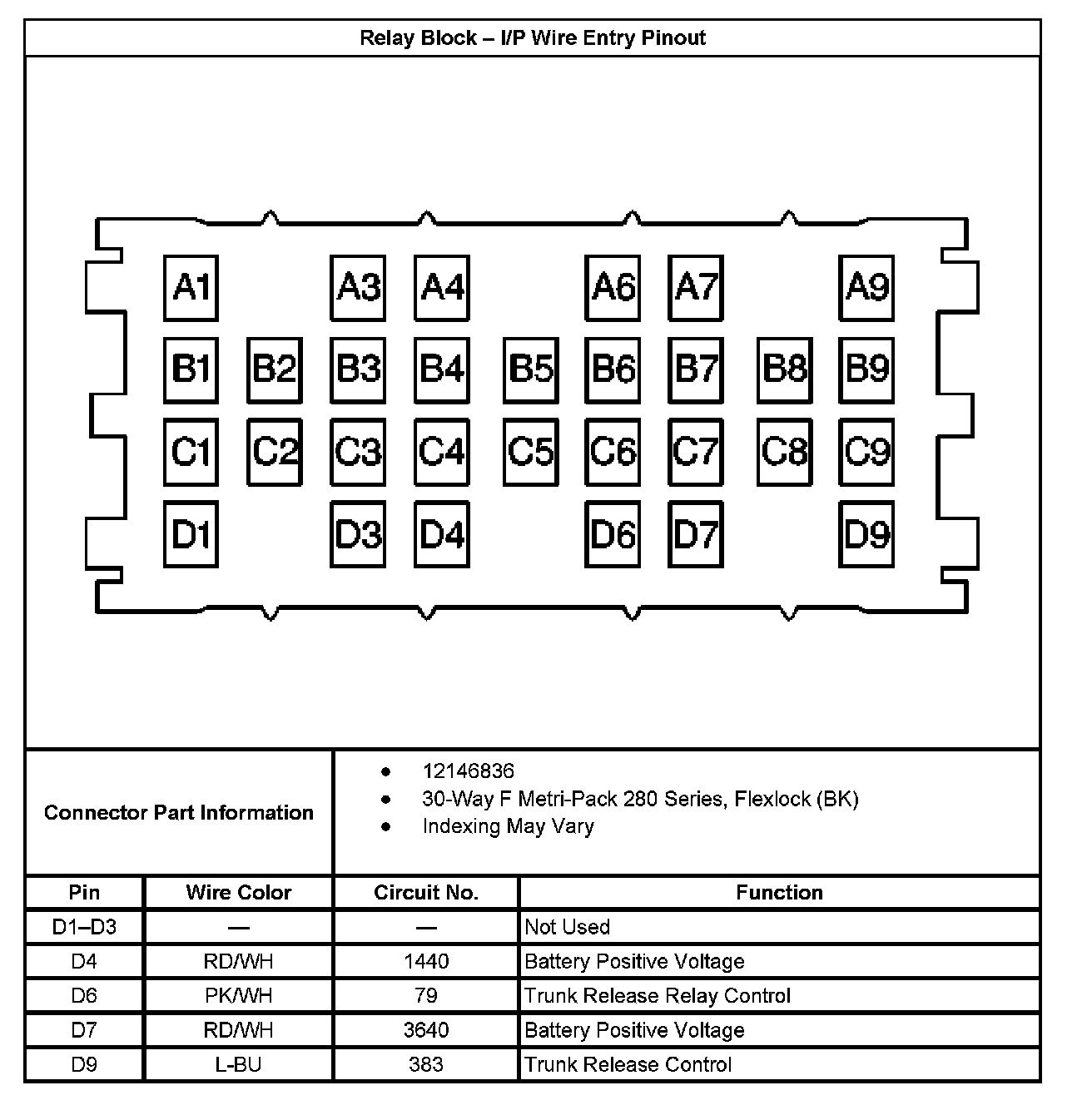

Relay Block - I/P Wire Entry Pinout Part 2:
