Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RF Midrange

RF Midrange

Speaker-RF Midrange (With RPO Code U65):

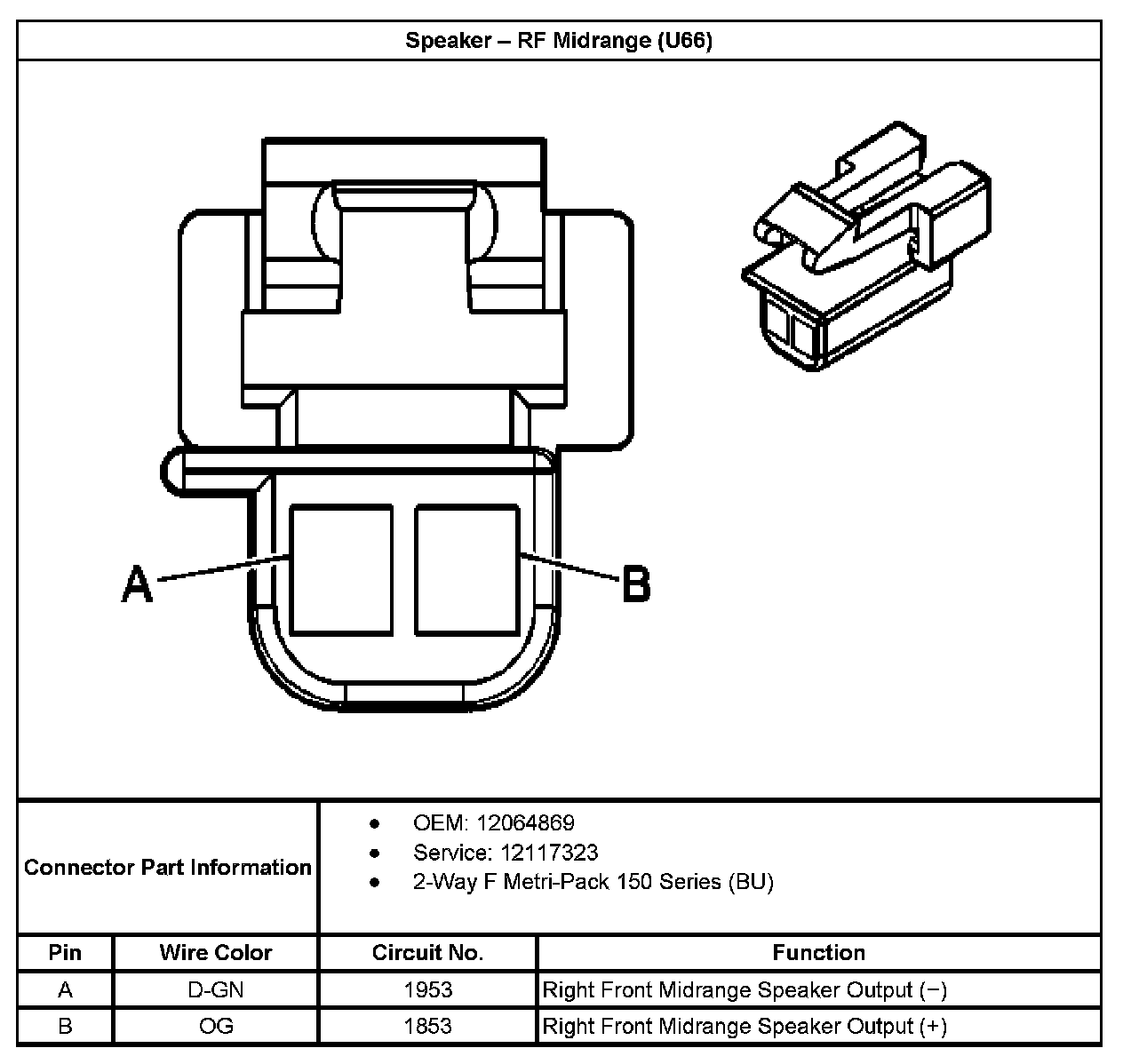

Speaker-RF Midrange (With RPO Code U66):
