Differential Assembly

Rear Axle Disassembled Views

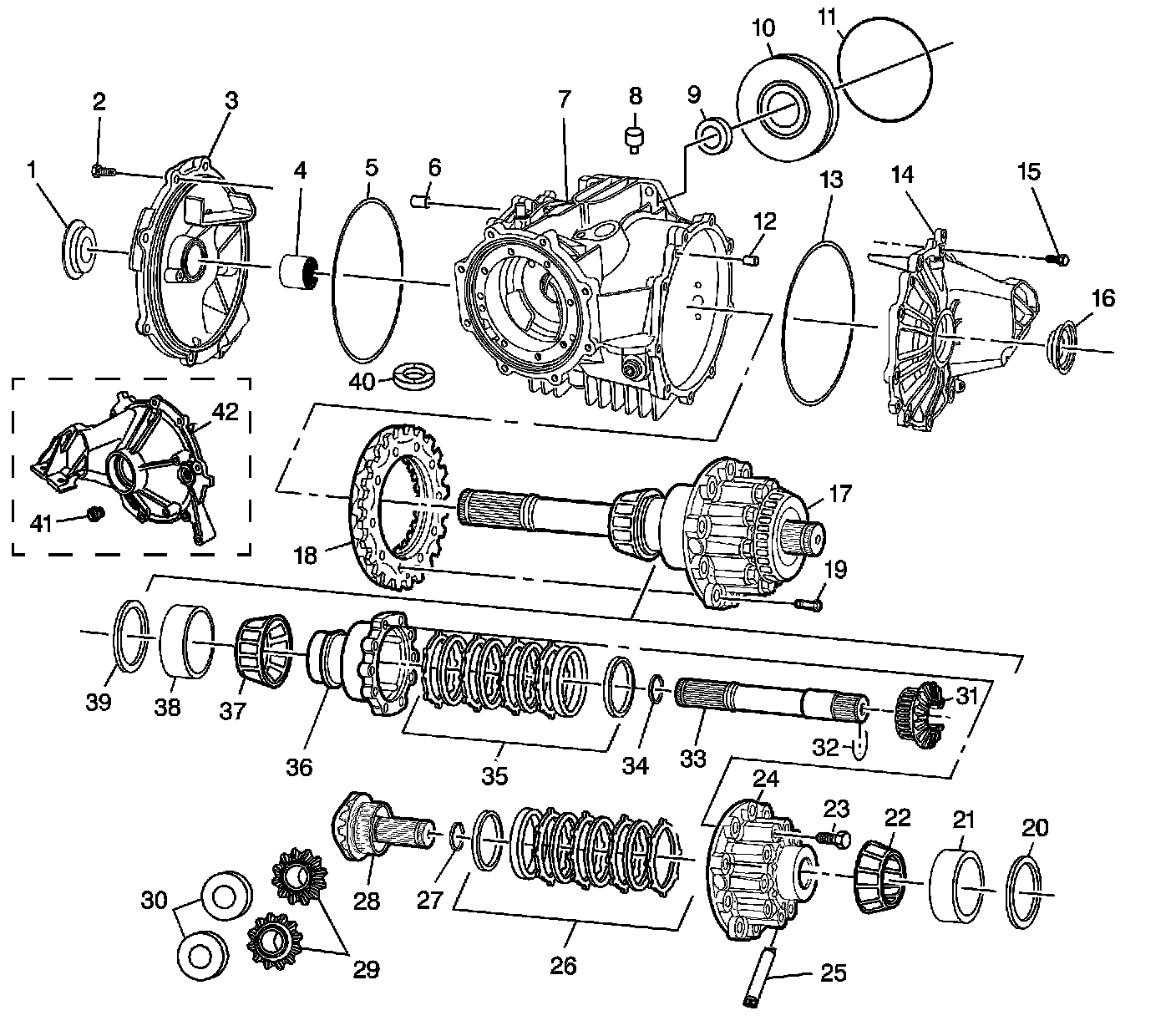

Differential Carrier and Case Assembly





1 - Output Shaft Oil Seal - Left
2 - Bolt
3 - Cover - Left
4 - Bushing
5 - O-Ring
6 - Dowel
7 - Carrier
8 - Vent
9 - Oil Seal - Automatic Transmission Only
10 - Cover - Automatic Transmission Only
11 - O-Ring - Automatic Transmission Only
12 - Dowel
13 - O-Ring
14 - Cover - Right
15 - Bolt
16 - Output Shaft Oil Seal - Right
17 - Differential Case Assembly
18 - Ring Gear
19 - Bolt
20 - Shim
21 - Bearing Cup
22 - Bearing
23 - Bolt
24 - Differential Case - Right
25 - Cross Pin
26 - Clutch Pack - Right
27 - C-Clip
28 - Gear and Output Shaft - Right
29 - Side Gears
30 - Side Gear Washers
31 - Gear - Left
32 - C-Clip
33 - Output Shaft - Left
34 - C-Clip
35 - Clutch Pack - Left
36 - Differential Case - Left
37 - Bearing
38 - Bearing Cup
39 - Shim
40 - Magnet
41 - Quick Connect
42 - Cover - Left - Model Dependent

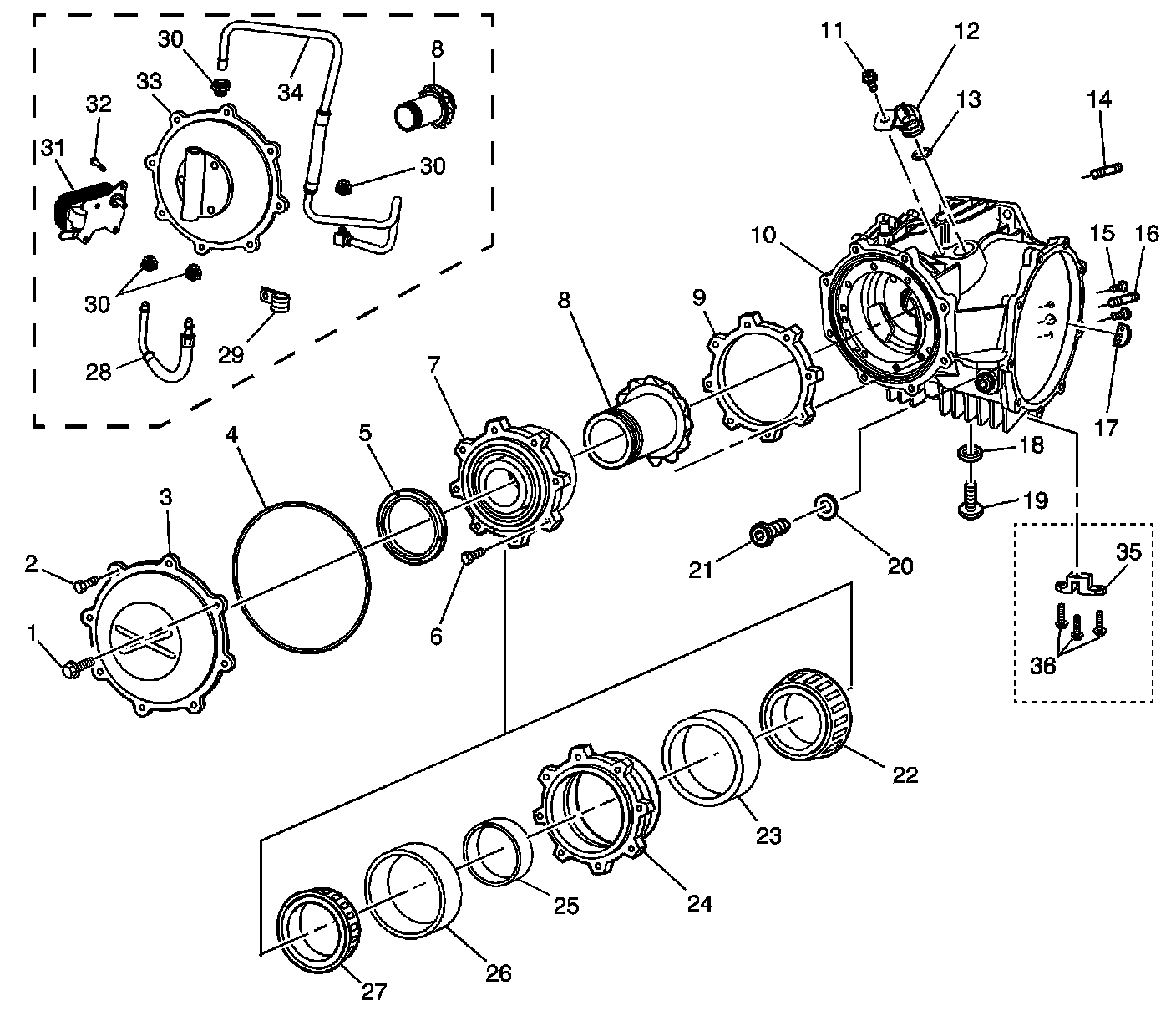

Drive Pinion Assembly





1 - Bolt - (2)
2 - Bolt
3 - Cover - Rear
4 - O-Ring
5 - Nut
6 - Bolt
7 - Pinion Housing/Cage - with Bearings and Spacer
8 - Pinion
8 - Pinion
9 - Shims
10 - Carrier
11 - Bolt
12 - Vehicle Speed Sensor
13 - O-Ring
14 - Transmission Stud - Cover - Left
15 - Bolt
16 - Transmission Stud - Case
17 - Adapter
18 - Washer
19 - Drain Plug
20 - Washer
21 - Fill Plug
22 - Bearing
23 - Bearing Cup
24 - Pinion Housing/Cage
25 - Spacer
26 - Bearing Cup
27 - Bearing
28 - Pump Outlet Pipe
29 - Pipe Clip
30 - Quick Connect
30 - Quick Connect
30 - Quick Connect
31 - Rear Axle Cooler - Optional
32 - Cooler Bolt
33 - Rear Axle Pump - Optional
34 - Pump Inlet Pipe
35 - Differential Reinforcement Bracket - Some Models
36 - Differential Reinforcement Bracket Bolts - Some Models
