Engine Views
Engine Views
Engine Harness Components Part 1:

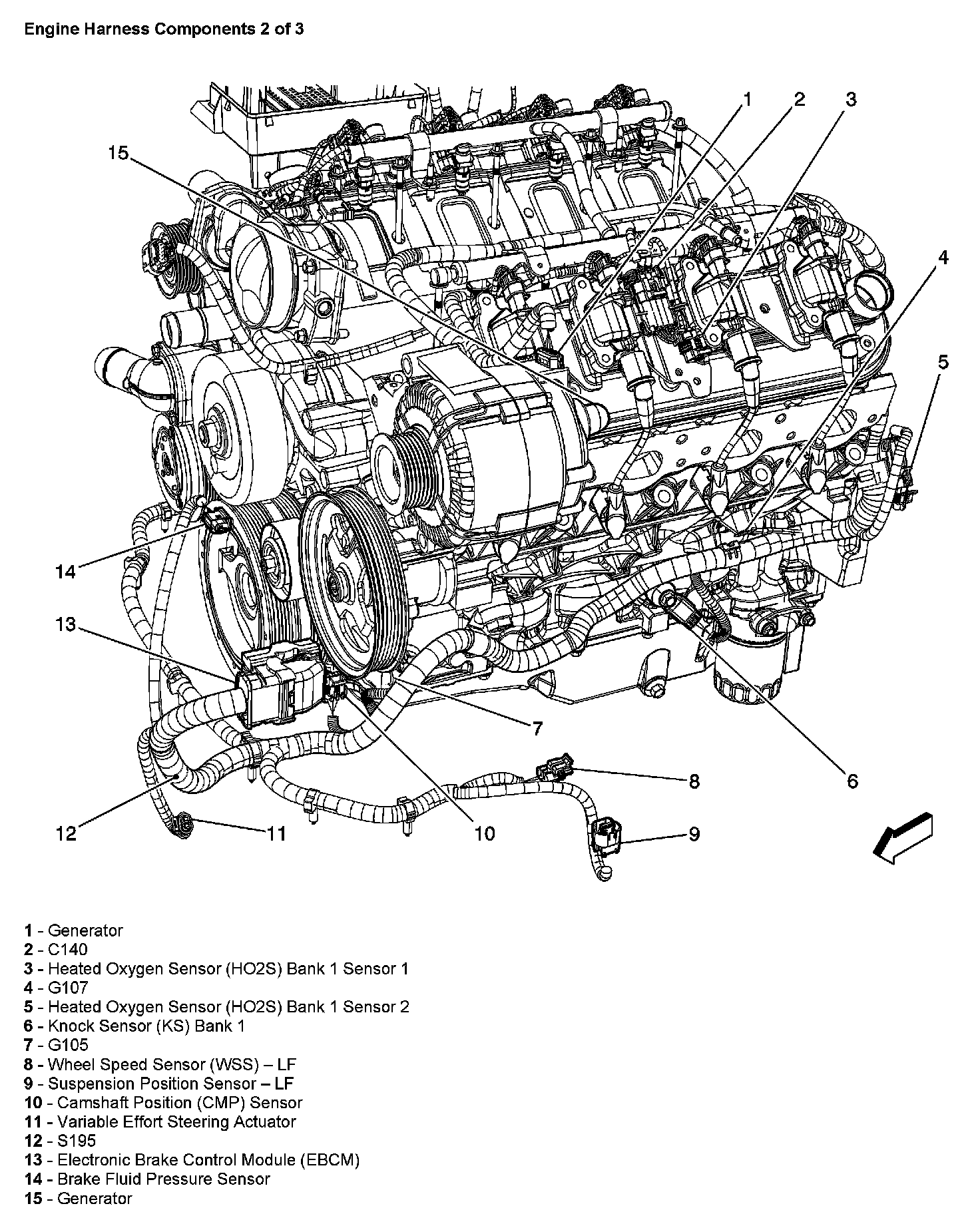

Engine Harness Components Part 2:

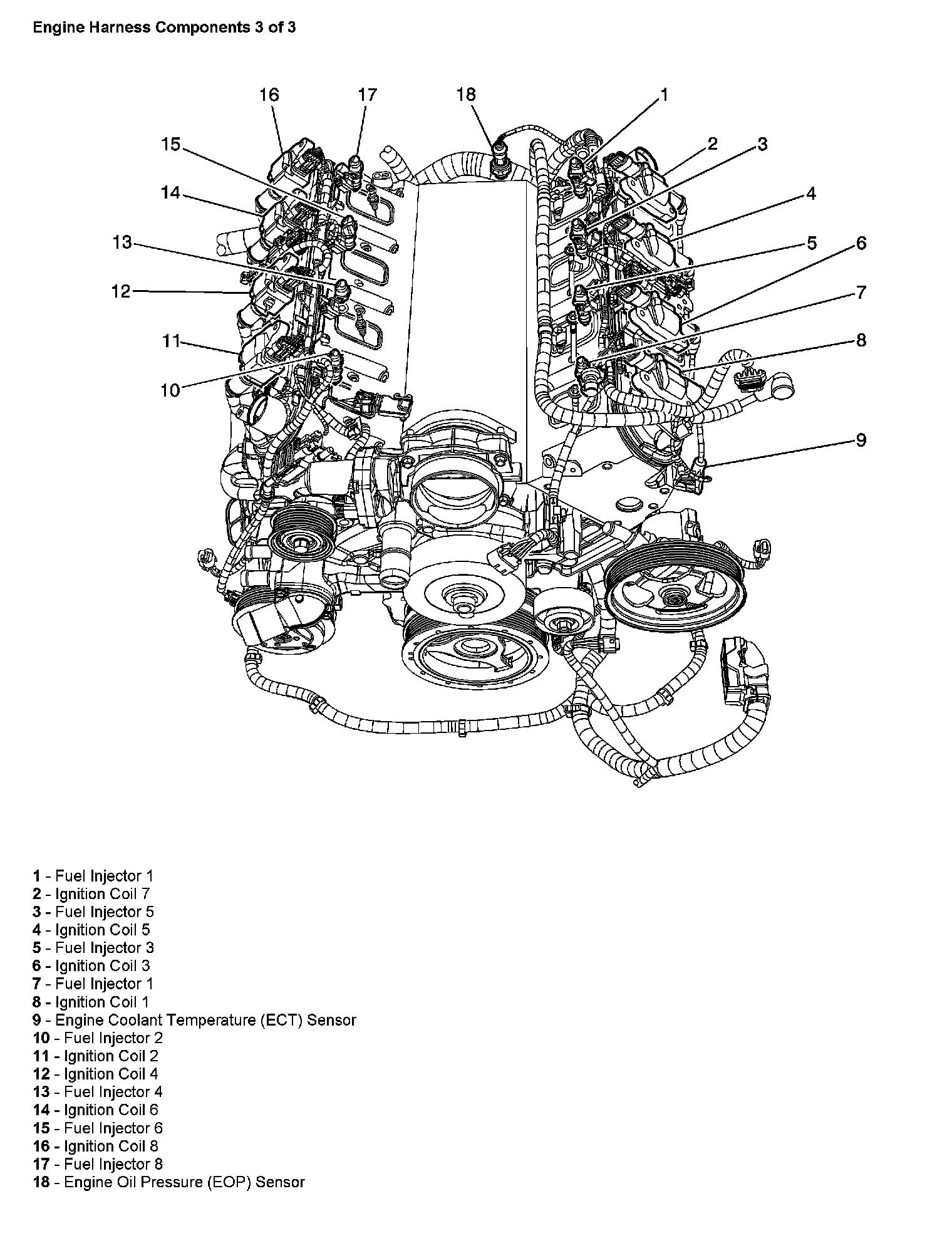

Engine Harness Components Part 3:
