Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Lamp Views
Lamp Views

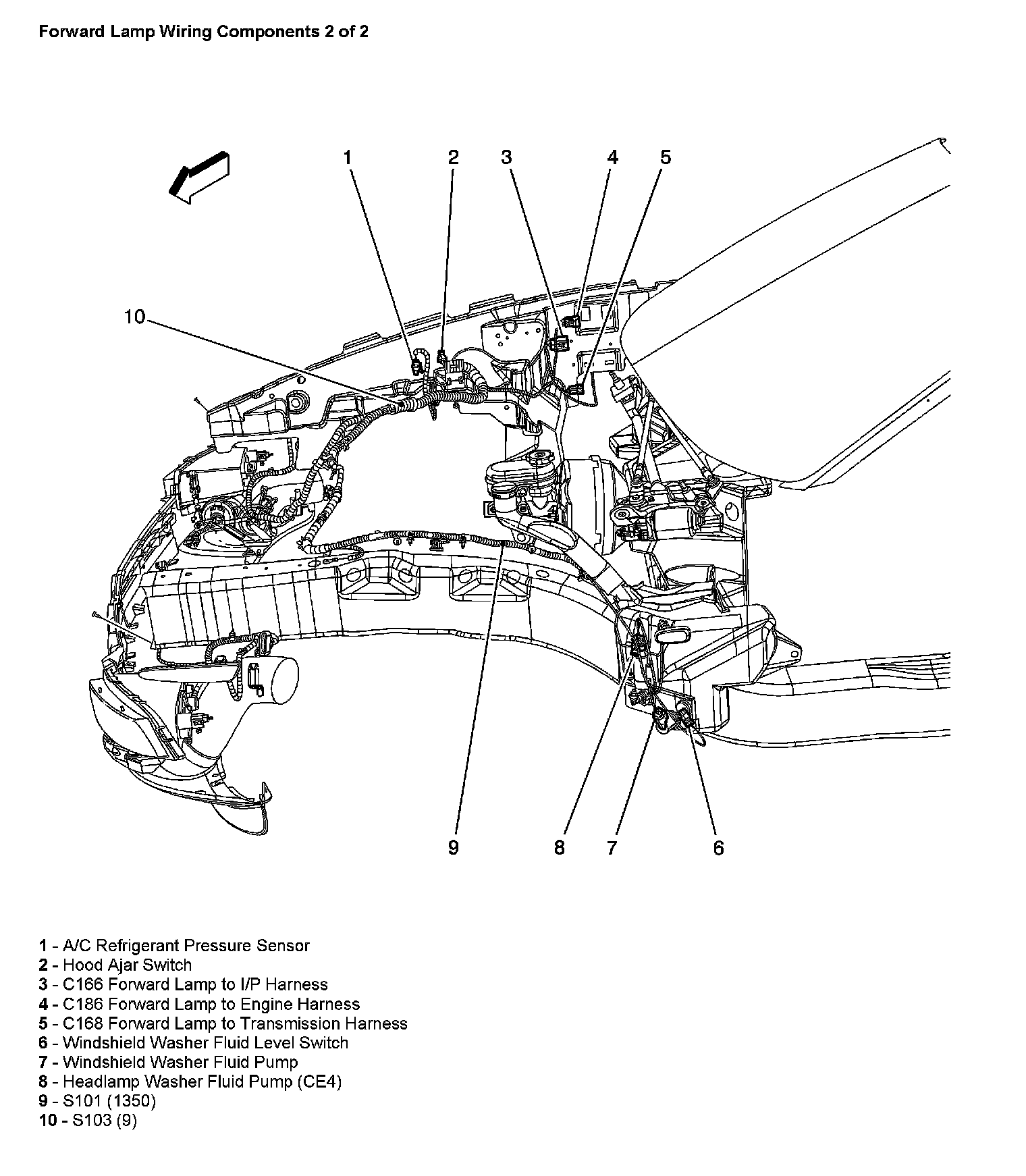

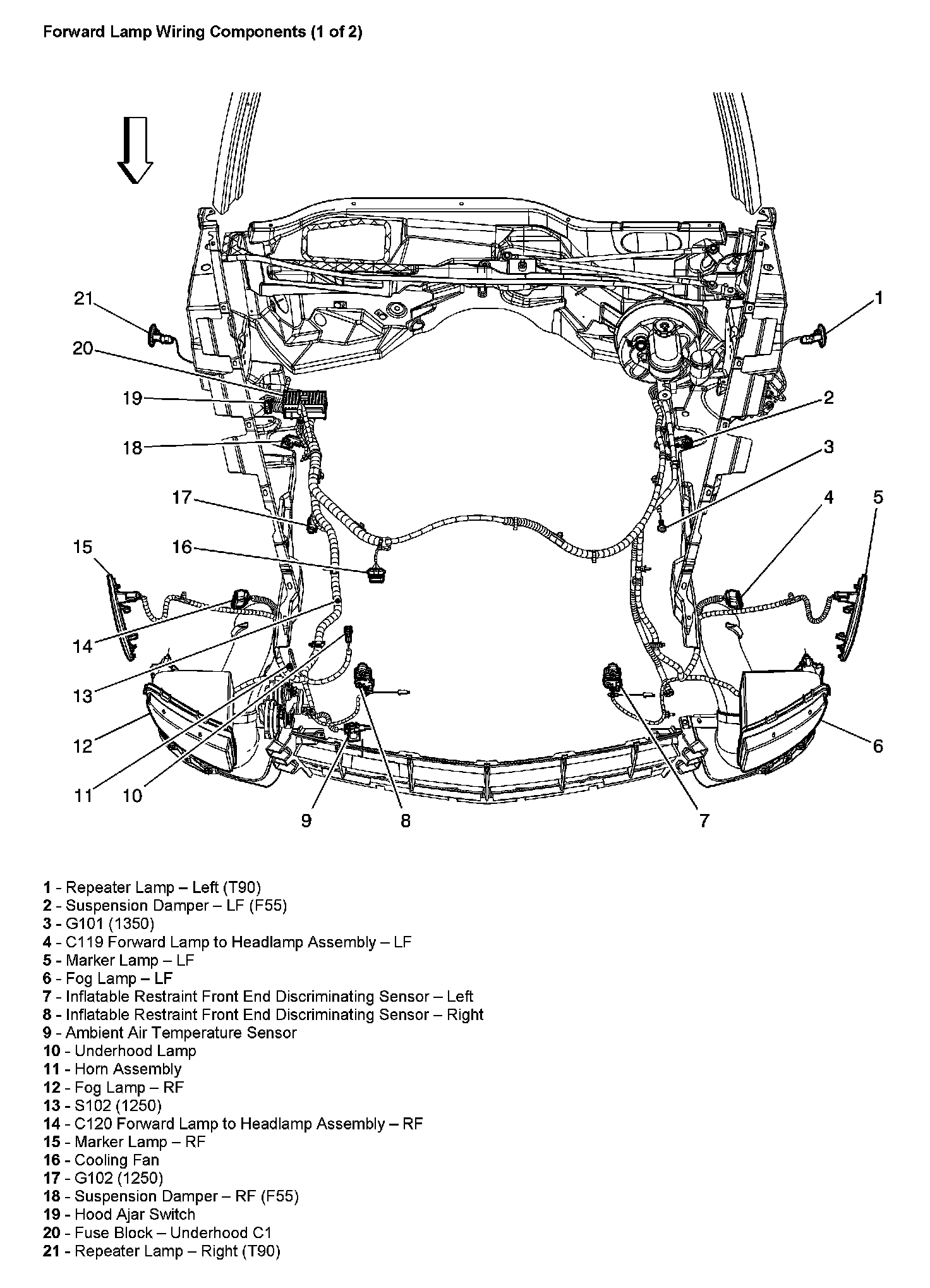

Forward Lamp Wiring Components:
Forward Lamp Wiring Components:
