Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications

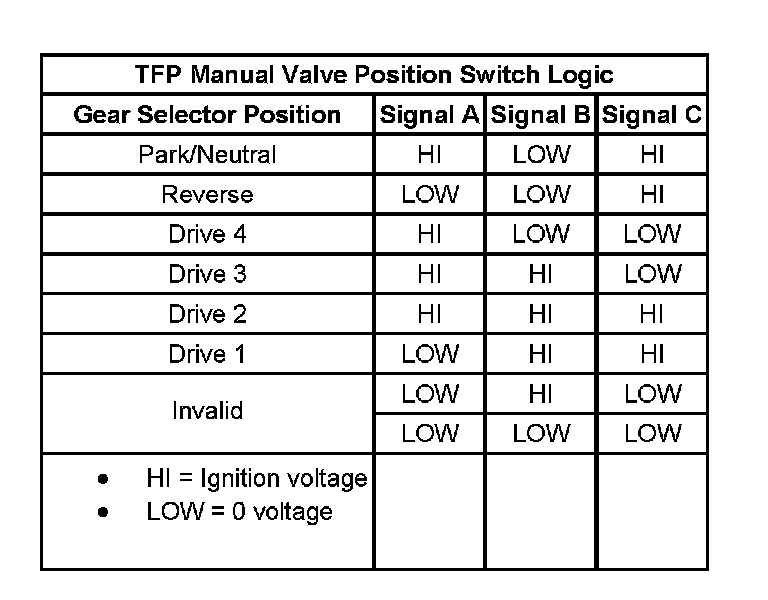

TFP Manual Valve Position Switch Logic:

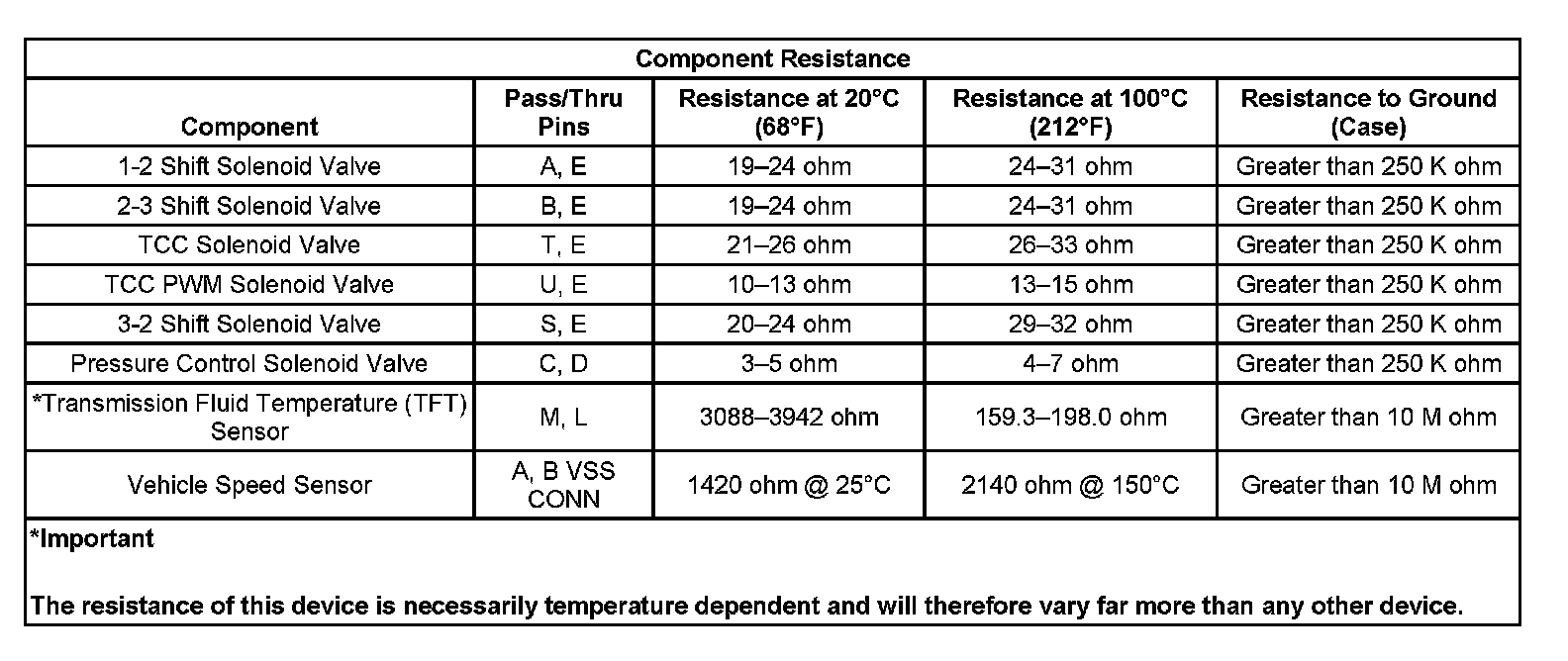

Component Resistance:
