Control Module: Locations

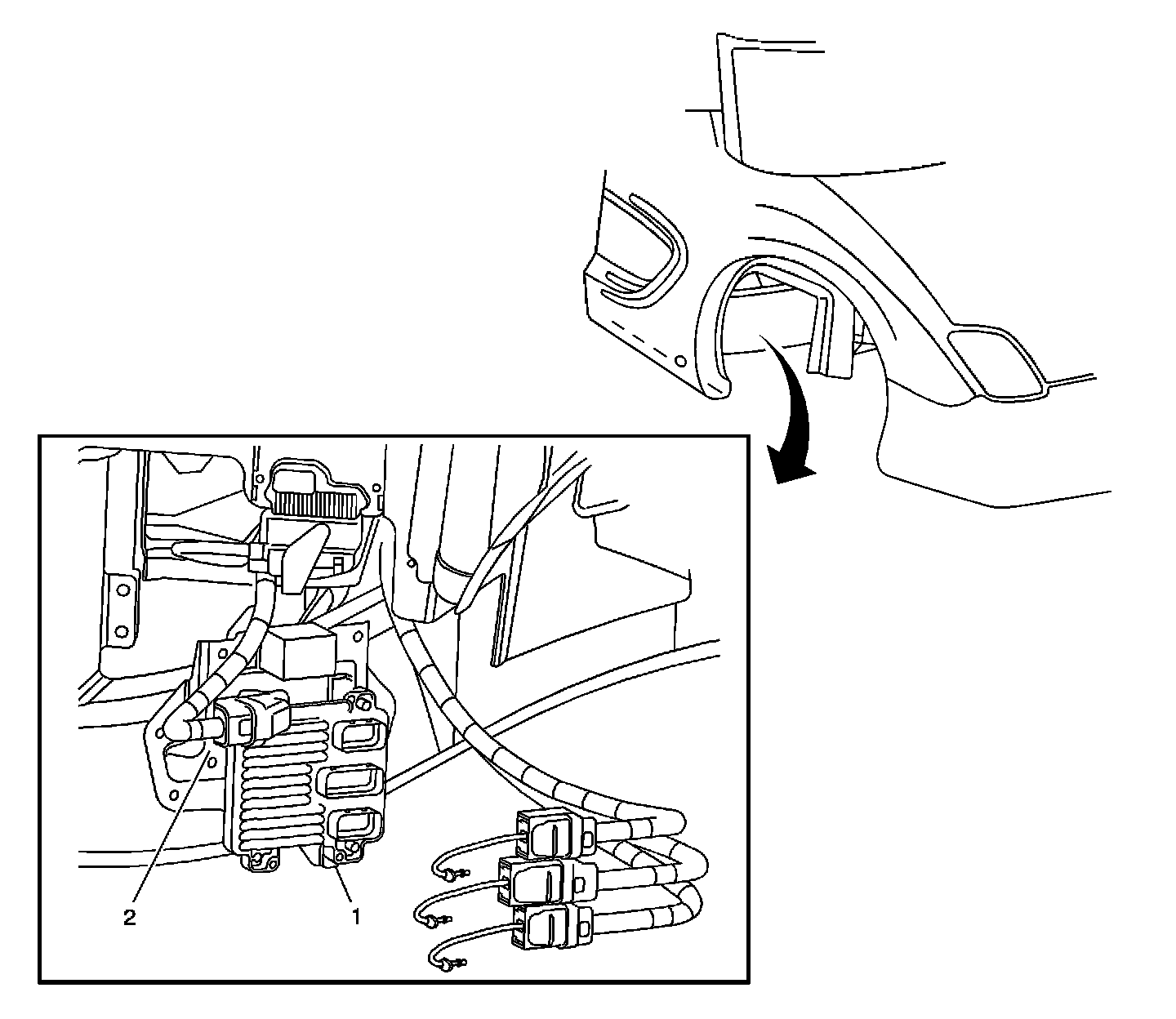

Transmission Control Module (TCM)





1 - Engine Control Module (ECM)
2 - Transmission Control Module (TCM)
