Alarm Module: Service and Repair

Theft Deterrent Module Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

2. Remove the knee bolster. Refer to Knee Bolster Replacement Knee Bolster Replacement in Interior Trim.

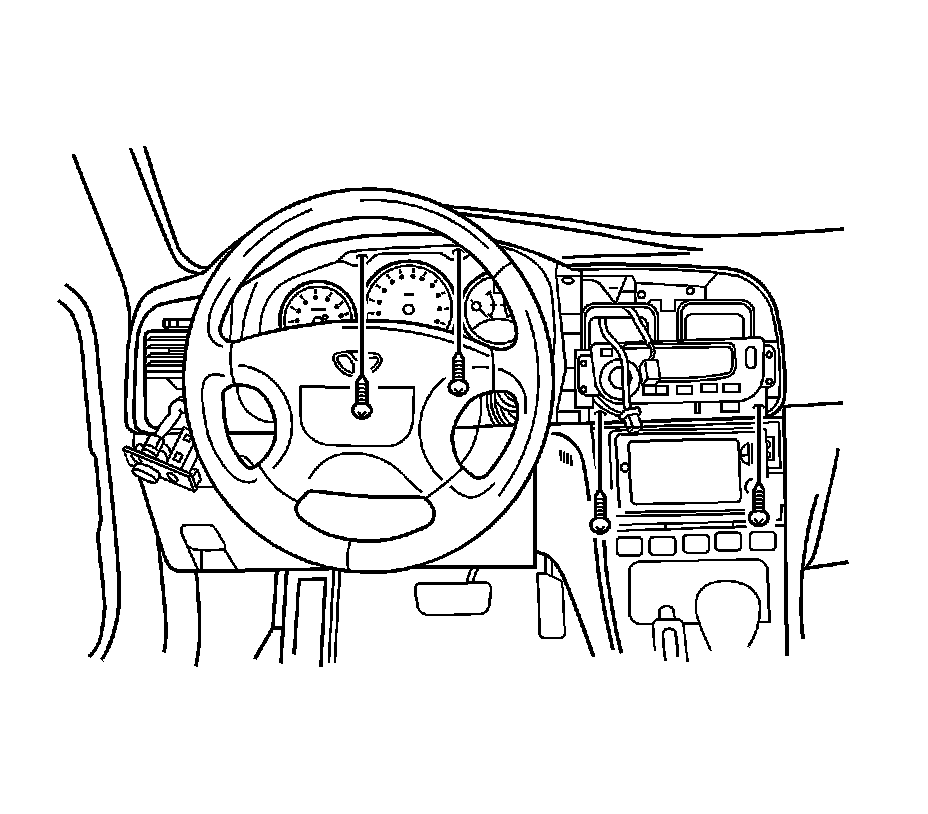

3. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement Instrument Cluster Trim Panel Replacement in Instrument Panel, Gauges, and Console.

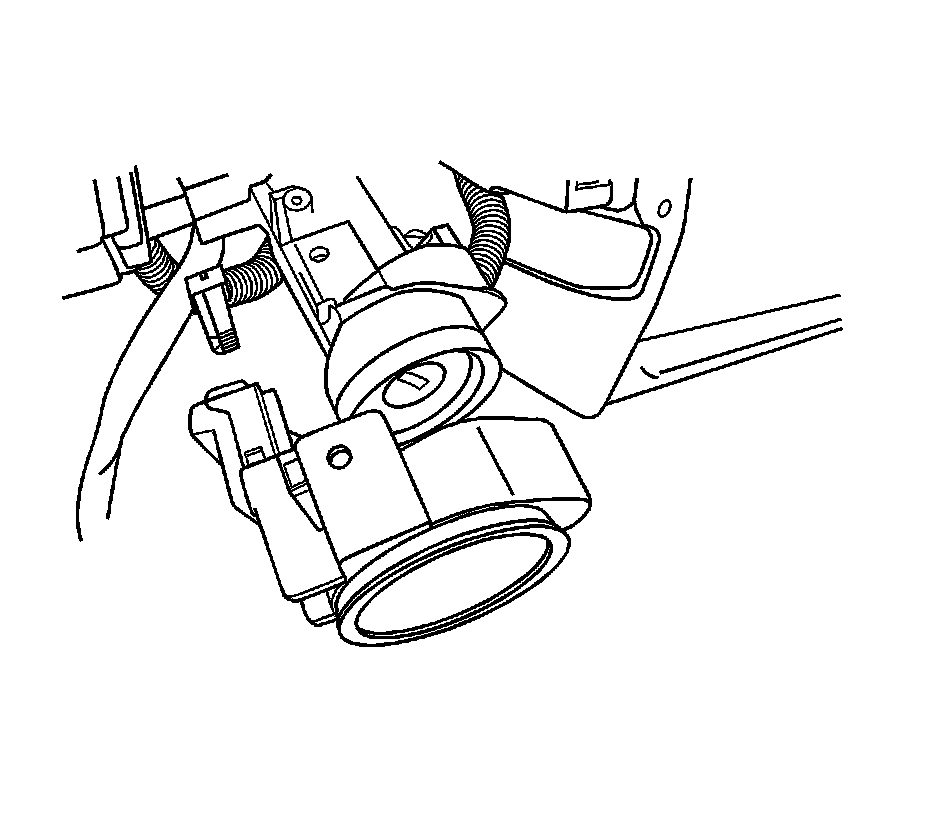

4. Remove the steering column upper and lower cover.

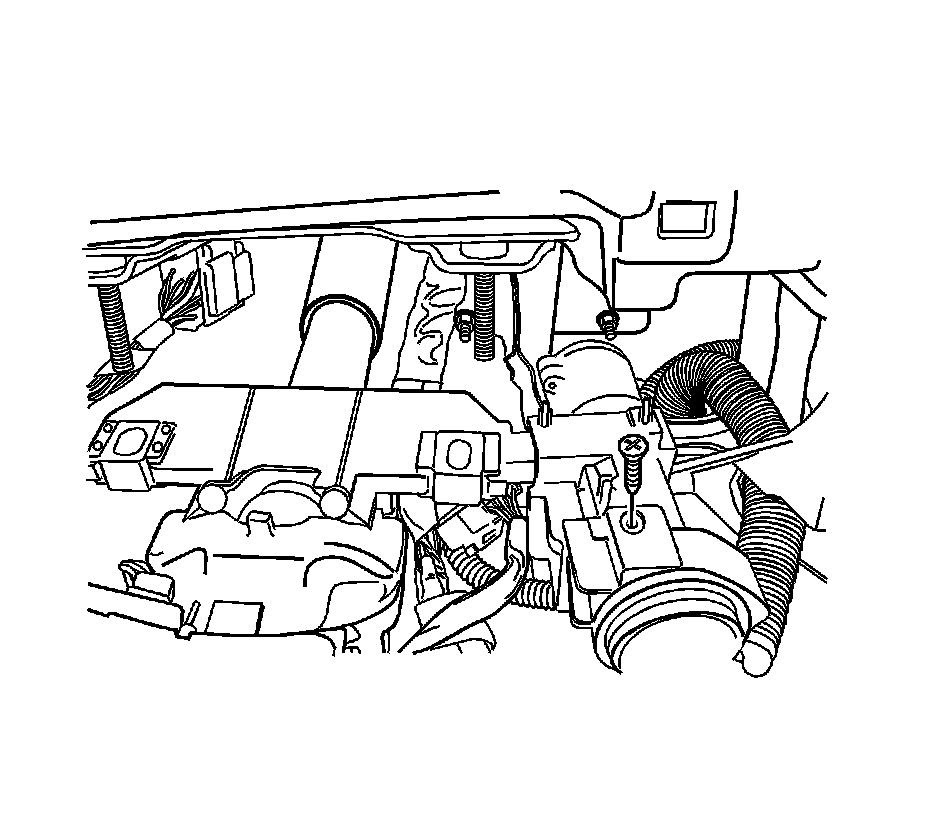

5. Remove the nuts and the bolts securing the steering column.

6. Disconnect the steering column electrical connector.

7. Lower the steering column.





8. Remove the screw and the head amp (immobilizer de-modulator).

Installation Procedure





1. Install the head amp (immobilizer de-modulator) with the screw.





2. Raise the steering column.

3. Connect the steering column electrical connector.

Notice:
Refer to Fastener Notice Fastener Notice in Cautions and Notices.

4. Install the nuts and the bolts securing the steering column.

5. Install the steering column upper and lower cover.

* Tighten the steering column nuts to 22 Nm(16 lb ft).

* Tighten the steering column bolts to 22 Nm (16 lb ft).





6. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement Instrument Cluster Trim Panel Replacement in Instrument Panel, Gauges, and Console.

7. Install the knee bolster. Refer to Knee Bolster Replacement Knee Bolster Replacement in Interior Trim.

8. Connect the negative battery cable.
