Structure Identification
Structure Identification

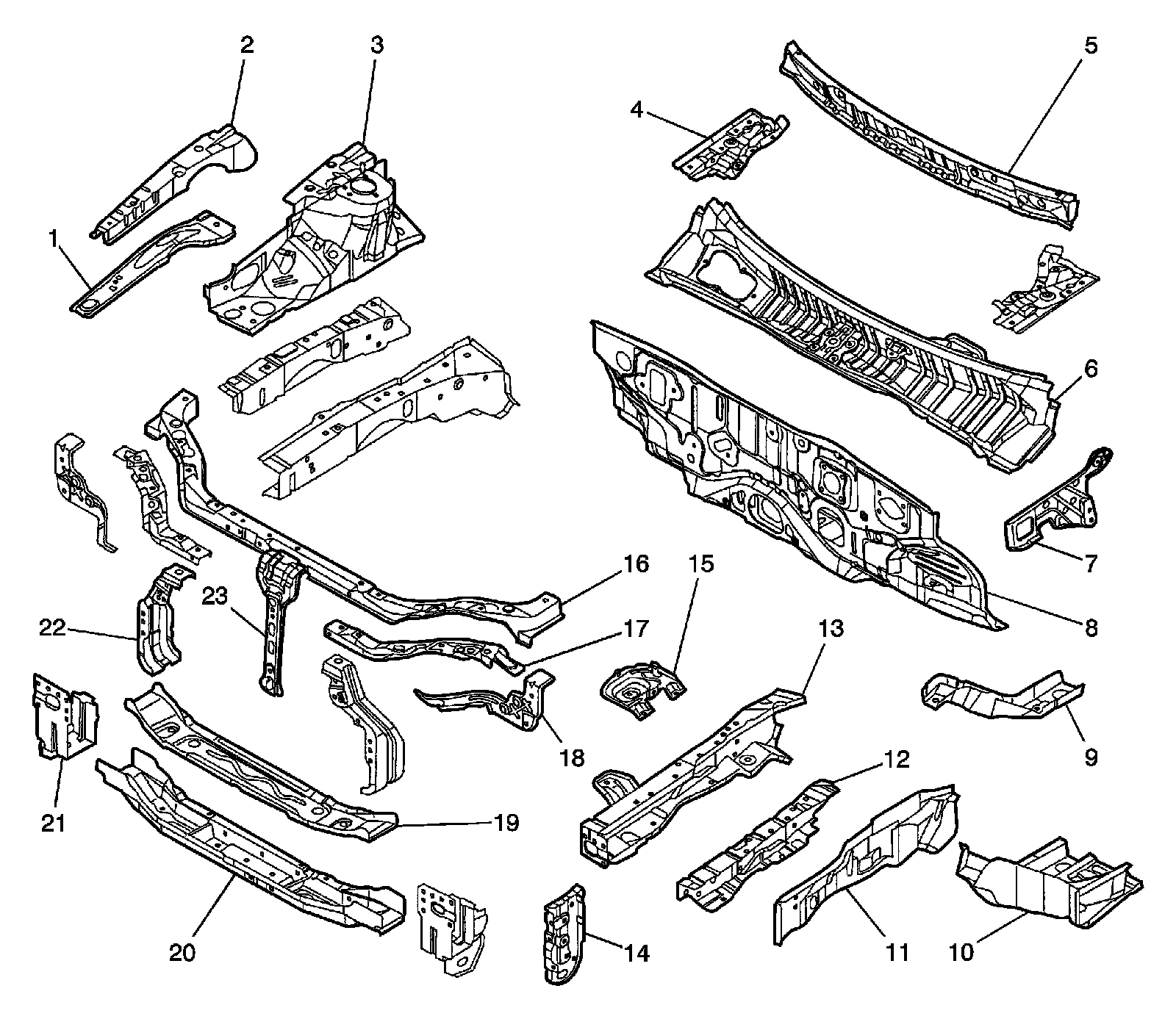

1 of 4
1 - Front Wheel House Patch
2 - Front Wheel House Brace
3 - Rear Wheel House
4 - Reinforce Hood Hinge
5 - Upper Dash Reinforce
6 - Dash Panel Upper
7 - Extension Front Wheel House Brace
8 - Lower Dash Panel
9 - Longitudinal Front Brace Reinforce
10 - Longitudinal Front Brace
11 - Front Longitudinal Plate
12 - Front Longitudinal Reinforce
13 - Front Longitudinal
14 - Radiator Crossmember Lower Brace - Outer
15 - Battery Tray
16 - Upper Front Panel
17 - Upper Front Reinforce
18 - Support Head Lamp Panel
19 - Radiator Crossmember Upper
20 - Radiator Crossmember Lower
21 - Radiator Crossmember Lower Brace - Inner
22 - Radiator Crossmember Bridge
23 - Front Support Panel

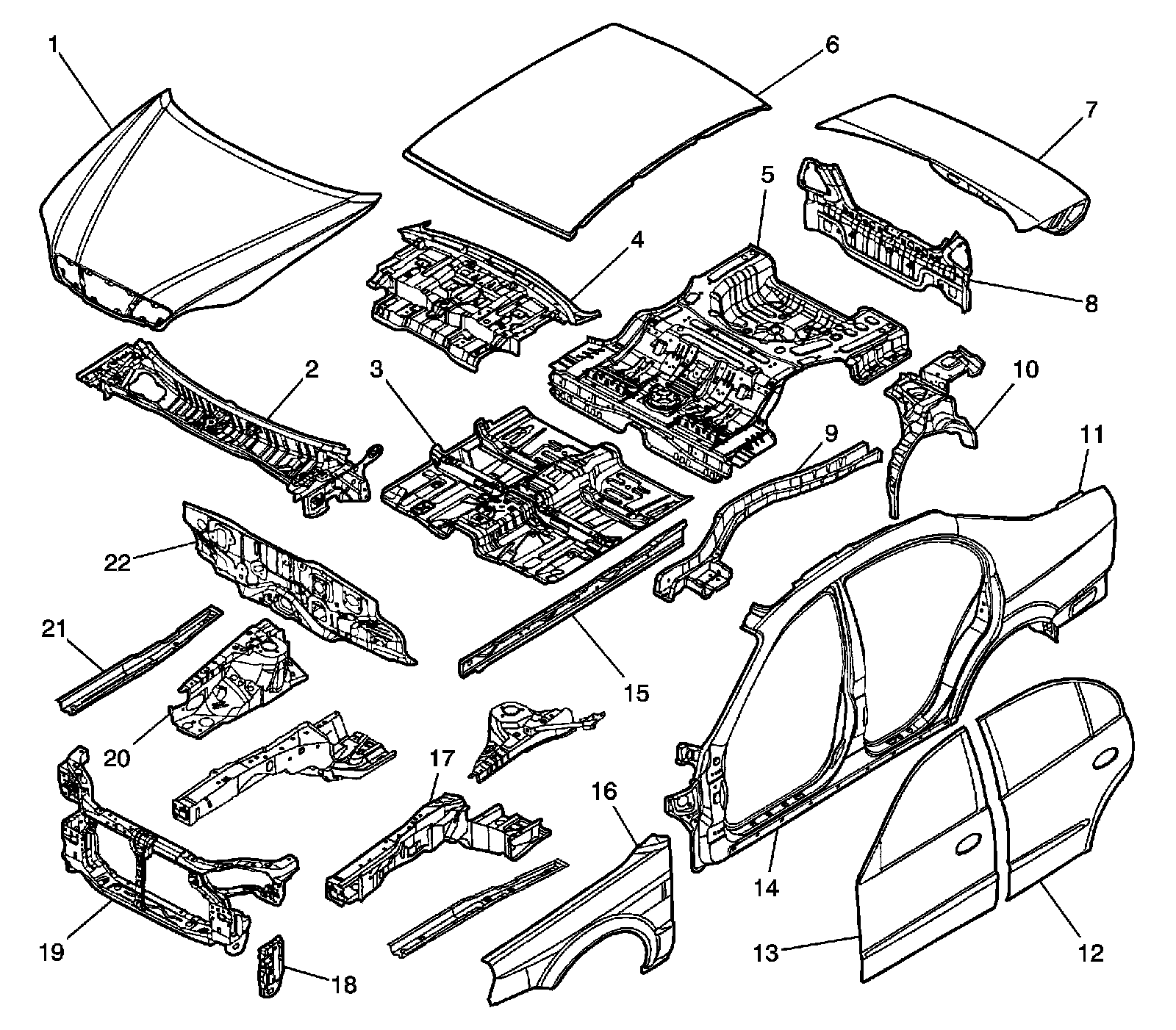

2 of 4
1 - Hood
2 - Panel Dash Upper
3 - Panel Floor Front
4 - Back Panel Upper
5 - Panel Floor Rear
6 - Roof
7 - Trunk Lid
8 - Back Panel Lower
9 - Rear Longitudinal
10 - Rear Wheel House
11 - Panel Side Outer
12 - Rear Door
13 - Front Door
14 - Frame Door Opening
15 - Panel Floor Side
16 - Fender
17 - Front Longitudinal
18 - Tie Front
19 - Front Panel
20 - Front Wheel House
21 - Longitudinal Floor Lower
22 - Panel Dash Lower

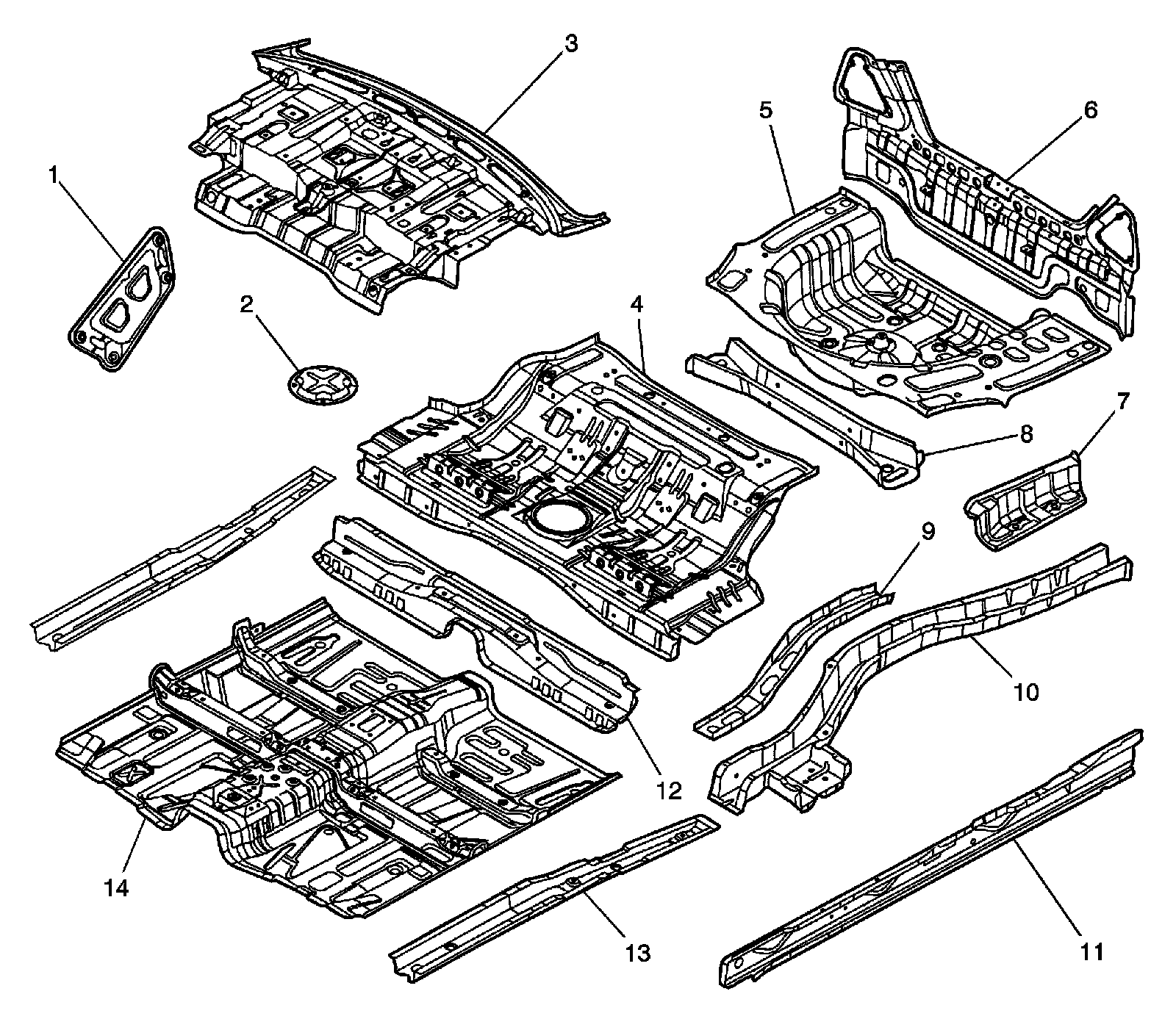

3 of 4
1 - Bulk Head Rear
2 - Fuel Tank Cover
3 - Upper Back Panel
4 - Front Rear Floor Panel
5 - Rear Rear Floor Panel
6 - Lower Back Panel
7 - Side Rear Floor Patch
8 - Rear Rear Floor Crossmember
9 - Rear Longitudinal Reinforce
10 - Rear Longitudinal
11 - Side Floor Panel
12 - Rear Front Floor
13 - Lower Floor Longitudinal
14 - Front Floor Panel

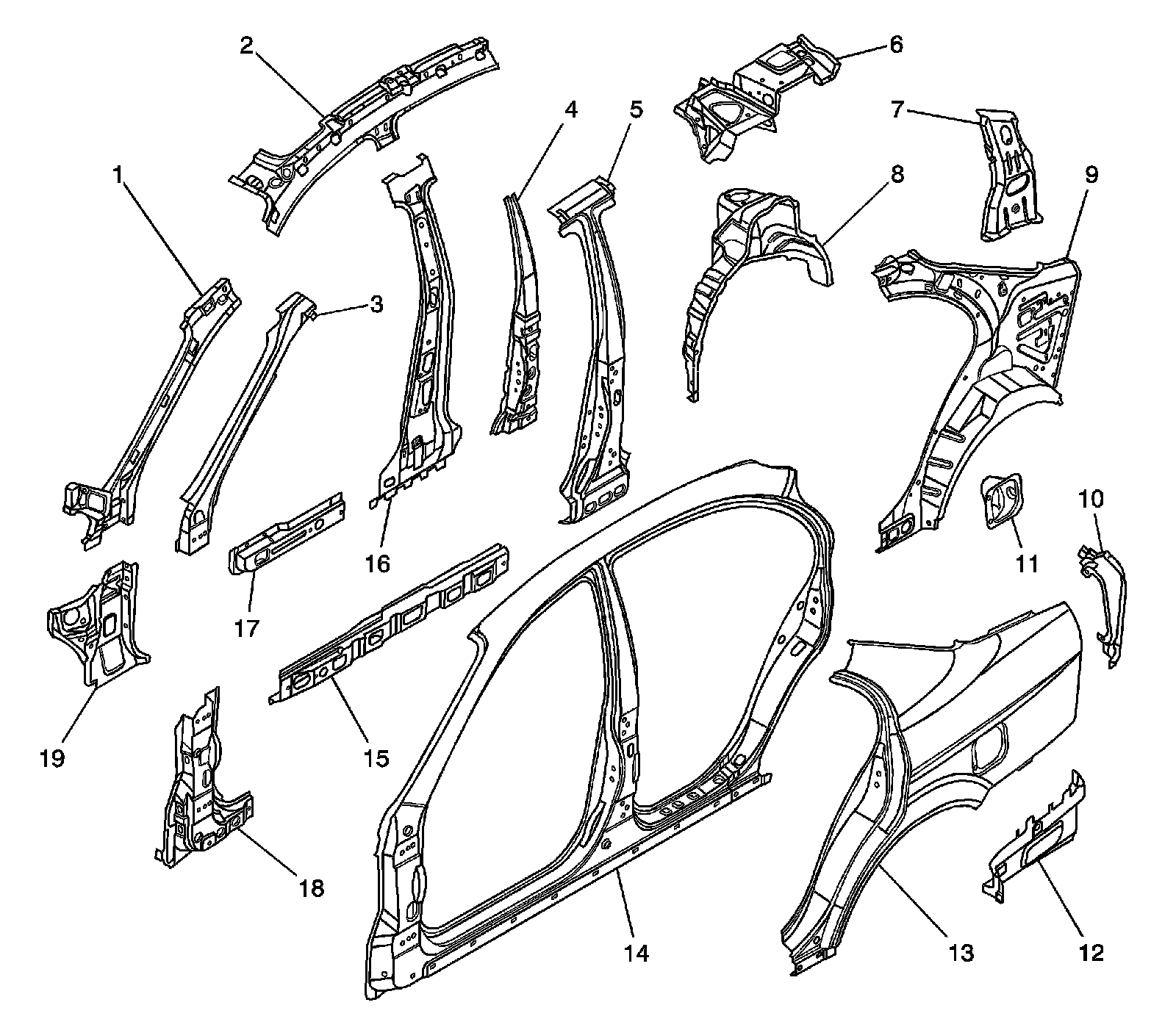

4 of 4
1 - Upper Inner Front Body Pillar
2 - Roof Inner Side Frame
3 - Upper Front Windshield Pillar Reinforcement
4 - Attachment Hinge Reinforcement
5 - Center Pillar Reinforcement
6 - Inner Wheel House Brace
7 - Rear Pillar Reinforce
8 - Inner Wheel House
9 - Side Inner Panel
10 - Tail Lamp Housing Patch
11 - Cap Fuel Pillar (Right Side)
12 - Lower Side Outer Panel
13 - Side Outer Panel
14 - Door Opening Frame
15 - Locker Reinforcement
16 - Inner Center Pillar
17 - Locker Reinforcement Extension
18 - Lower Front Pillar Reinforcement
19 - Lower Inner Front Body Pillar
