Diagnostic System Check - Remote Keyless Entry

Diagnostic System Check - Remote Keyless Entry

Test Description

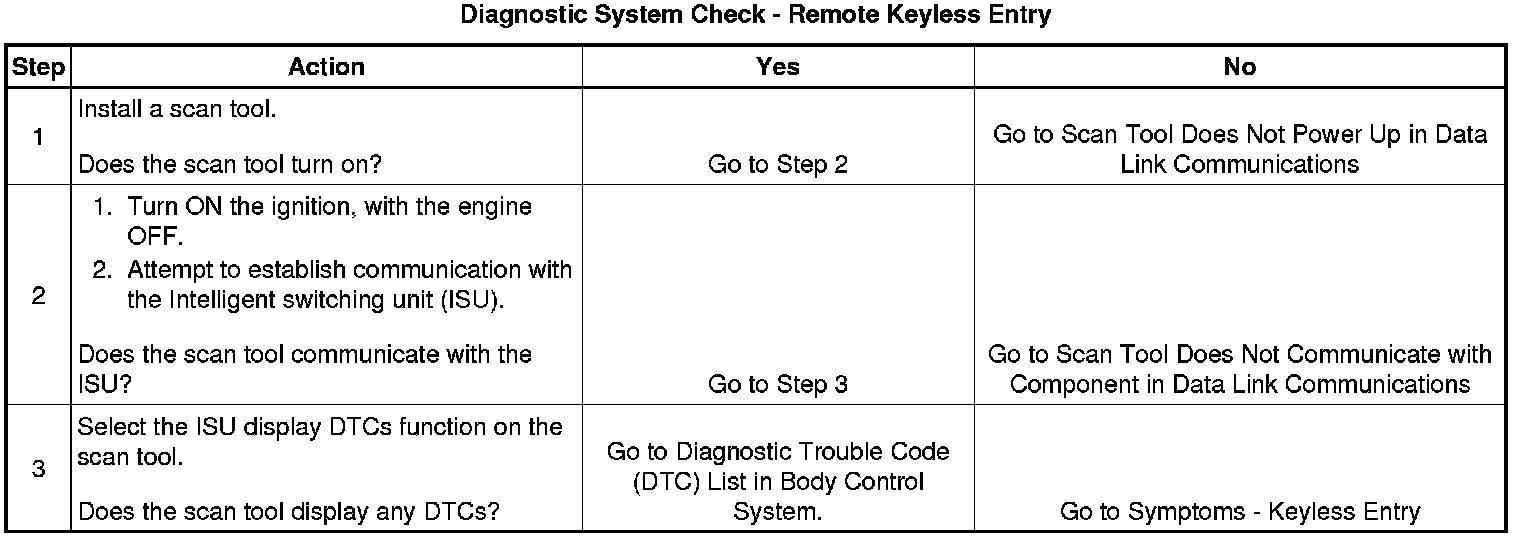

The numbers below refer to the step numbers on the diagnostic table.

2.

The lack of communication may be caused by a partial or a total malfunction of the circuit containing the class 2 serial data. The specified procedure will determine the particular condition.
