Trunk / Liftgate Lock Cylinder: Service and Repair

Rear Compartment Lid Lock Cylinder Replacement

Removal Procedure

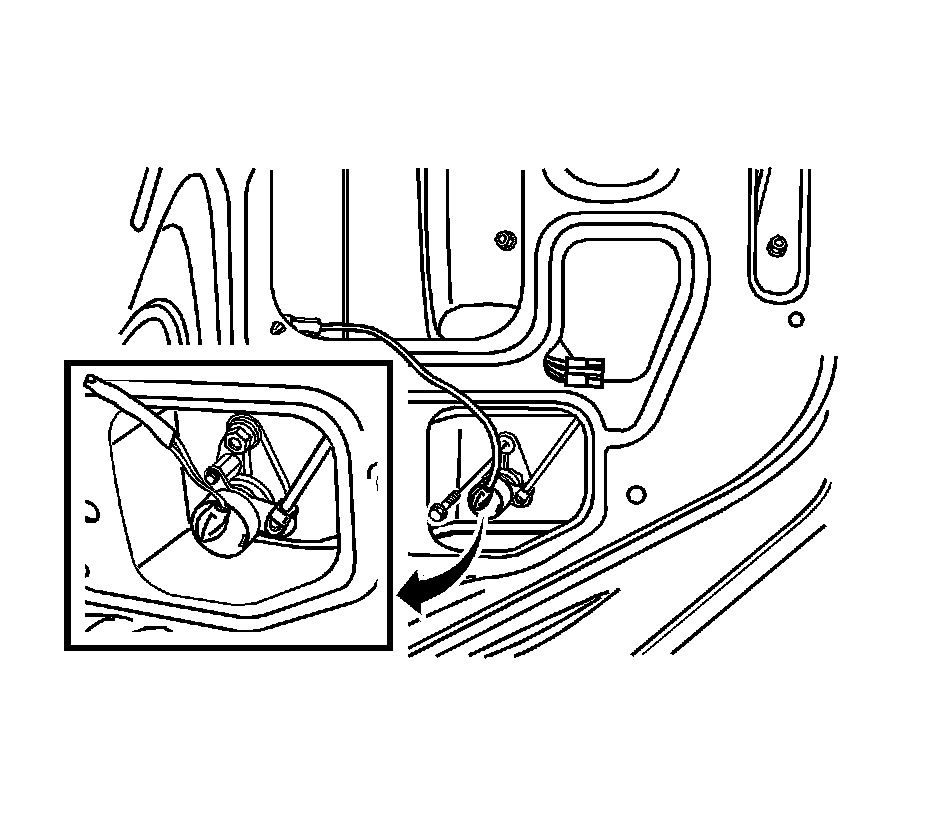

1. Remove the bolt securing the lock cylinder.

2. Disconnect the lock rod.

3. Disconnect the electrical connector.

4. Remove the luggage compartment lock cylinder.

Installation Procedure





1. Install the luggage compartment lock cylinder.

2. Connect the electrical connector.

3. Connect the lock rod.

Notice:
Refer to Fastener Notice Fastener Notice.

4. Secure the luggage compartment lock cylinder with the bolt.

Tighten the luggage compartment lock cylinder bolt to 8 Nm (71 lb in).
