Front Seat Trim Panel Replacement

Front Seat Trim Panel Replacement

Removal Procedure





1. Remove the front bucket seat from the vehicle. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.

2. Remove the screw and the recliner lever.

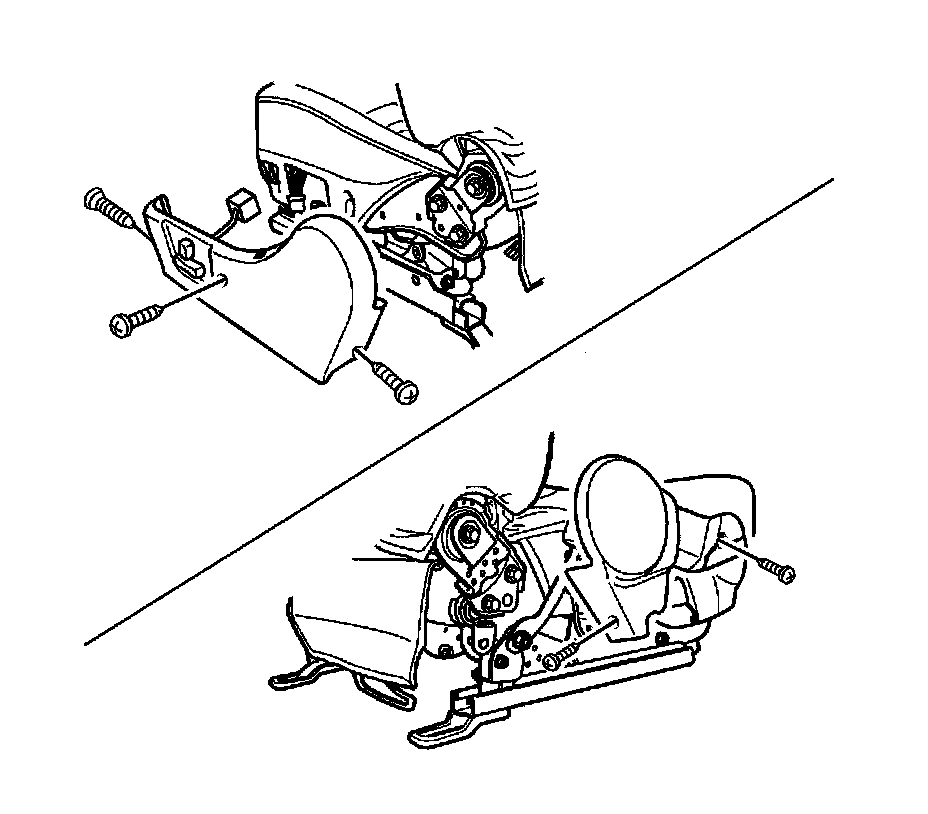

3. Remove the screws and the front seat trim.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the front seat trim with the screws.

Tighten the front seat trim screws to 12 Nm (106 lb in).

2. Install the recliner lever with the screw.

Tighten the seat recliner lever screw to 12 Nm (106 lb in).

3. Install the front bucket seat in the vehicle. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.
