Home
>>
Chevrolet
>>
2005
>>
Epica (CANADA) L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
System Diagram
>>

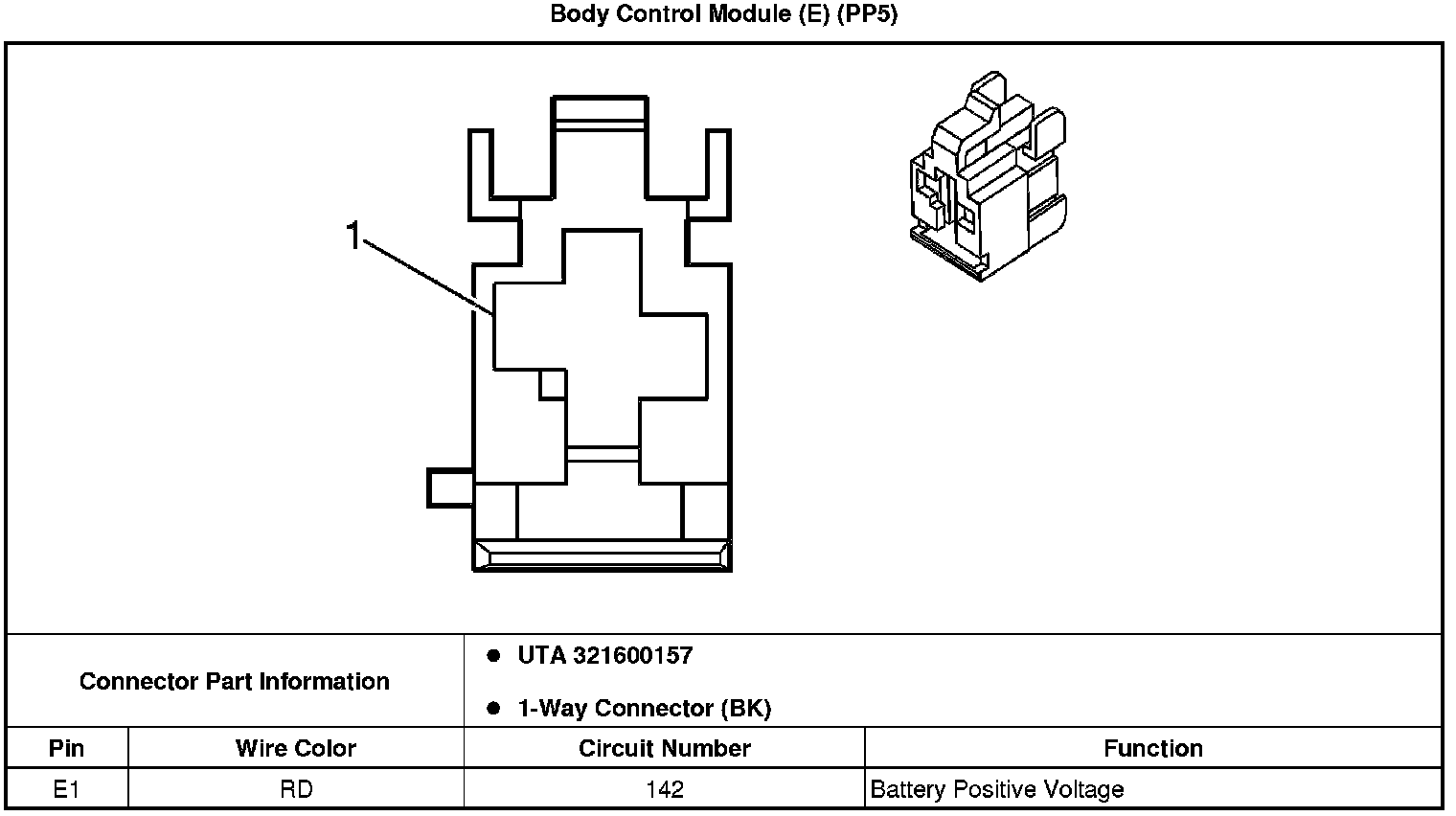

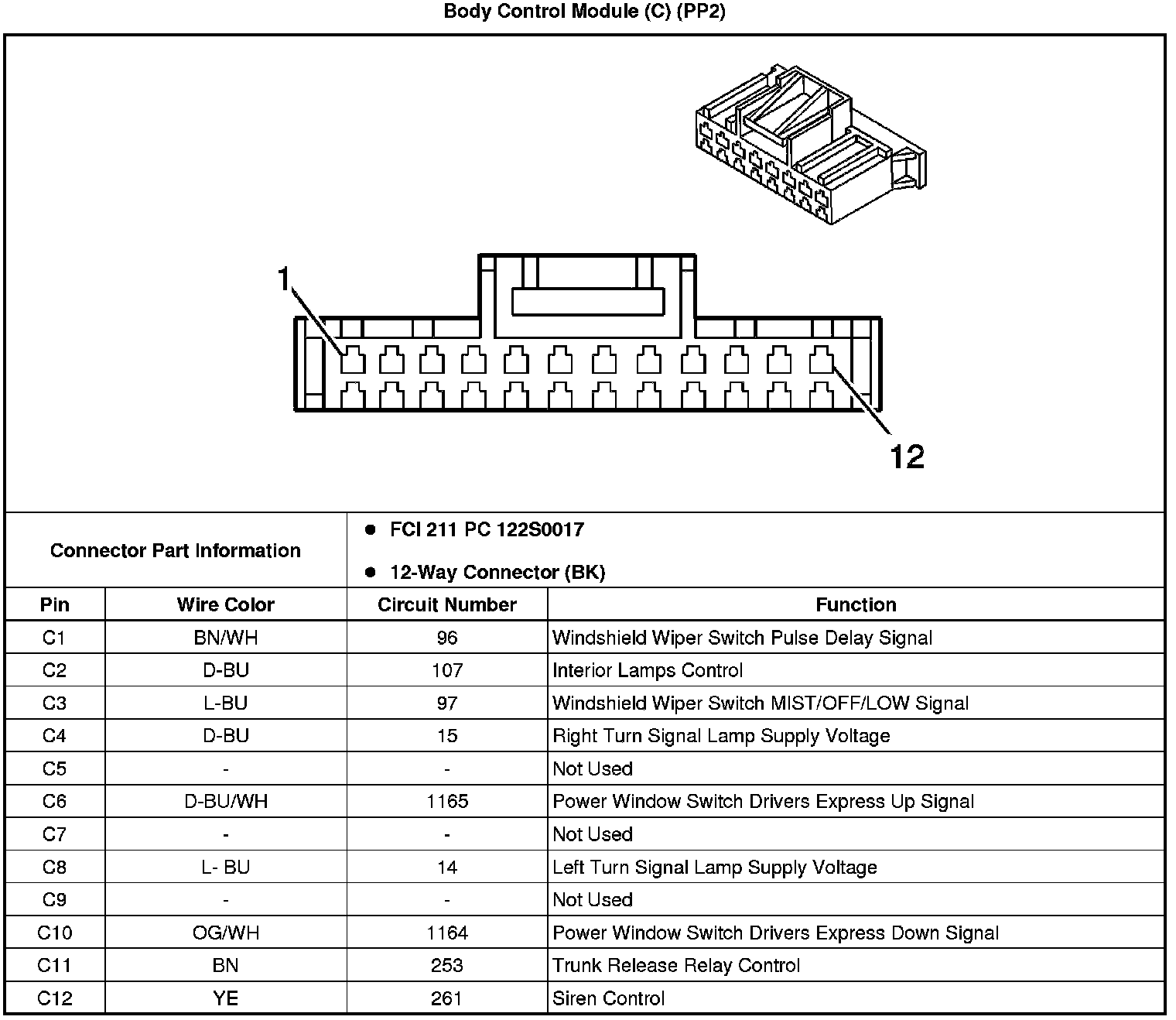

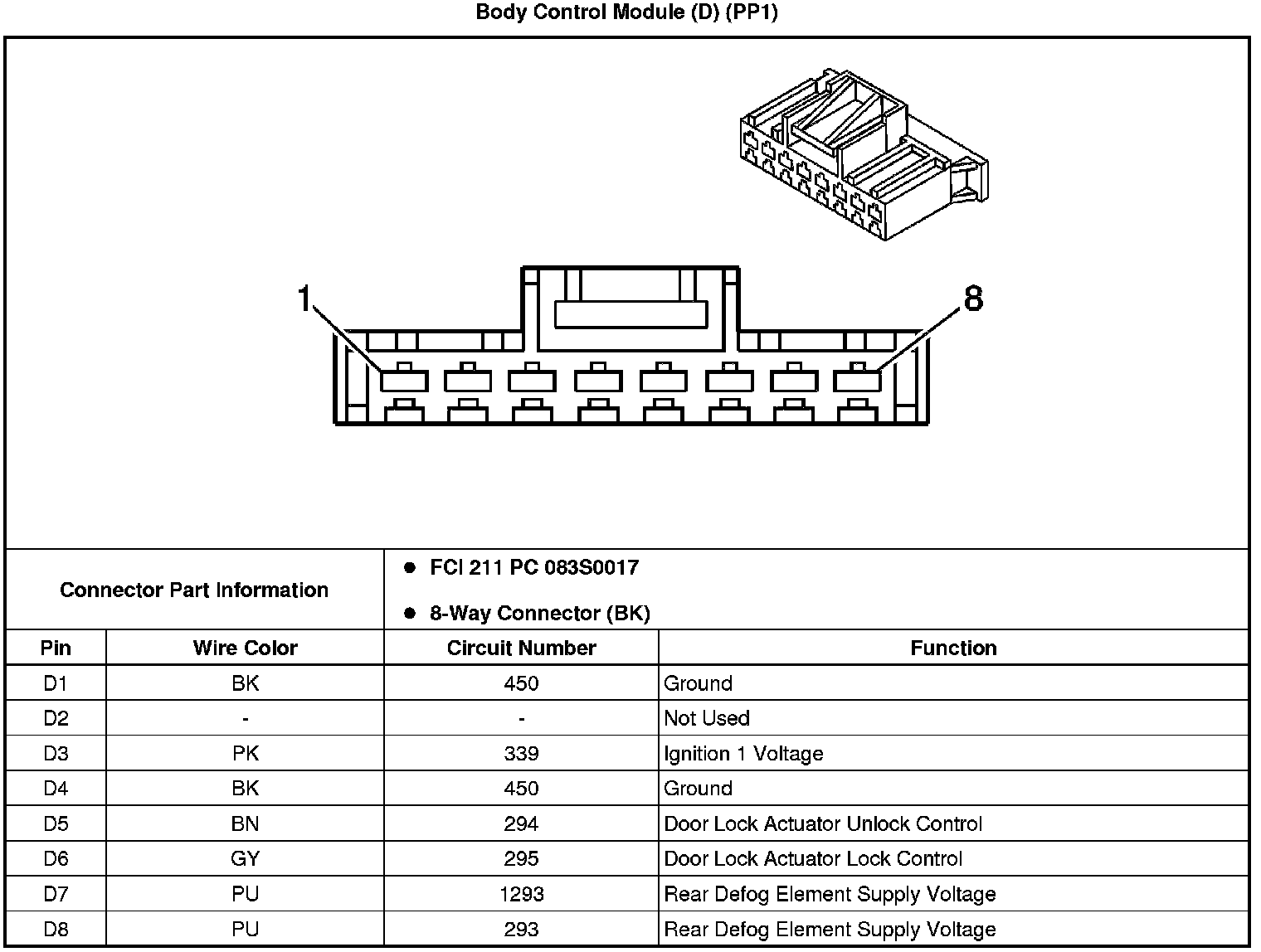

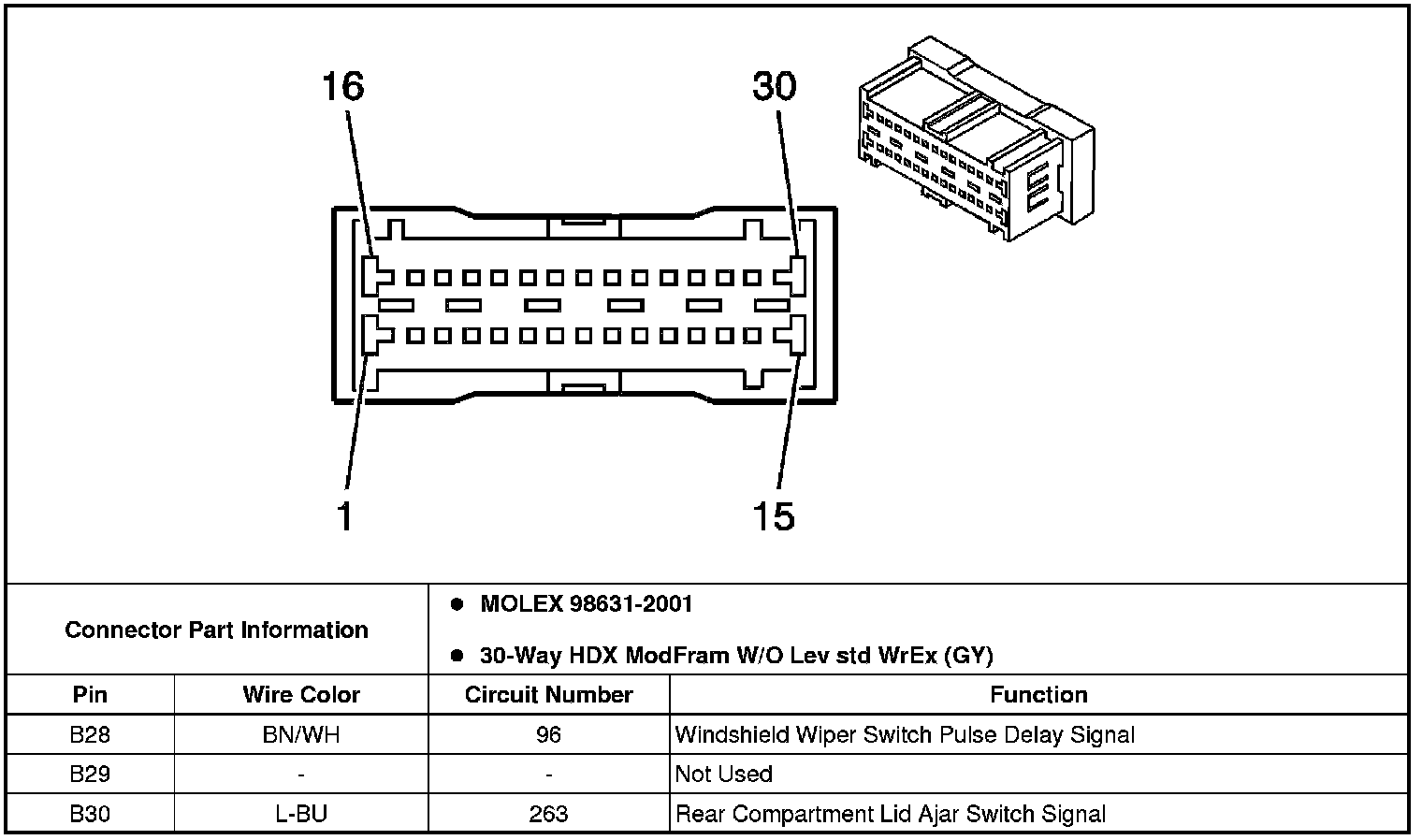

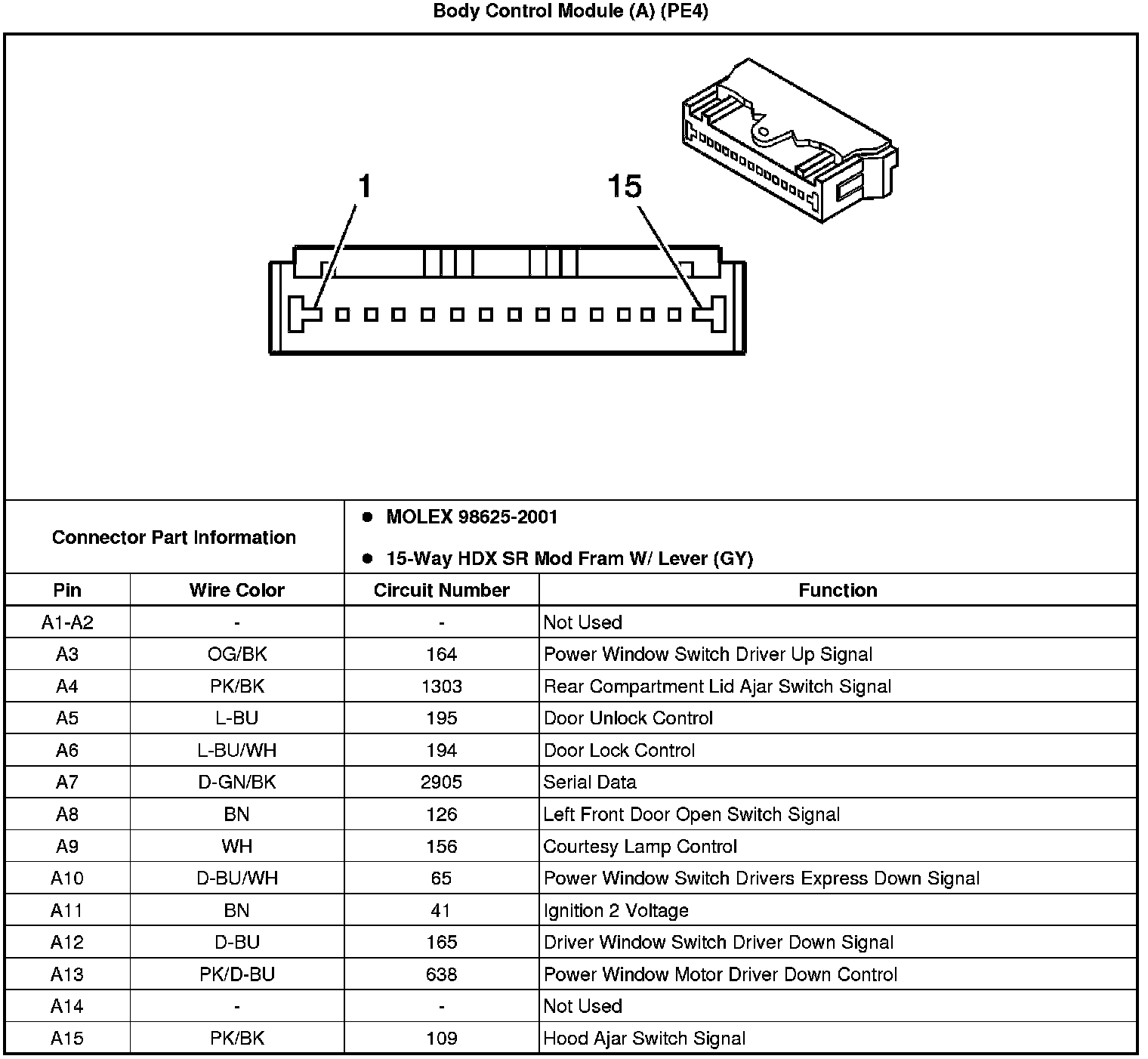

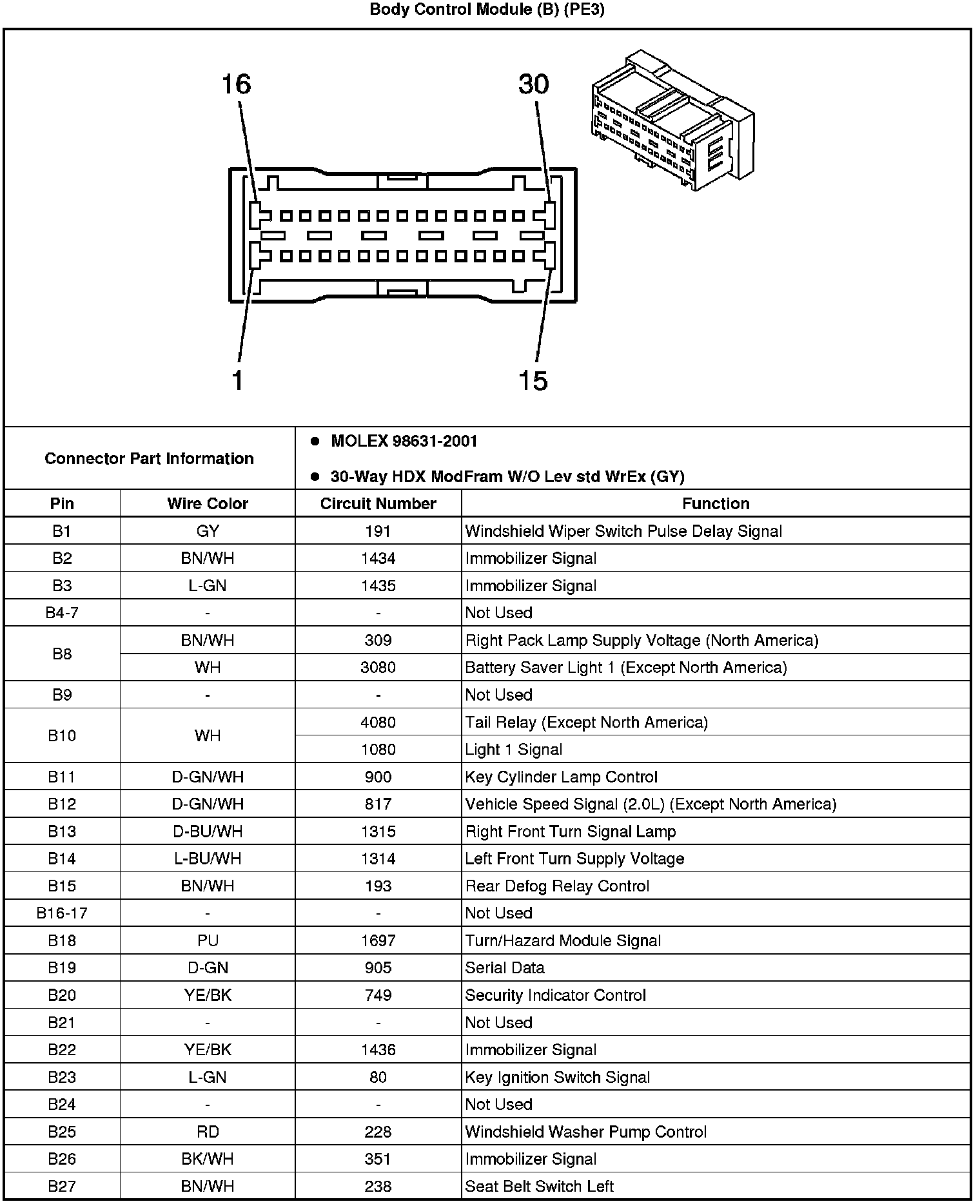

Body Control System Connector End Views
Body Control System Connector End Views
Body Control System Connector End Views
