Suspension

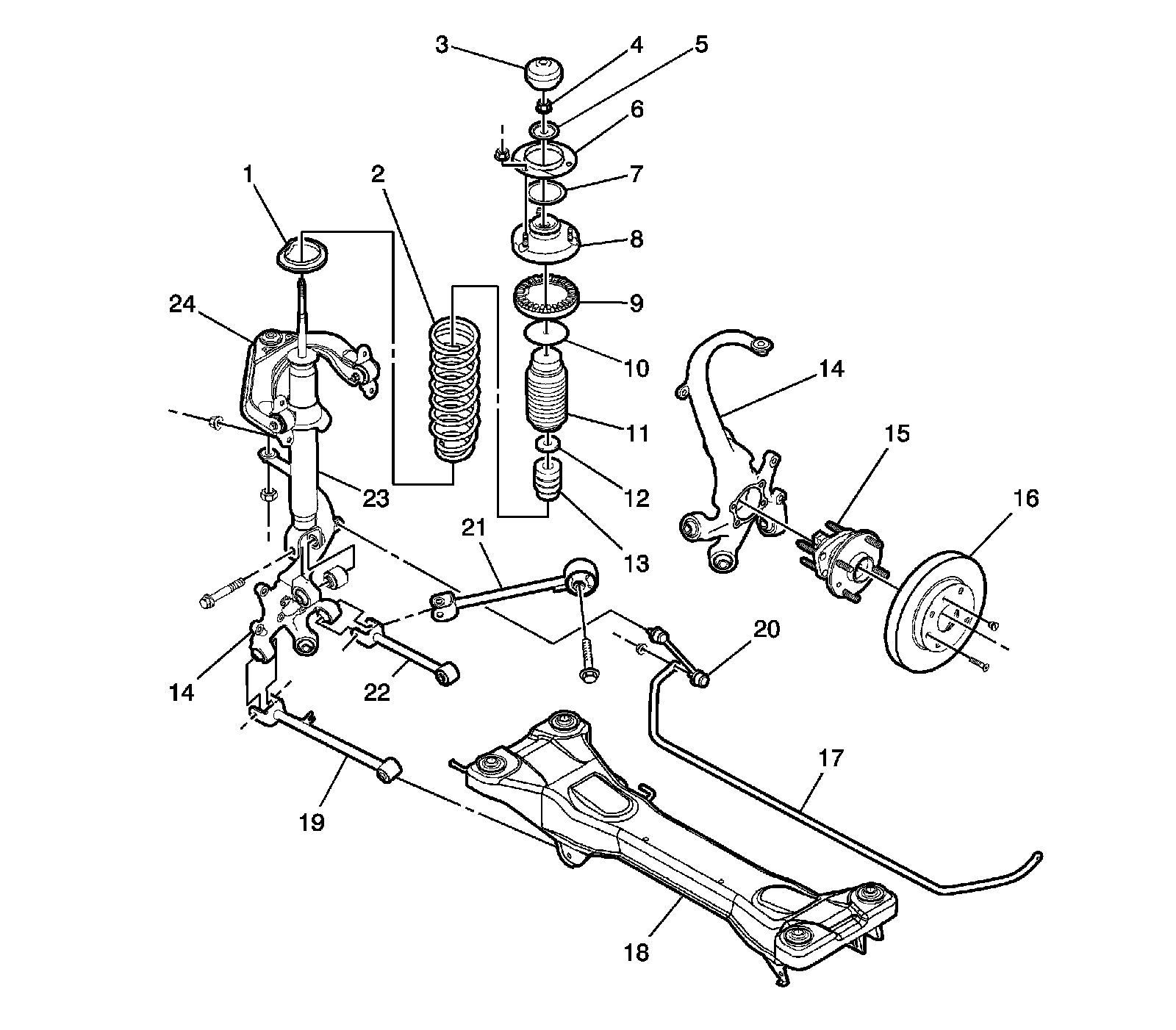

Rear Suspension Disassembled View





1 - Rear Spring Lower Insulator

2 - Rear Spring

3 - Strut Mount Cap

4 - Nut

5 - Washer

6 - Rear Strut Insulator

7 - Ring

8 - Rear Strut Mount

9 - Rear Spring Upper Insulator

10 - Washer

11 - Rear Dust Cover

12 - Stop Bumper Plate

13 - Hollow Bumper

14 - Rear Knuckle

15 - Rear Hub Unit

16 - Rear Disc Brake

17 - Stabilizer Bar

18 - Rear Axle

19 - Front Parallel Link

20 - Stabilizer Link

21 - Rear Trailing Link

22 - Rear Parallel Link

23 - Rear Strut Damper

24 - Upper Arm
