Air Register: Service and Repair

Instrument Panel Air Deflector Replacement

Removal Procedure





1. Remove the instrument panel cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement Instrument Cluster Trim Panel Replacement.

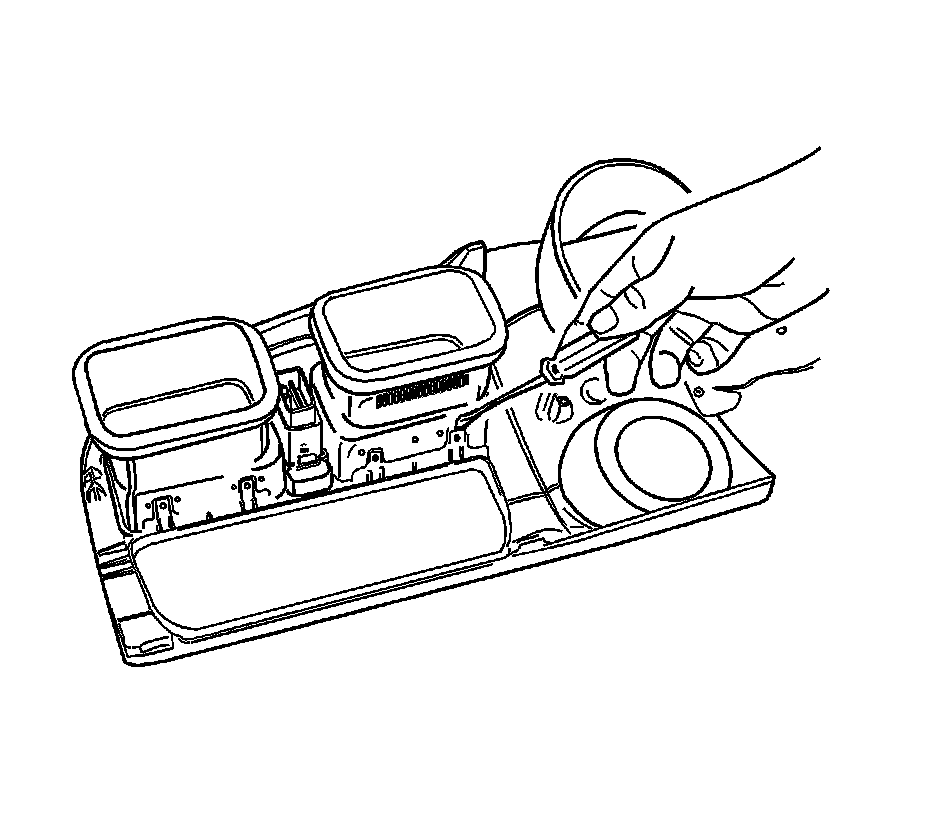

2. Pry off the vents by inserting a screwdriver.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Press the vents onto the housing.

Tighten the instrument panel vent screws to 3 Nm (27 lb in).

2. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement Instrument Cluster Trim Panel Replacement.
