HVAC Control Lamp Bulb Replacement

HVAC Control Lamp Bulb Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the heating and ventilation systems control assembly. Refer to Heater and Air Conditioning Control Replacement Heater and Air Conditioning Control Replacement.

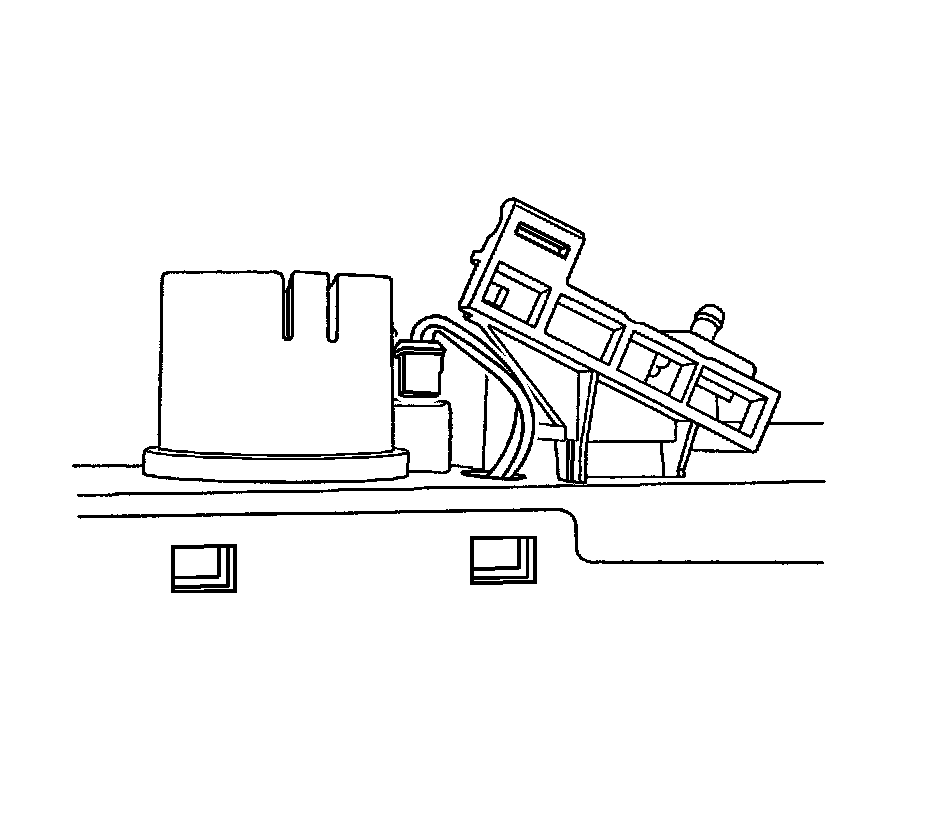

3. Disconnect the small connector to the vacuum control switch on the rear of the assembly case.

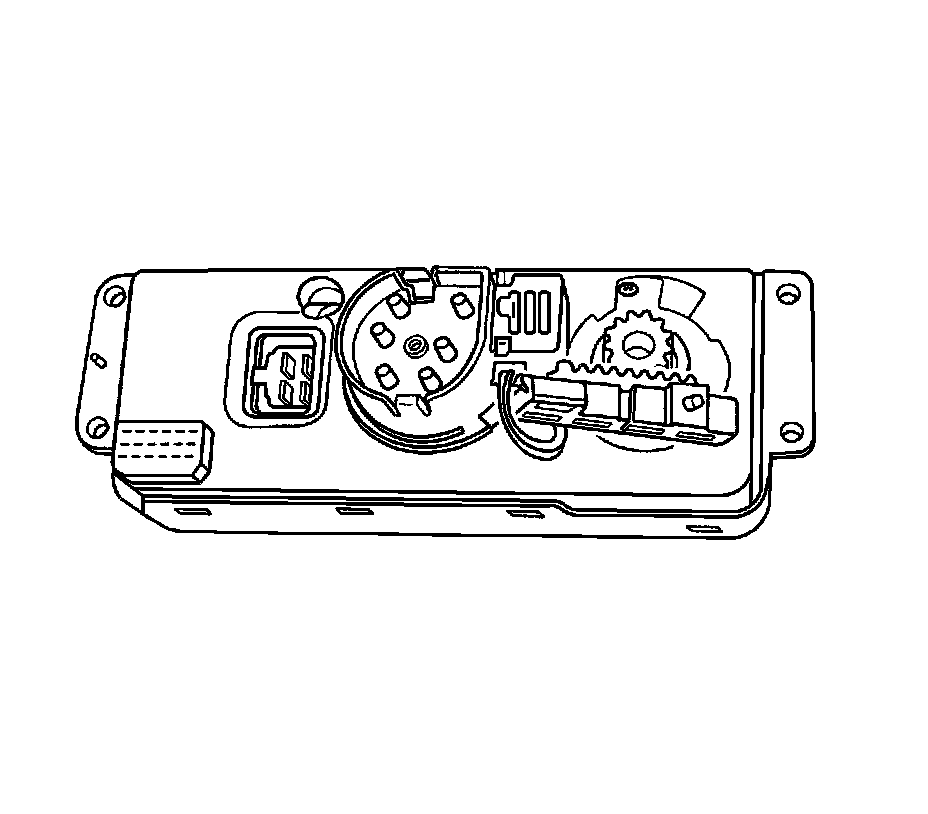

4. Separate the control assembly case halves.

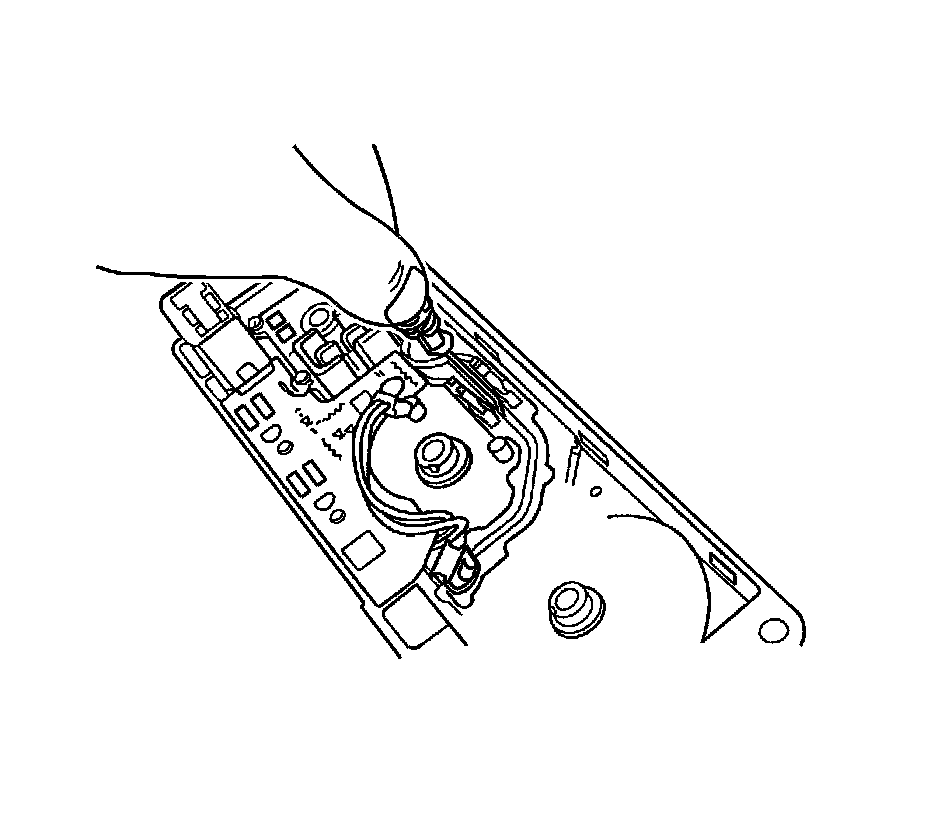

5. Turn the bulb holder to the left and pull out the bulb.

Installation Procedure





1. Install the bulb into the holder and turn the bulb to the right.

2. Install the control assembly case halves.

* Pass the connector for the vacuum switch through the hole in the rear assembly case part.

* Be sure to align the flat mating control shafs of 2 case halves.

3. Install the connector into the vacuum control switch.





4. Install the control assembly. Refer to Heater and Air Conditioning Control Replacement Heater and Air Conditioning Control Replacement.

5. Connect the negative battery cable.

6. Check the knob light for proper operation.
