HVAC Systems - Automatic

HVAC Component Views

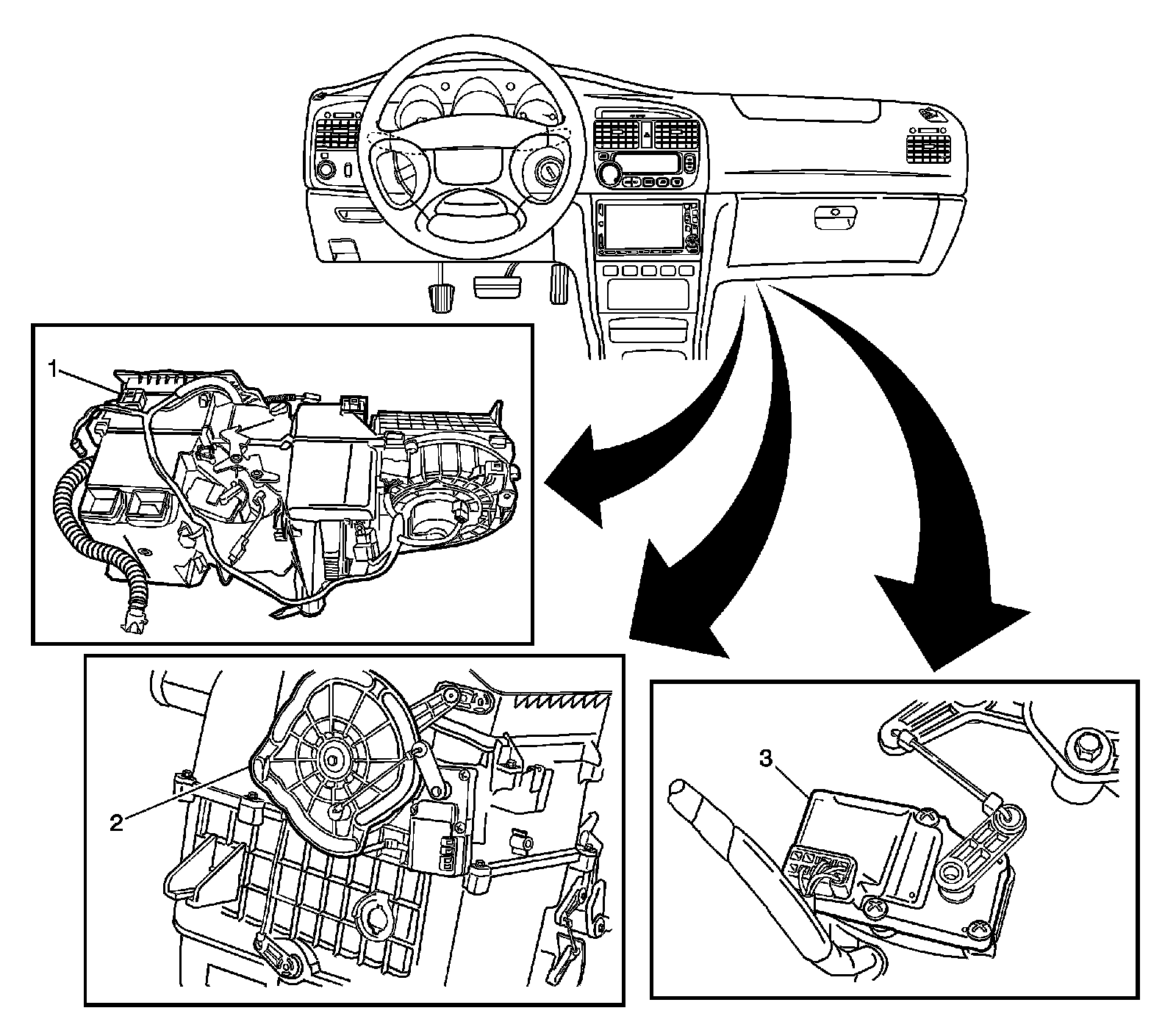

HVAC Components





1 - HVAC Module

2 - Mode Actuator

3 - Air Temperature Actuator Recirculation Actuator

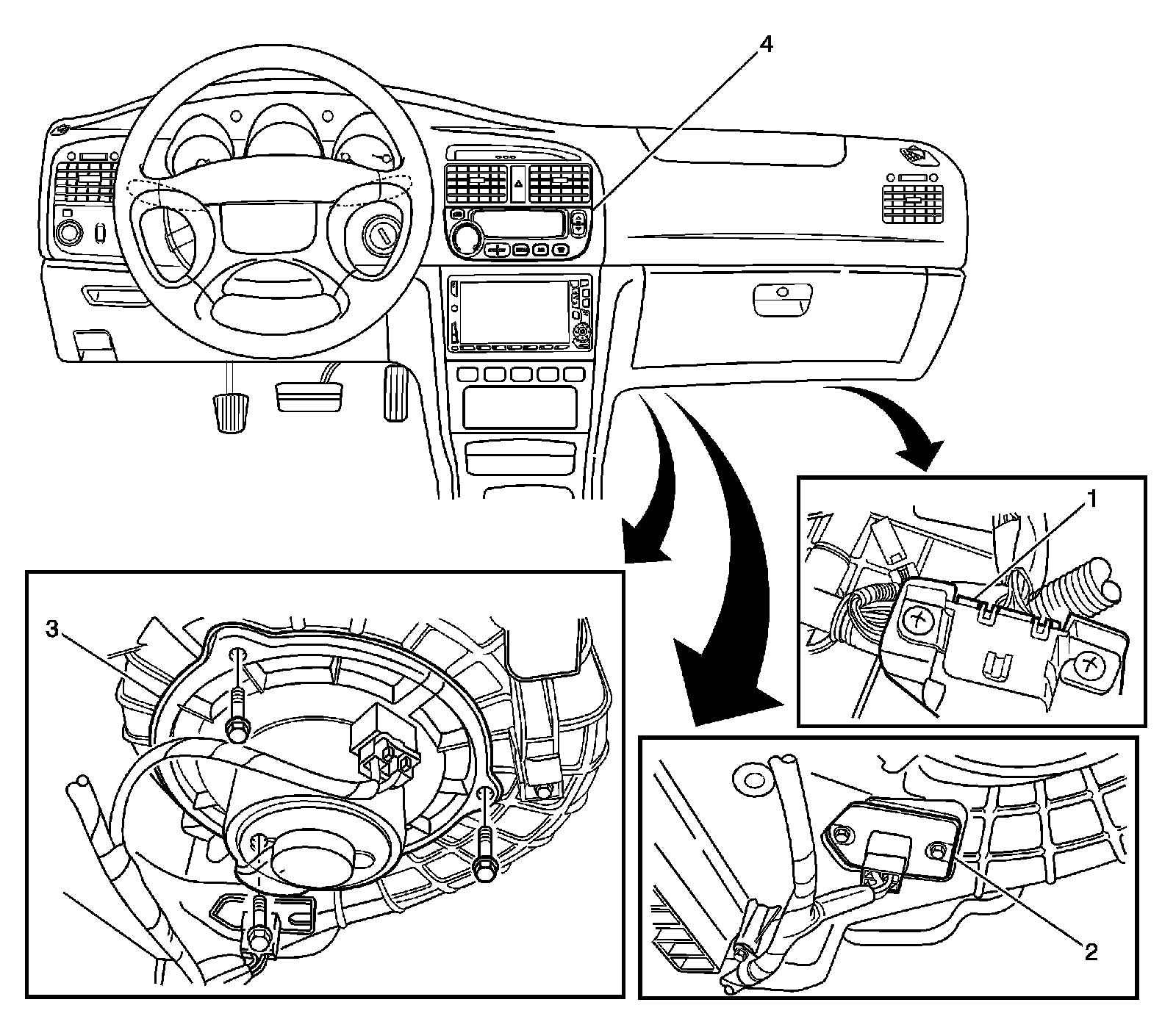

HVAC Components





1 - Inside Air Temperature Sensor

2 - Blower Control Module

3 - Blower Motor

4 - HVAC Control

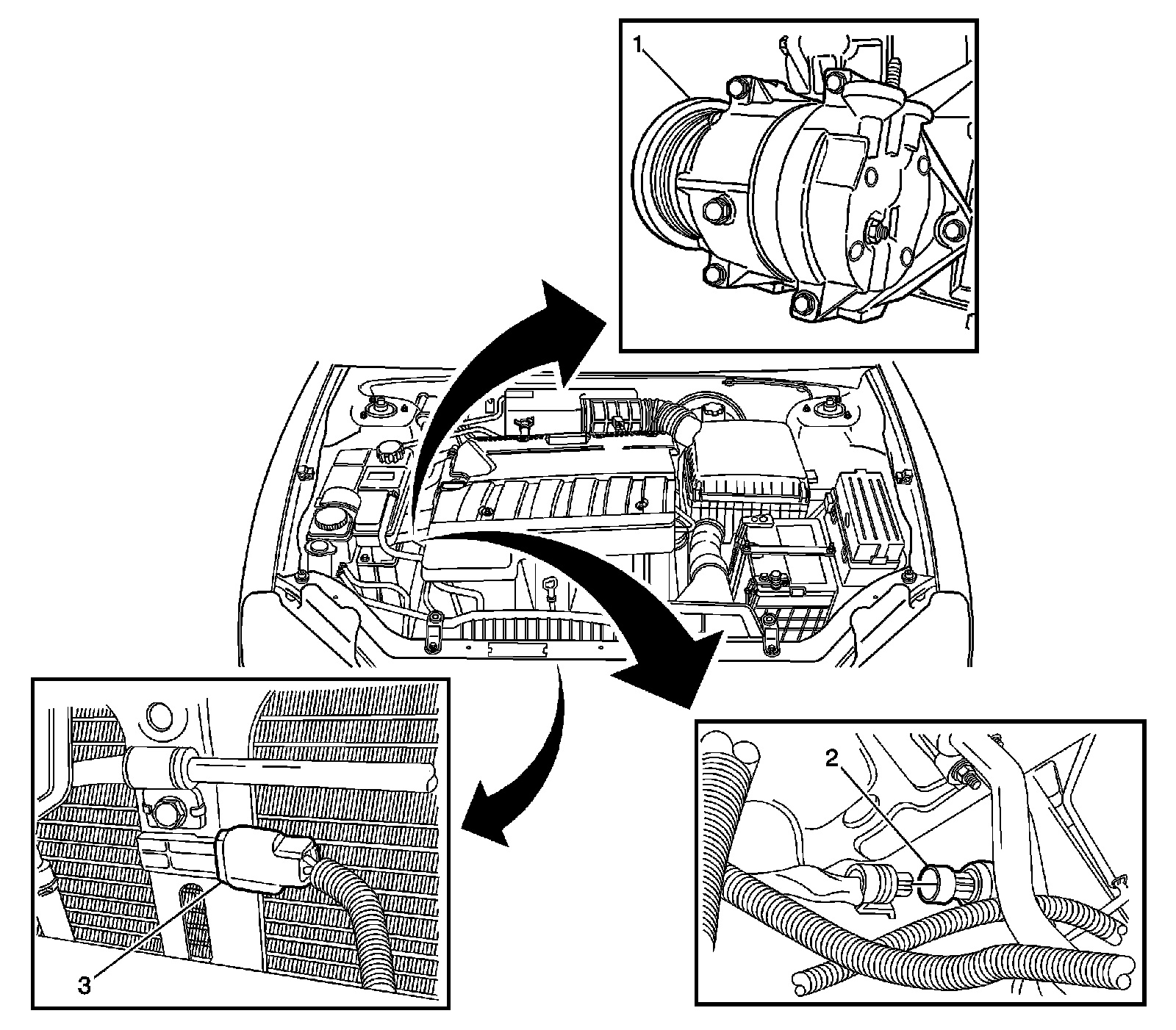

Compressor and A/C Refrigerent Pressure Sensor





1 - A/C Compressor/Clutch

2 - A/C Refrigerant Pressure Sensor

3 - Ambient Air Temperature Sensor
