Lighting Systems Component Views

Lighting Systems Component Views

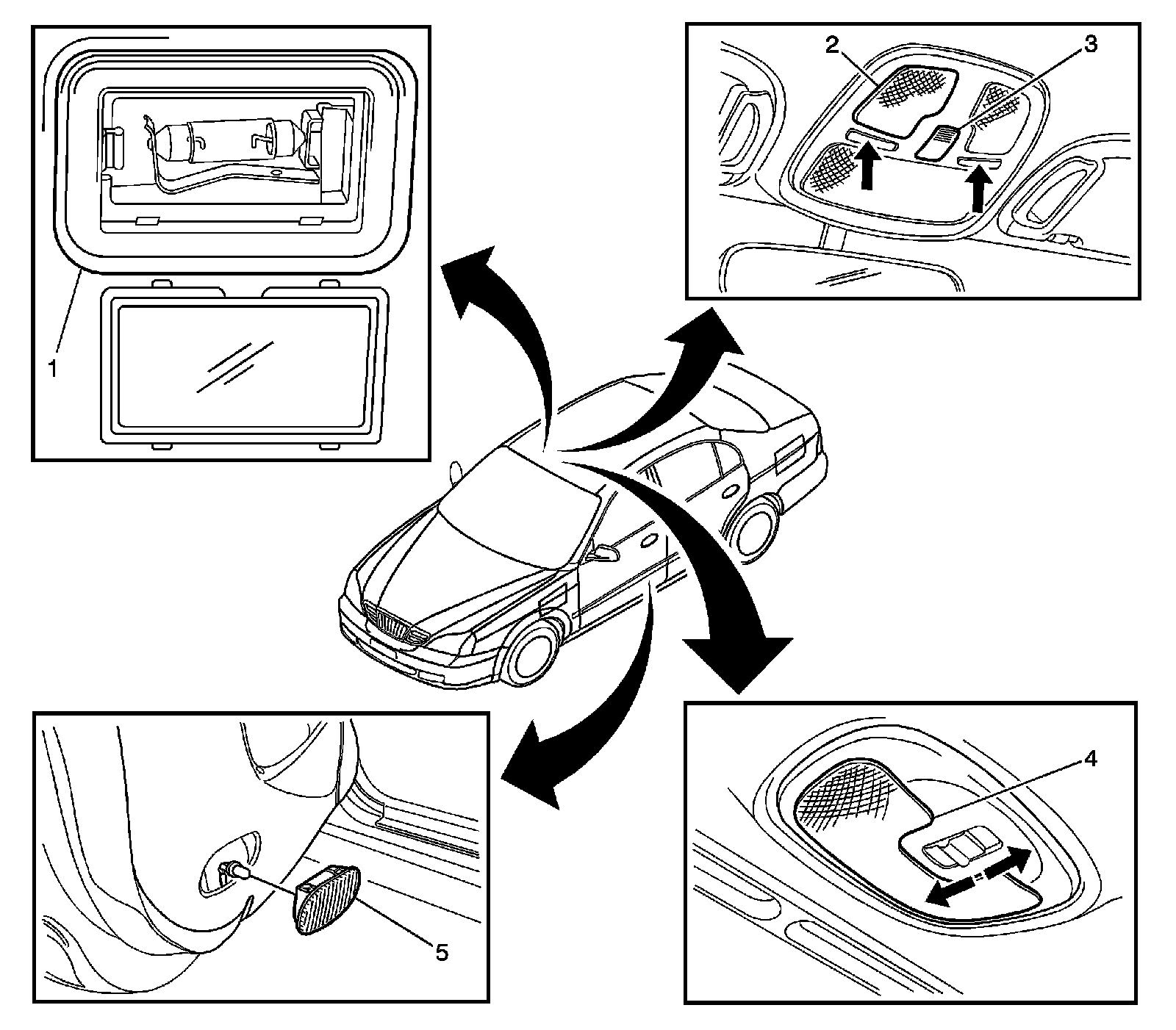

Interior Lighting





1 - Vanity Lamp

2 - Reading Lamp

3 - Sunroof Switch

4 - Dome Lamp

5 - Front Door Courtesy Lamp

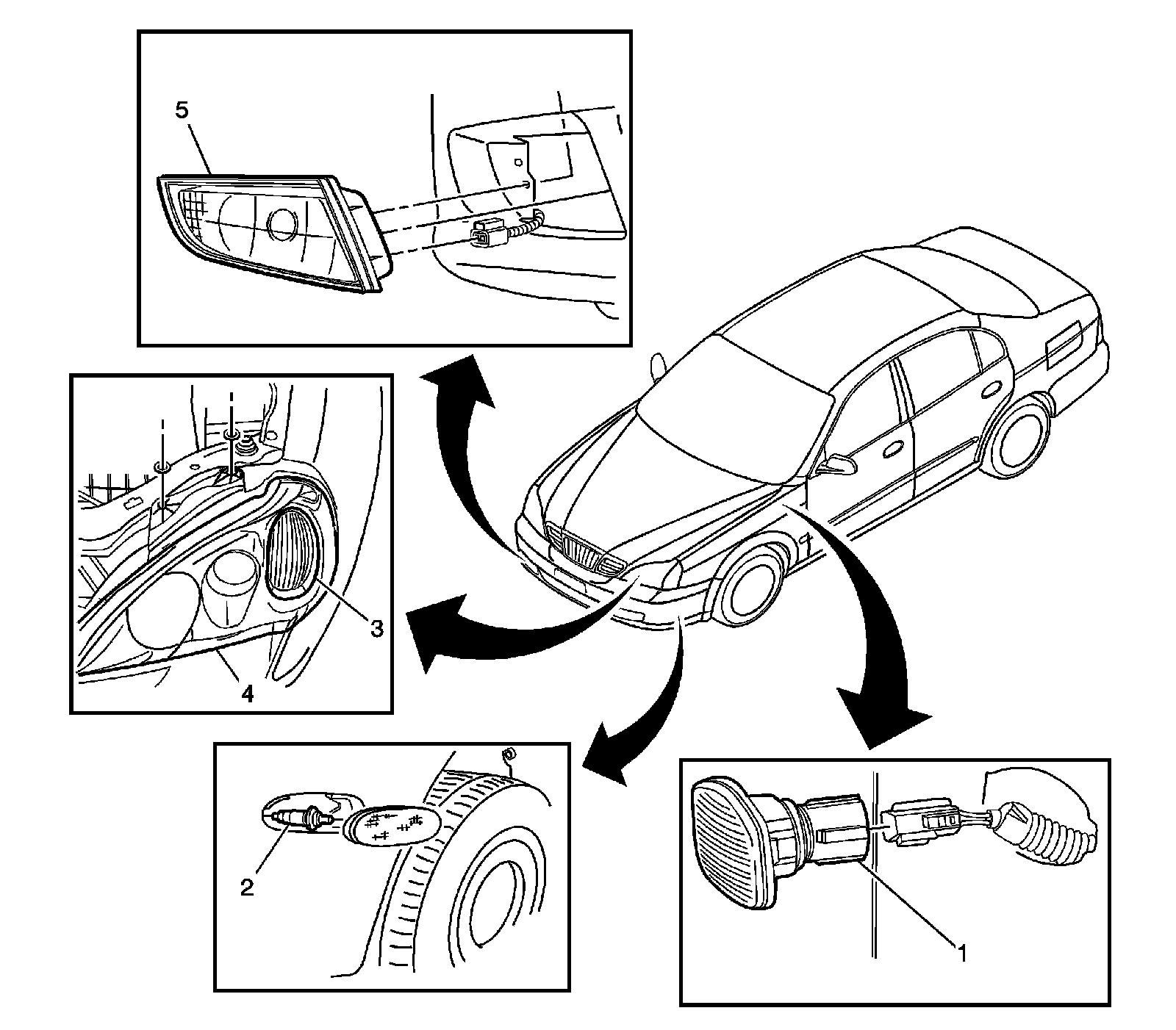

Front Exterior Lighting





1 - Repeater Lamp

2 - Side Marker Lamp

3 - Park/Turn Signal Lamp (North America)

3 - Turn Signal Lamp (Euro)

4 - Head Lamp

5 - Fog Lamp

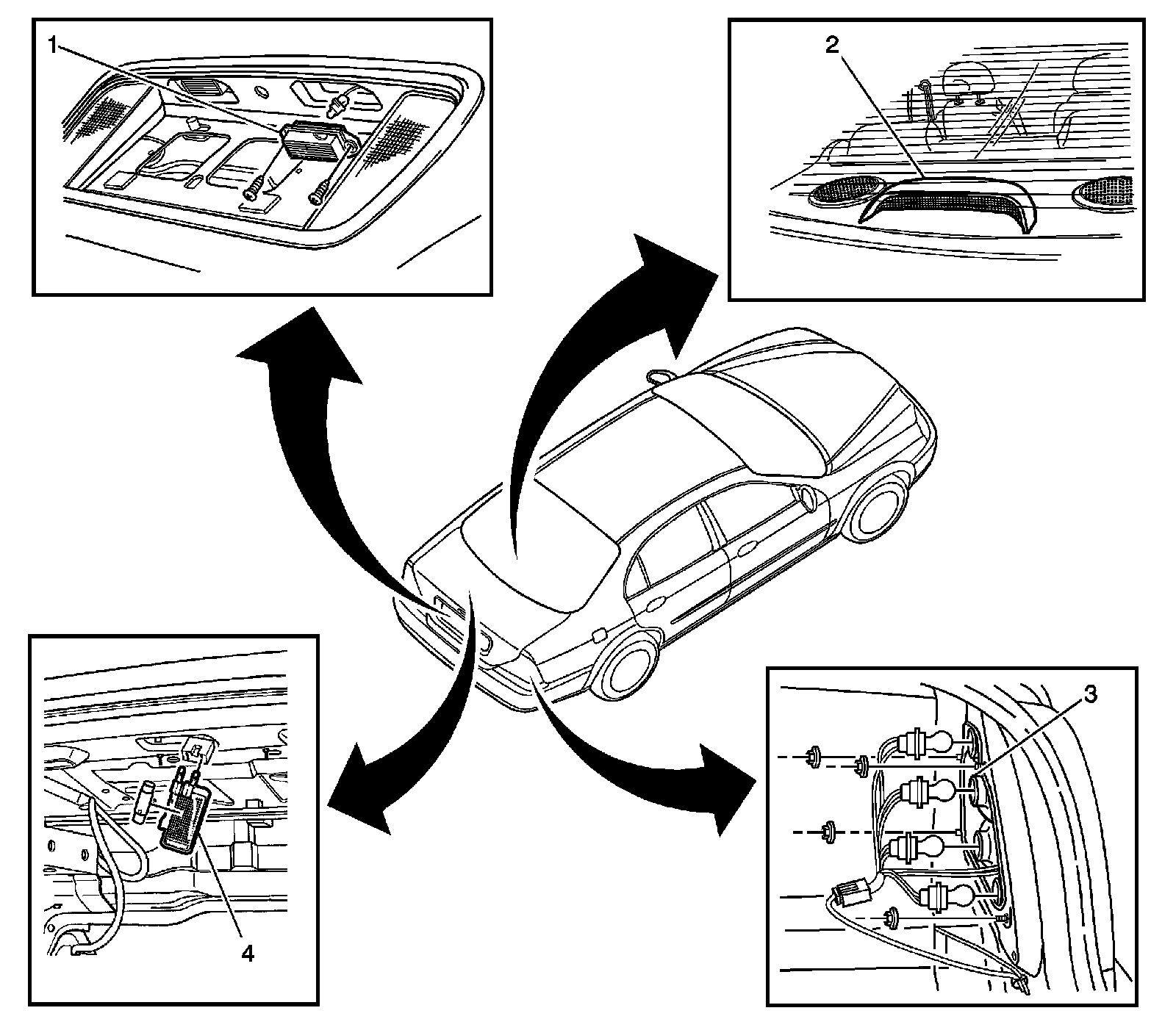

Tail Lamps, License Lamps and CHSML





1 - License Plate Lamp

2 - Center High Mounted Stop Lamp (CHMSL)

3 - Tail Lamp, Backup Lamp

4 - Rear Compartment Lamp

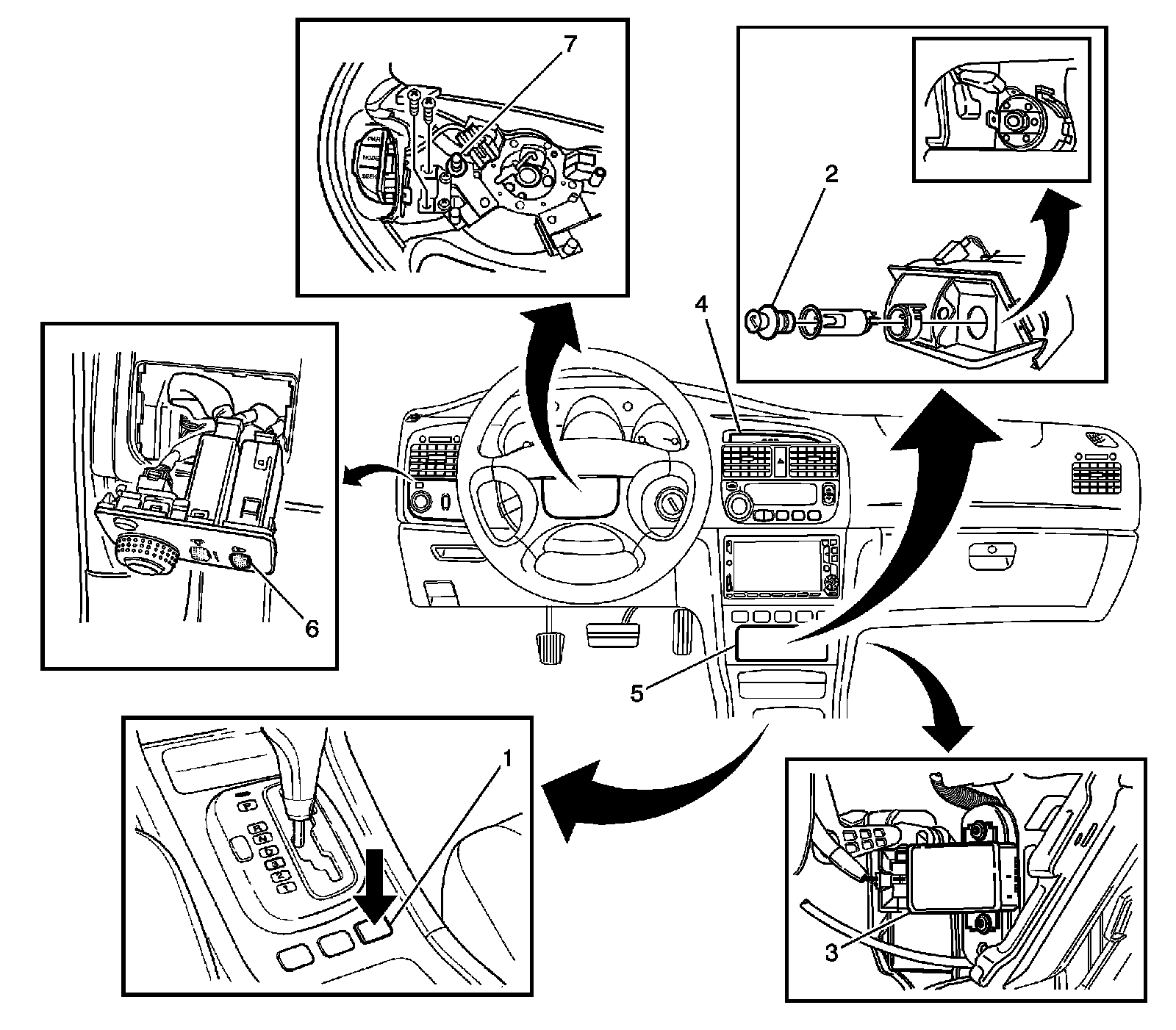

Instrument Panel Switches





1 - Shift Program Switch, Hold Mode Switch

2 - Cigar Lighter

3 - Daytime Running Lamp Module (w/DRL)

4 - Clock

5 - Auxiliary Power Outlet

6 - Dimmer Control Switch (I/P)/Headlamp Leveling Switch

7 - Horn Switch

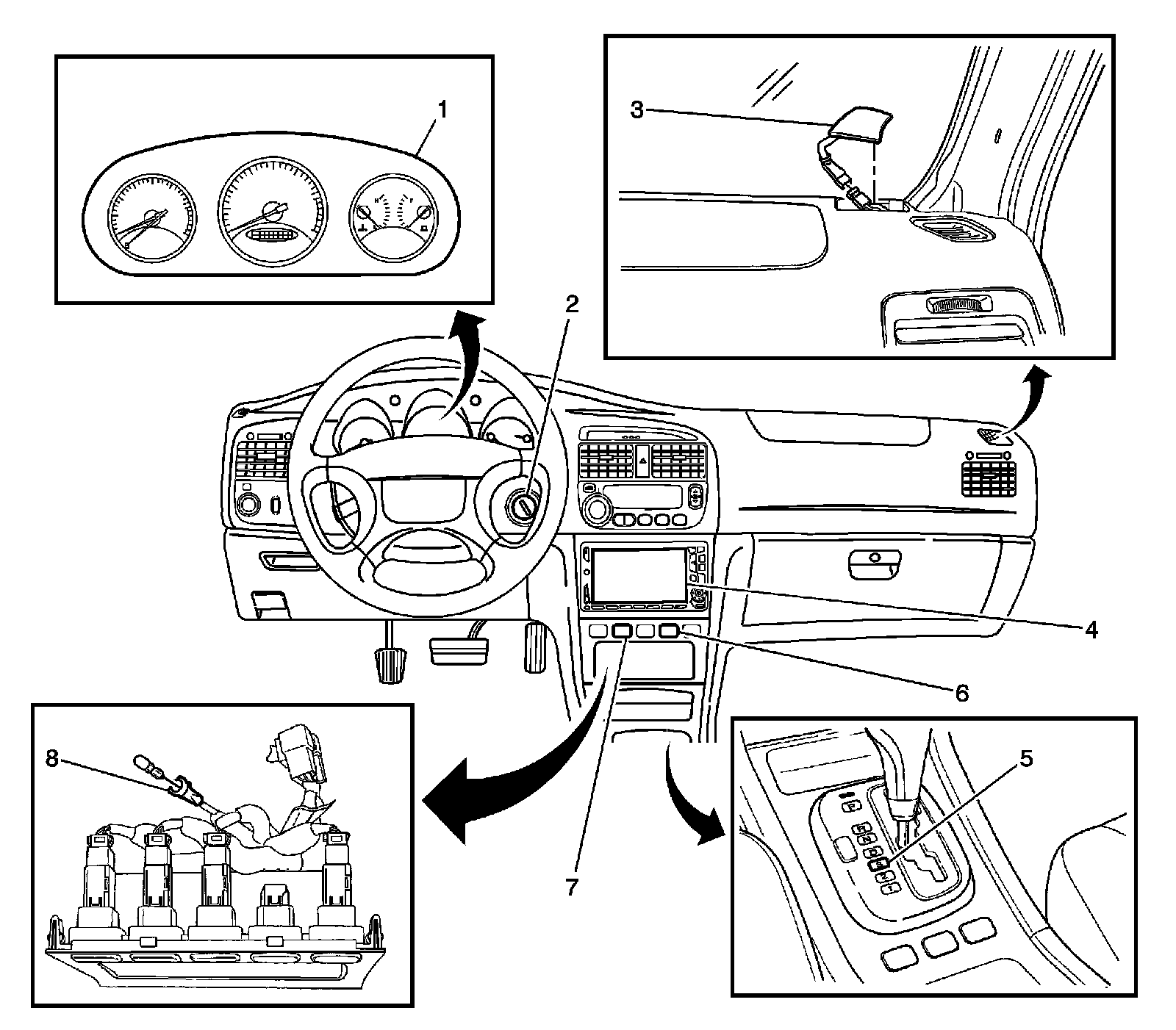

Instrument Panel





1 - Instrument Cluster

2 - Ignition Switch

3 - Speaker (Tweeter) Right Front (Left Similar)

4 - Radio

5 - Shift Indicator Lamp- Automatic Transmission

6 - Fog Lamp Switch- Rear (w/ Rear Fog Lamps)

7 - Fog Lamp Switch/Front

8 - Ashtray Lamp

9 - DRL Diode

Instrument Panel Multifunction Switches





1 - Traction Control Switch (TCS)

2 - Windshield Wiper/Washer Switch

3 - Hazard Switch

4 - I/P Compartment Lamp/Switch

5 - Headlamp Switch, Turn Signal/ Multifunction Switch
