Fuse Block: Locations

Electrical Center Identification Views

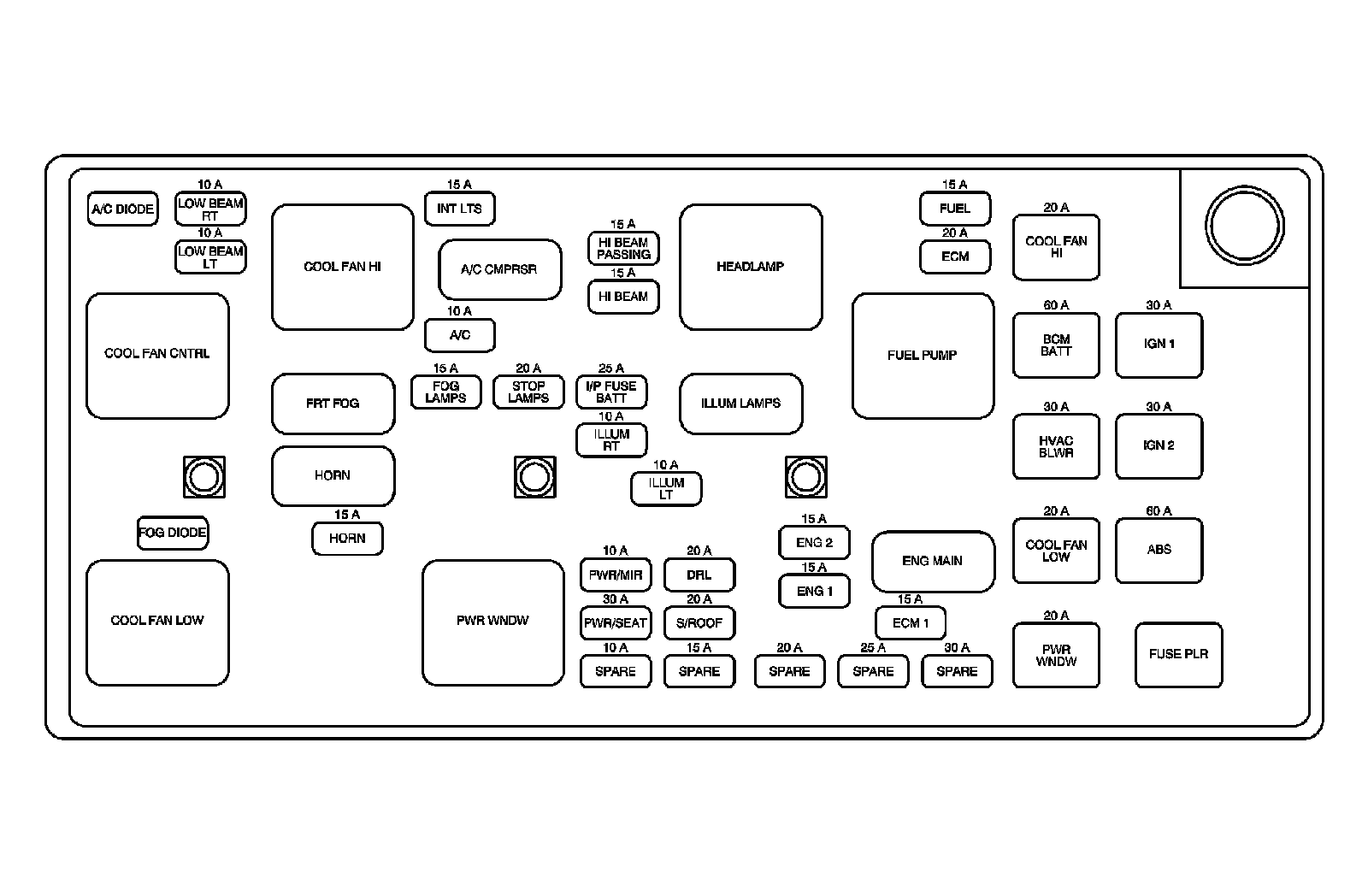

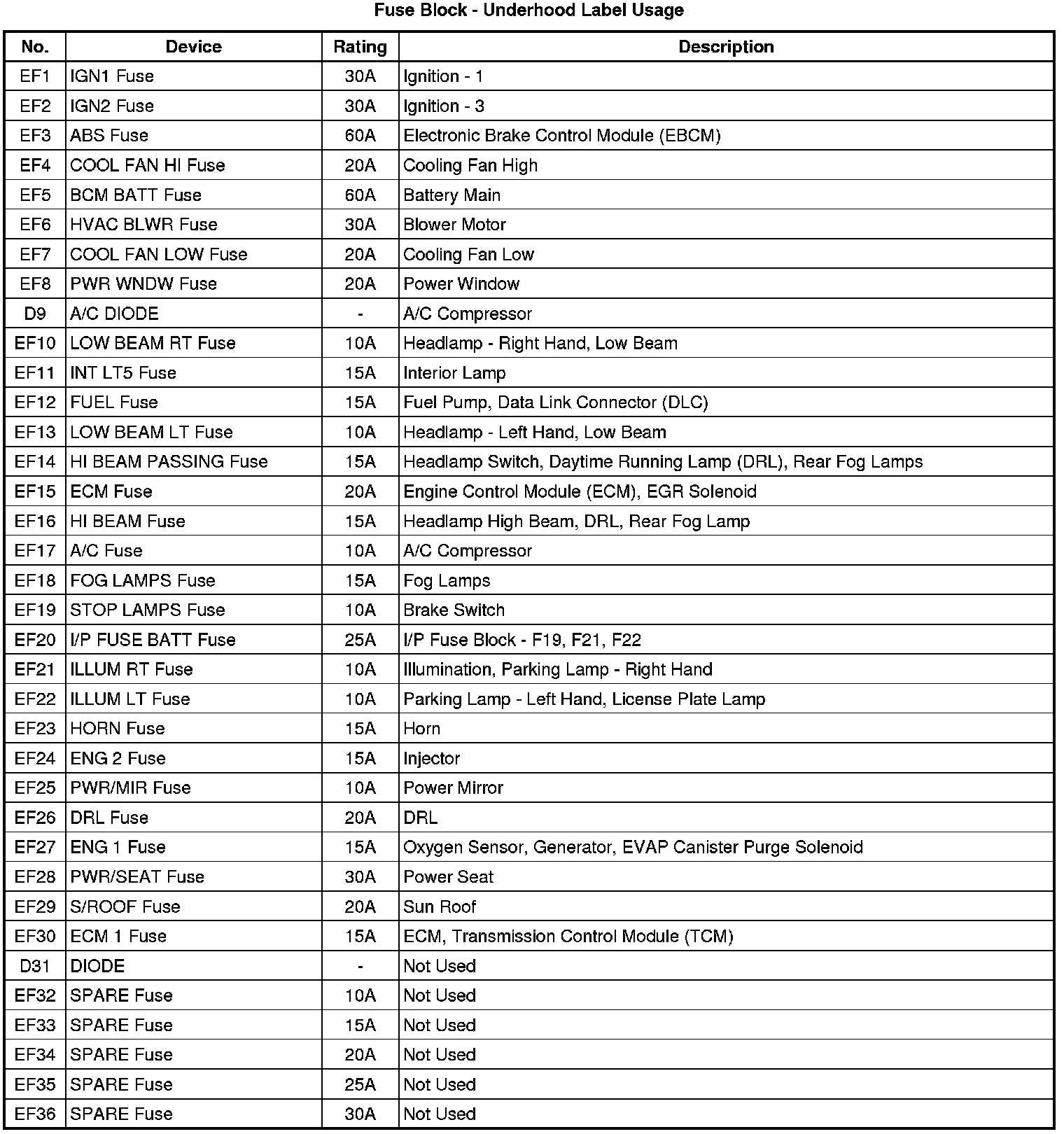

Fuse Block Underhood Label

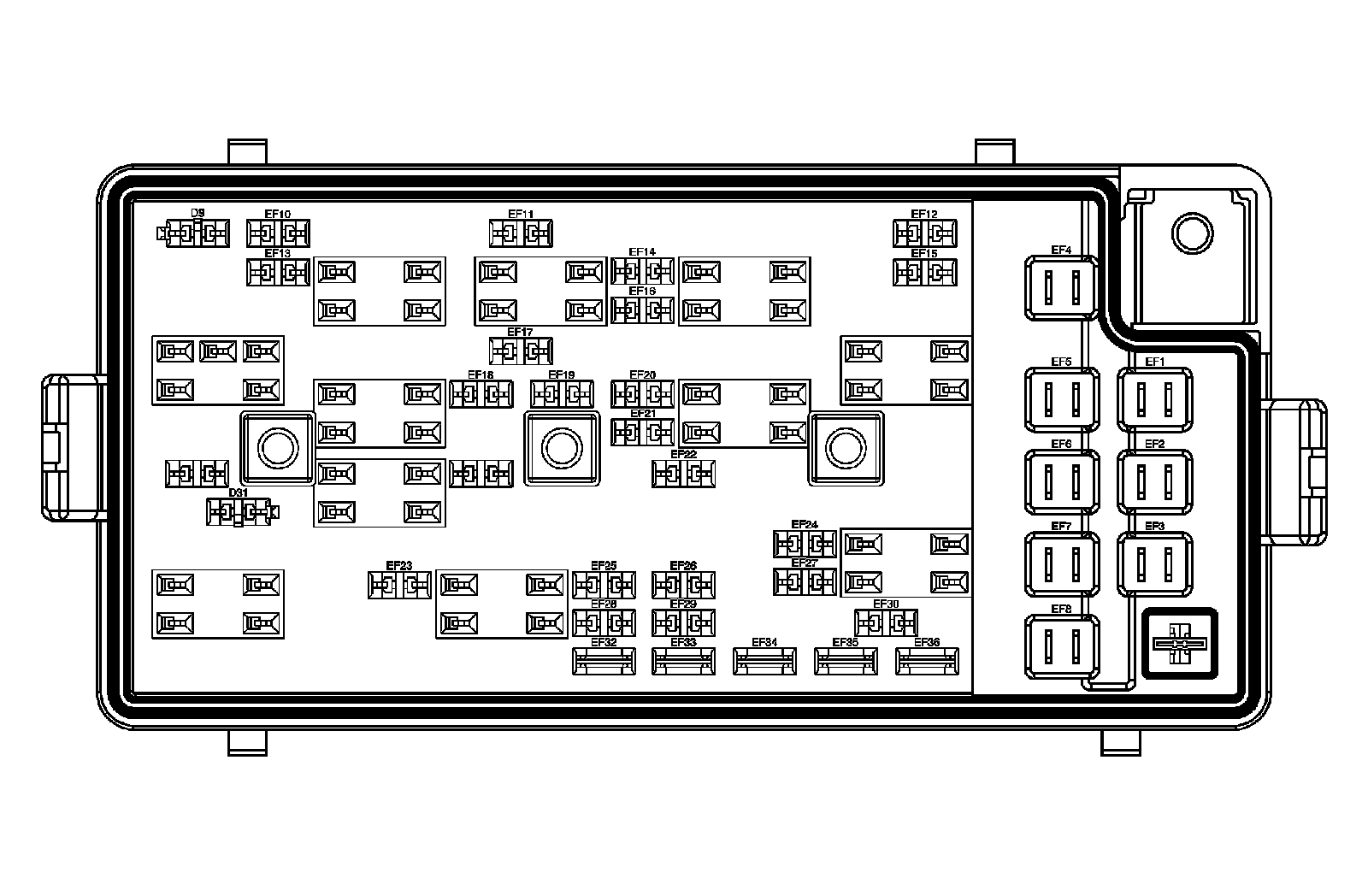

Fuse Block Underhood- Top View

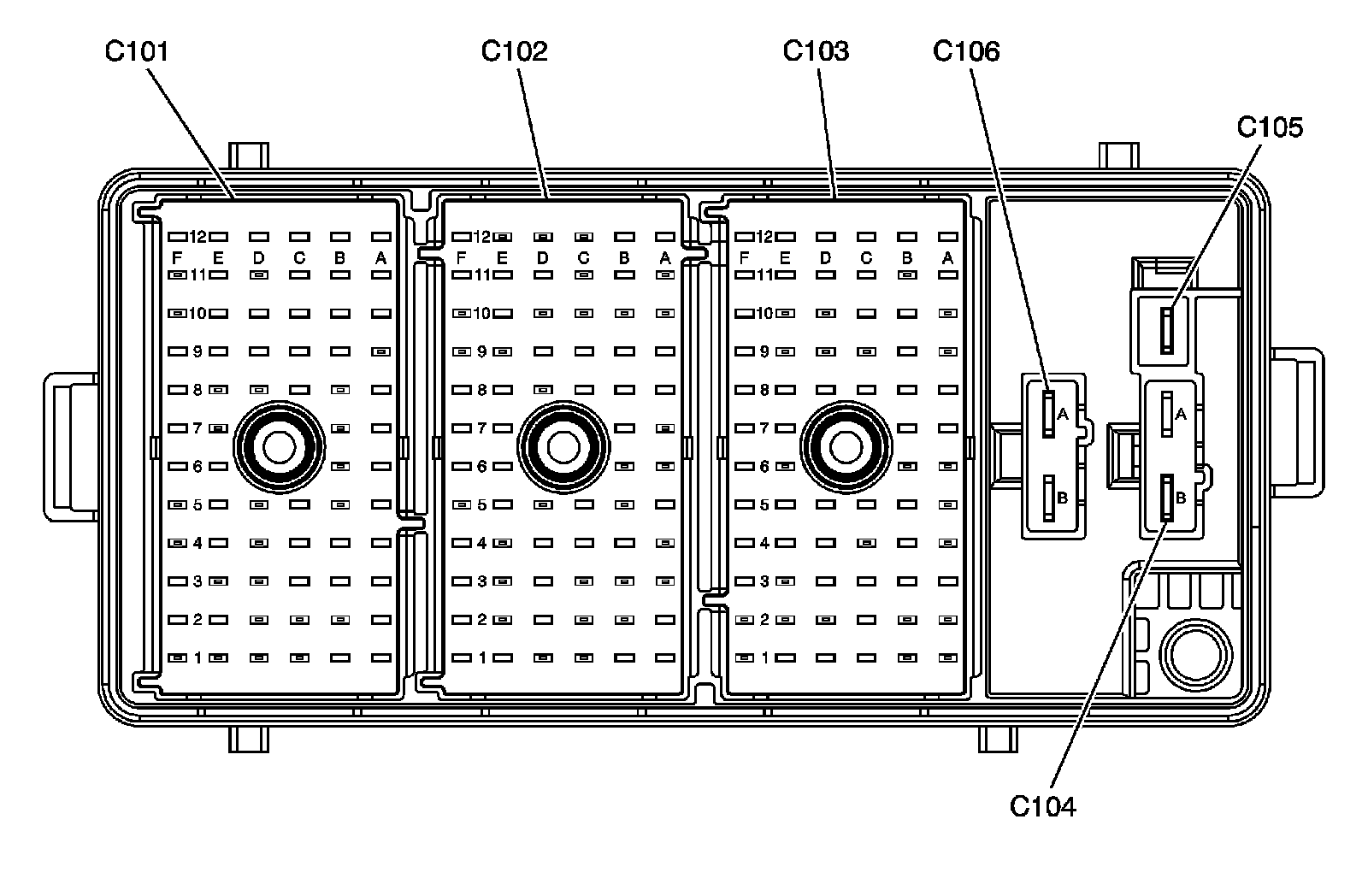

Fuse Block Underhood- Bottom View

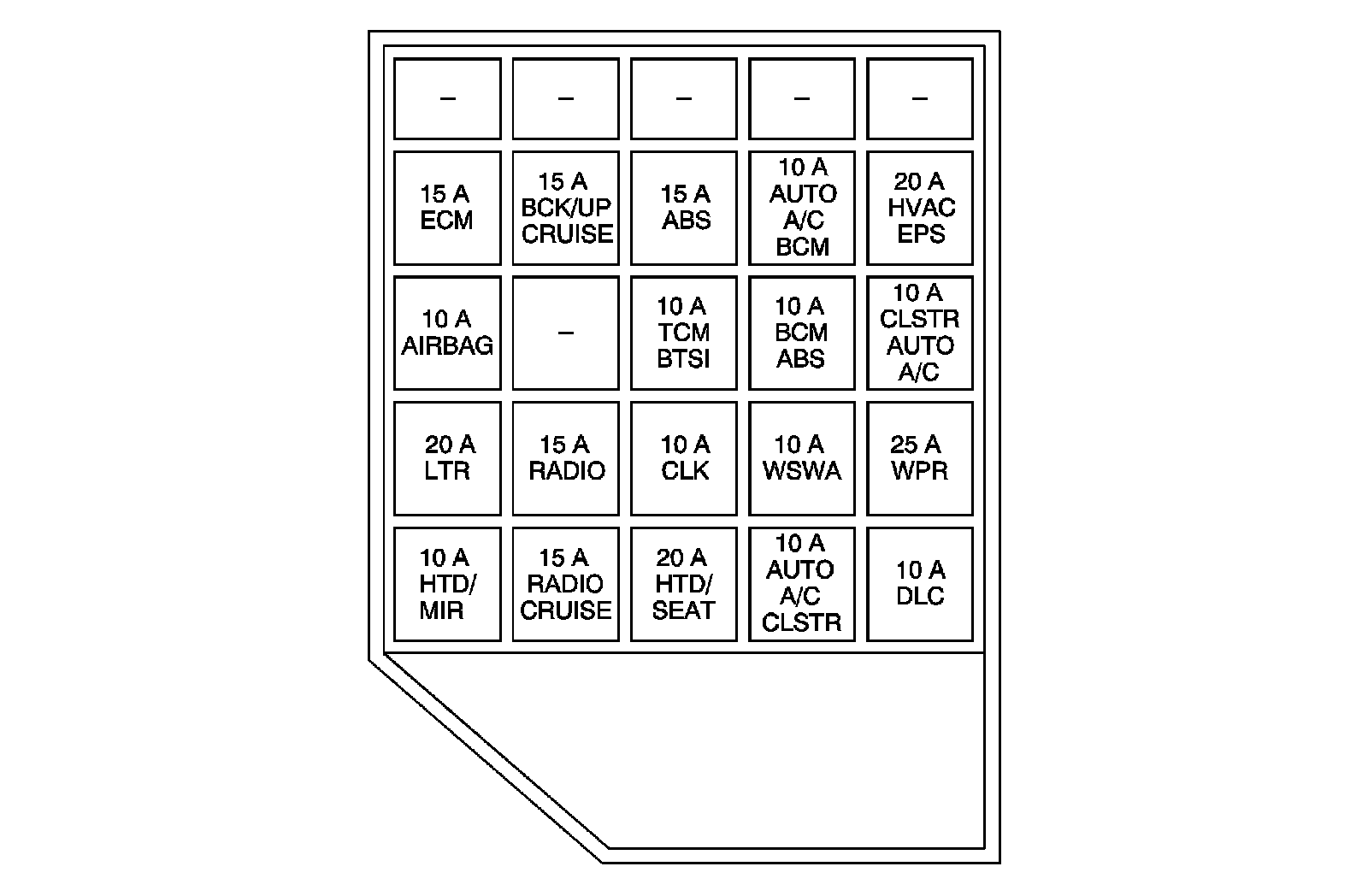

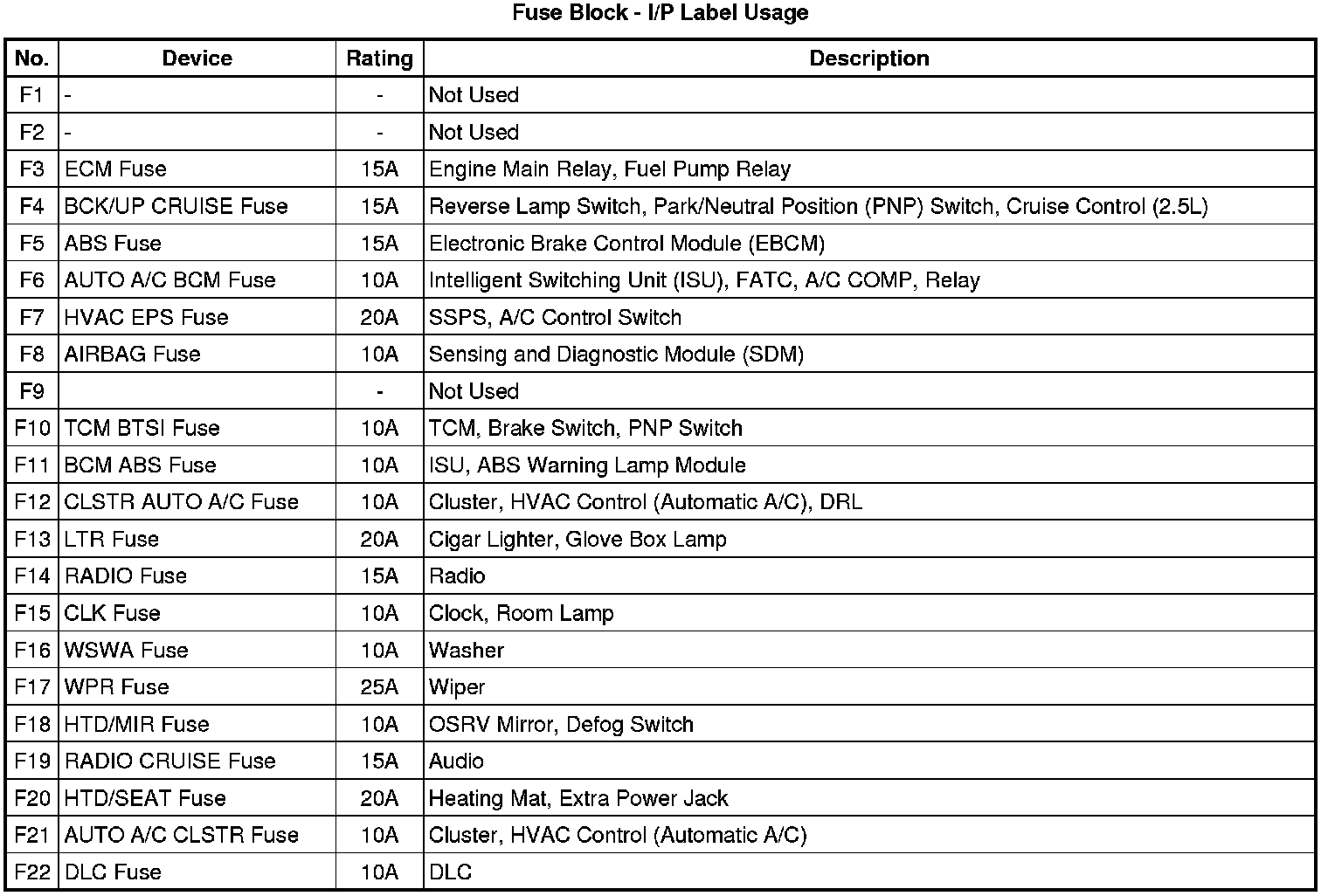

Fuse Block I/P Label

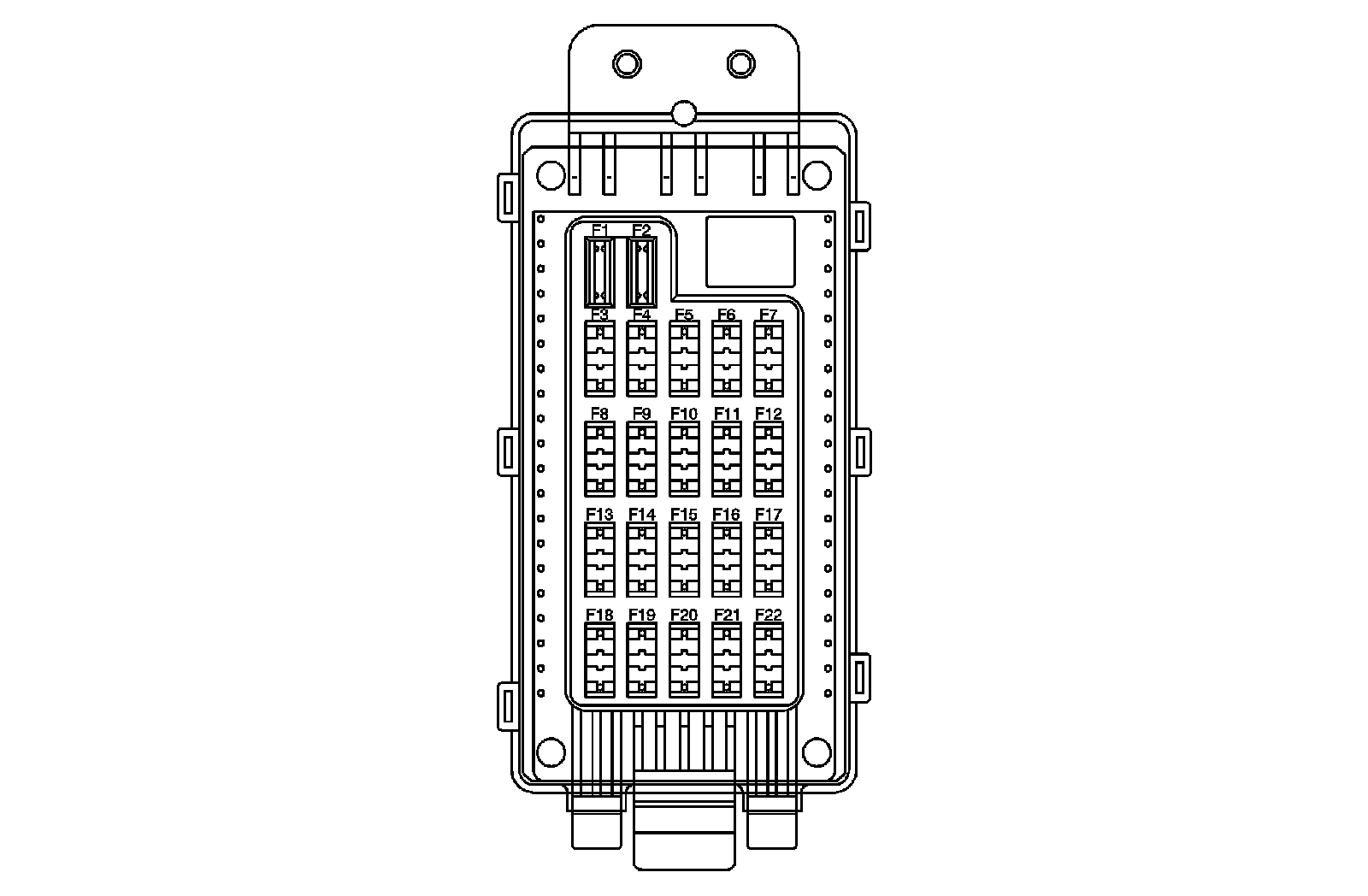

Fuse Block IP- Top View

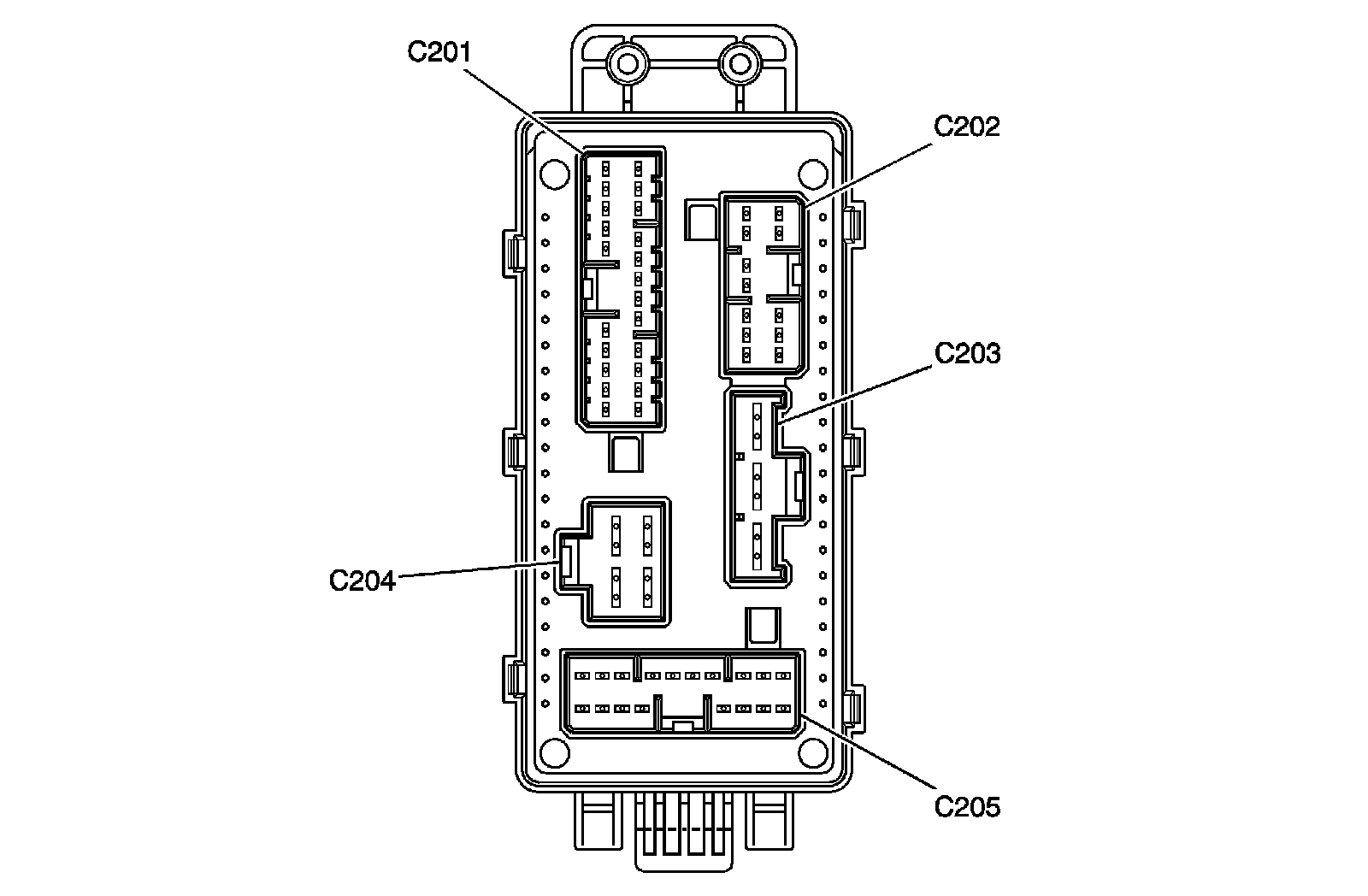

Fuse Block IP- Bottom View
